Leica Zeno FLX100 GPS Smart Antenna - Complete Set

Leica Zeno FLX100 GPS Smart Antenna - Complete Set

Not yet rated Add your review

Brand:: Leica
Article number:: 871195/915866
Availability:: Out of stock

With the Leica Zeno FLX100 Smart GPS, Zeno Tab2 and Pole you can access spatial data anywhere. Simplify your workflow and work in a new way!

SmartNet NRTK 1 year max. 60 uur:

Customer Care incl Updates:

+ -

Add to cart

Add to wishlist Add to comparison

Information
Reviews (0)

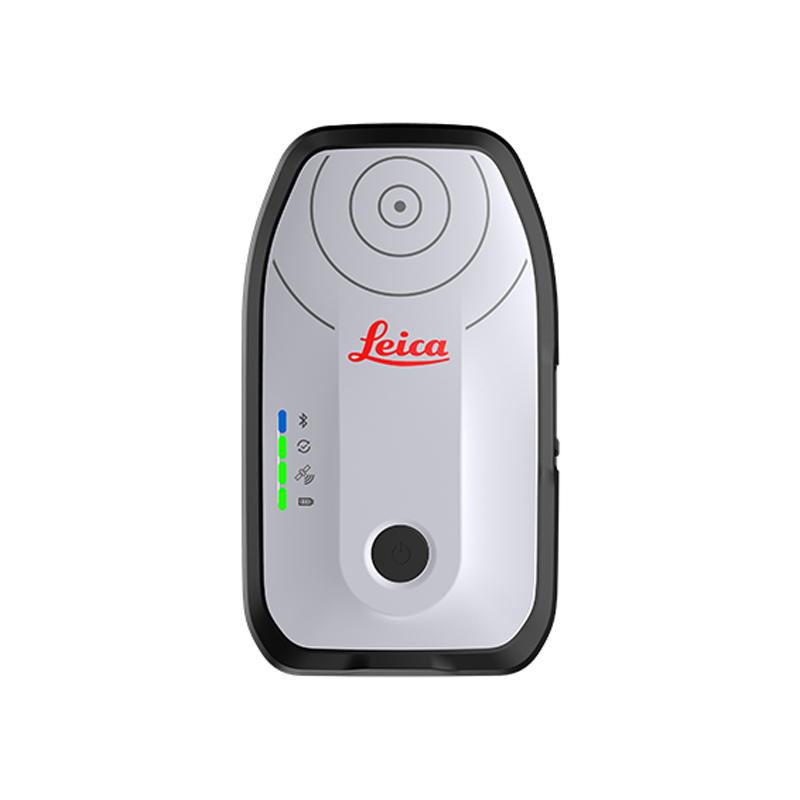

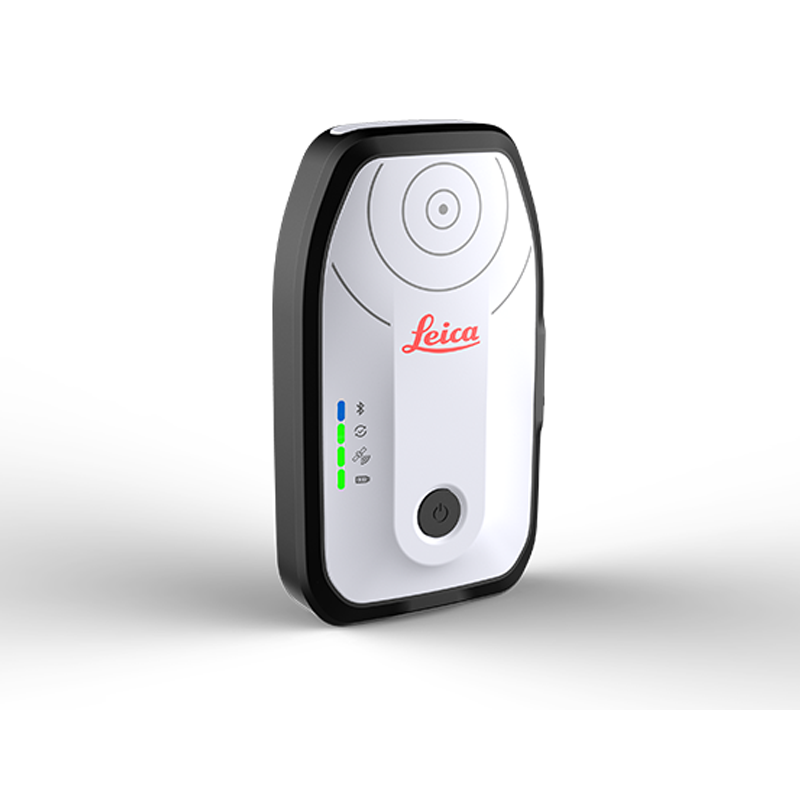

Leica Zeno FLX100 Smart GPS antenna

The Leica Zeno FLX100 smart antenna captures spatial data in a simple and flexible way allowing you the freedom to work how you want.

A universal handheld tray enables you to pair the FLX100 with your own smartphone or tablet. For higher accuracy data capture just use a survey pole leveraging HxGN SmartNet RTK technology.

Use Leica Zeno Mobile for the ultimate experience in professional data capture or pair with Leica Zeno Connect to enable high accuracy positioning in other data collection apps on various operating systems.

Accuracy

Centimetre level accuracy in an ultra-portable housing.

FLX - Flexibility

Setup – Create your own handheld solution or use on a pole.

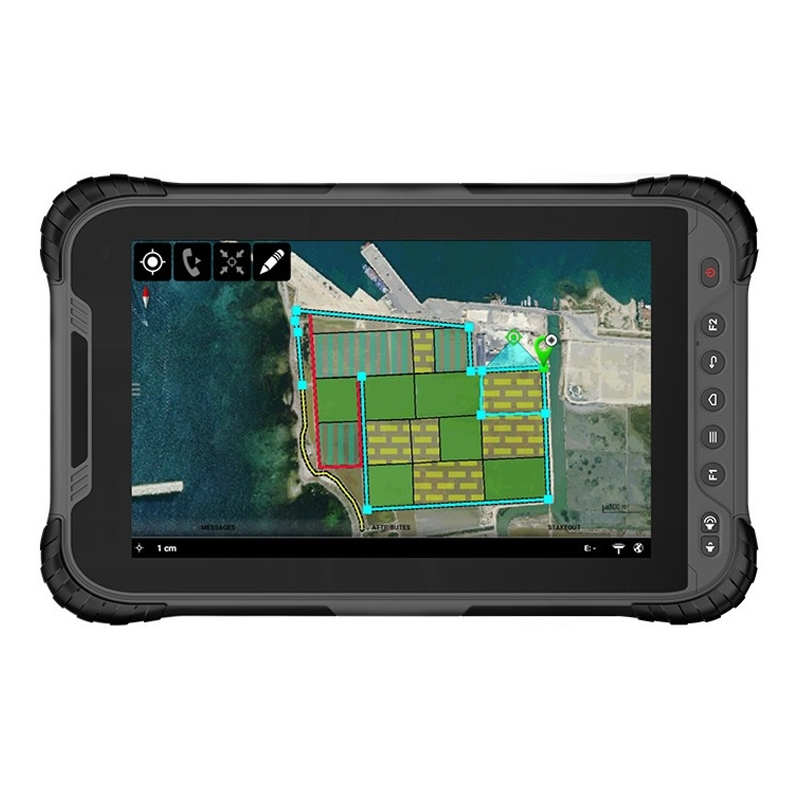

Devices – Compatible with Zeno Tab 2 and devices running Android and Windows.
Software – Use Leica Zeno Mobile or Zeno Connect for 3rd party software.

Trust

The FLX100 is packed with technology you can trust. It has been tested against the harshest environments, it is dust & water resistant and has over 20h of battery life. All combine to make you more efficient in the field.

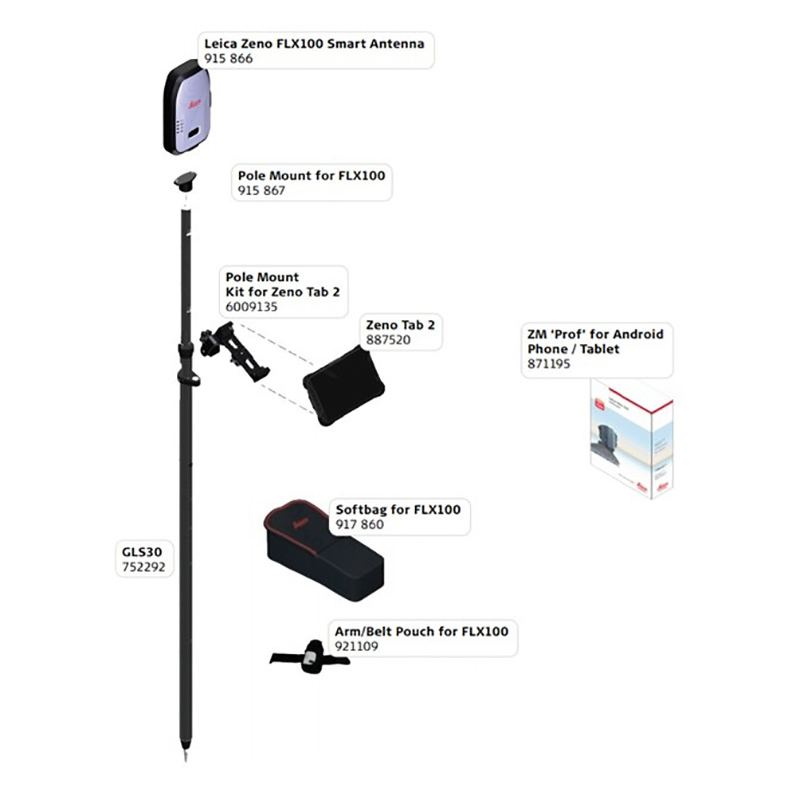

Complete Set:

Manufacturer Specs

GNSS TECHNOLOGY
Horizontal real-time accuracy	RTK (Multi-frequency): 2cm + 1ppm*
Vertical real-time accuracy	RTK (Multi-frequency): 3cm + 1ppm*
Post-processing accuracy static mode	Horizontal: 2cm + 1ppm* Vertical: 3cm + 1ppm*
Satellite signal tracking	GPS (L1 C/A, L2C) Glonass (L1OF, L2OF) BeiDou (B1l, B2l) Galileo (E1B/C, E5b) QZSS (L1C/A, L2C) SBAS: enabled through future firmware update
Number of channels	184 channels
Update rate	Up to 10 Hz (0.10 sec)
Supported operating systems	Android Windows
Real-time protocols	RTCM 3.0, RTCM 3.1, RTCM 3.2, RTCM 3.3, RTCM MSM
GNSS initialization	Cold Start: 24s Reaquisition: 2s
User interface	On/Off key Status indicator (LED): satellite tracking, corrections, Bluetooth communication and battery power
Communication port	Bluetooth LE 4.2
POWER MANAGEMENT
Battery Internal	(3.8 V / 6120 mAh)
Battery charging time	4 hours to full charge
Power	DC 5V/2A
Operating time	>20 hours
PHYSICAL SPECIFICATIONS
Weight and dimensions	313g, 136 mm x 78 mm x 30.5 mm
Proof against water, sand and dust	IP67
Operating/Storage temperature range	Operating: -40 to 65°C Storage: -40 to 80°C
Humidity	Rarely and slightly condensing. ISO 9022-12-04 (+65°C, 92%, 62h)
Drop 1.2m
Vibration	Withstands strong vibration. ISO 9022-36-05 (10-55 Hz / ±0.15 mm / 5 cycles)
