€595,00

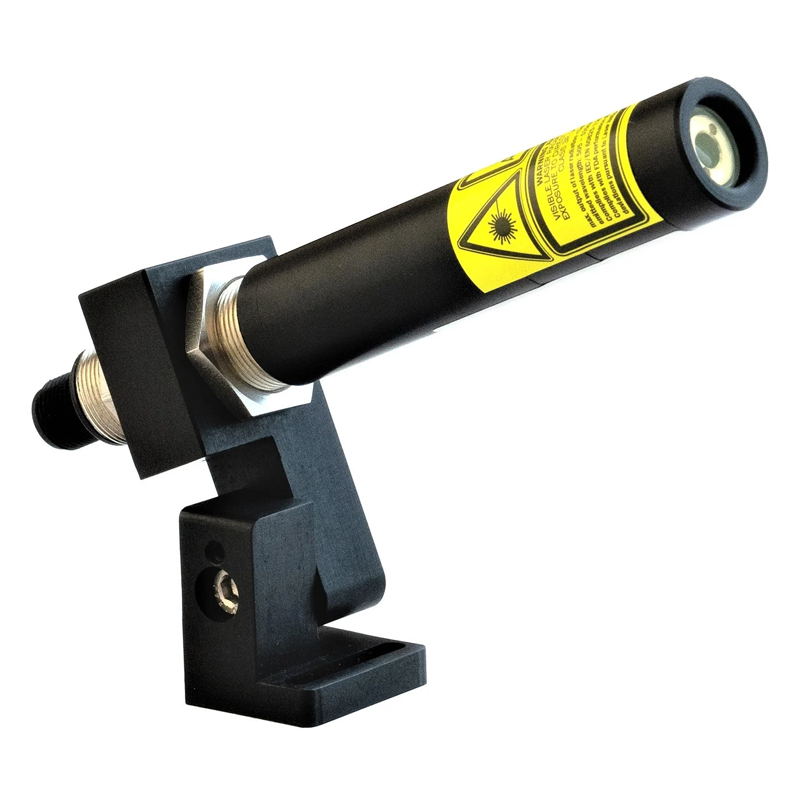

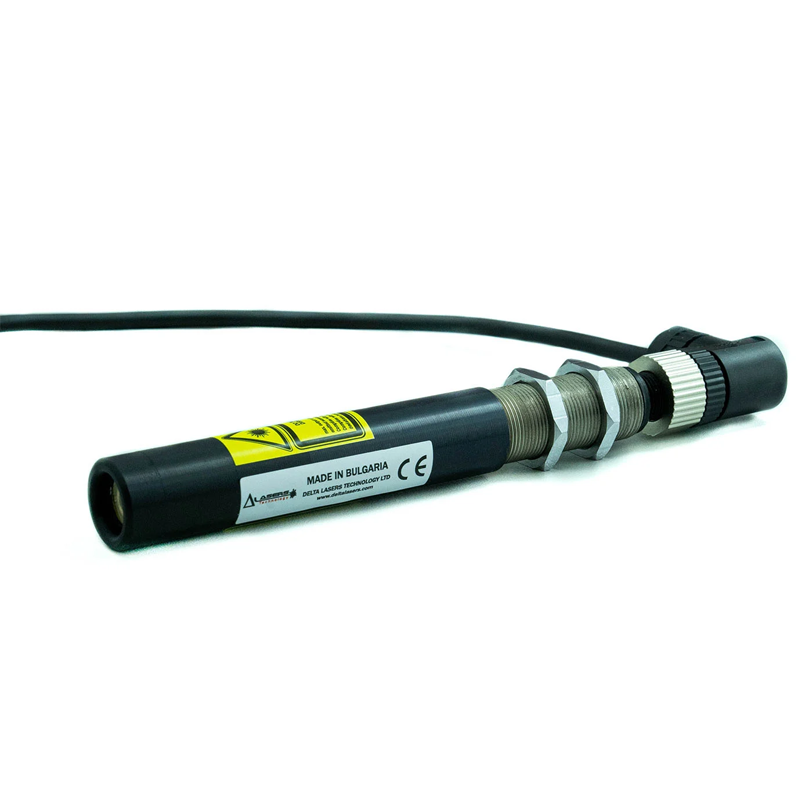

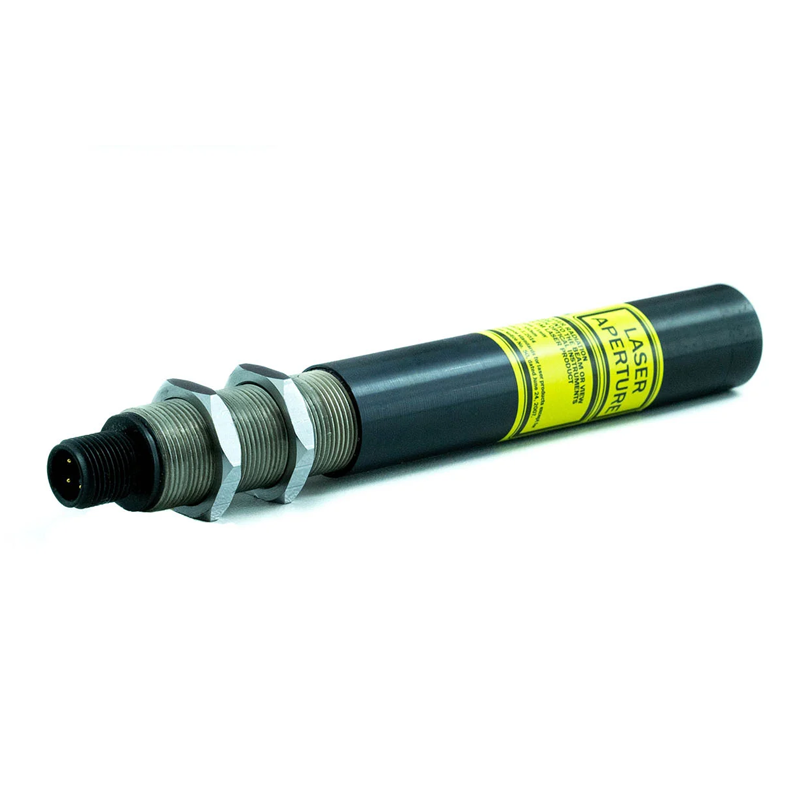

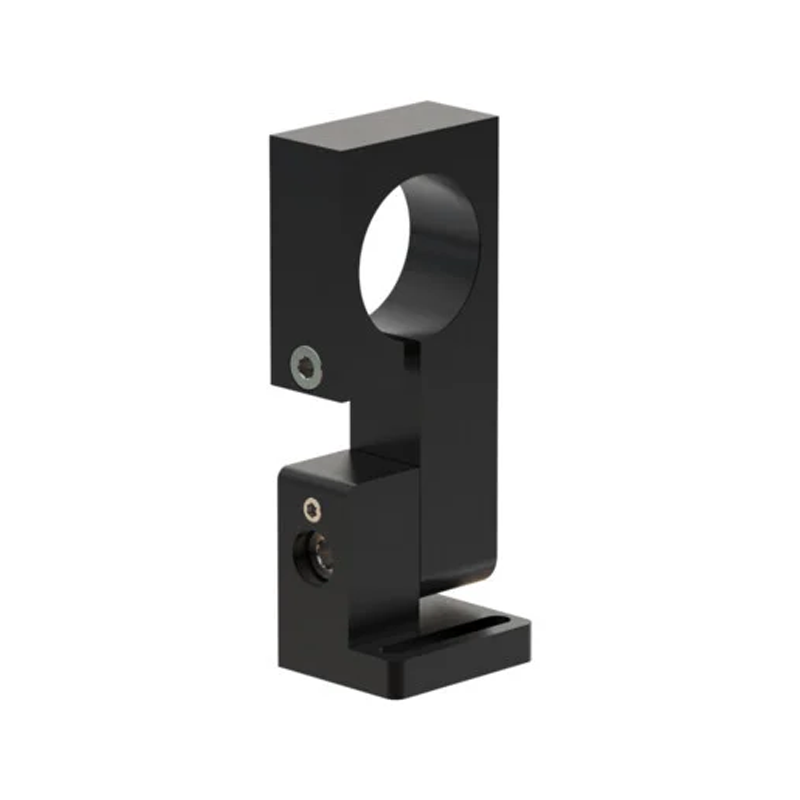

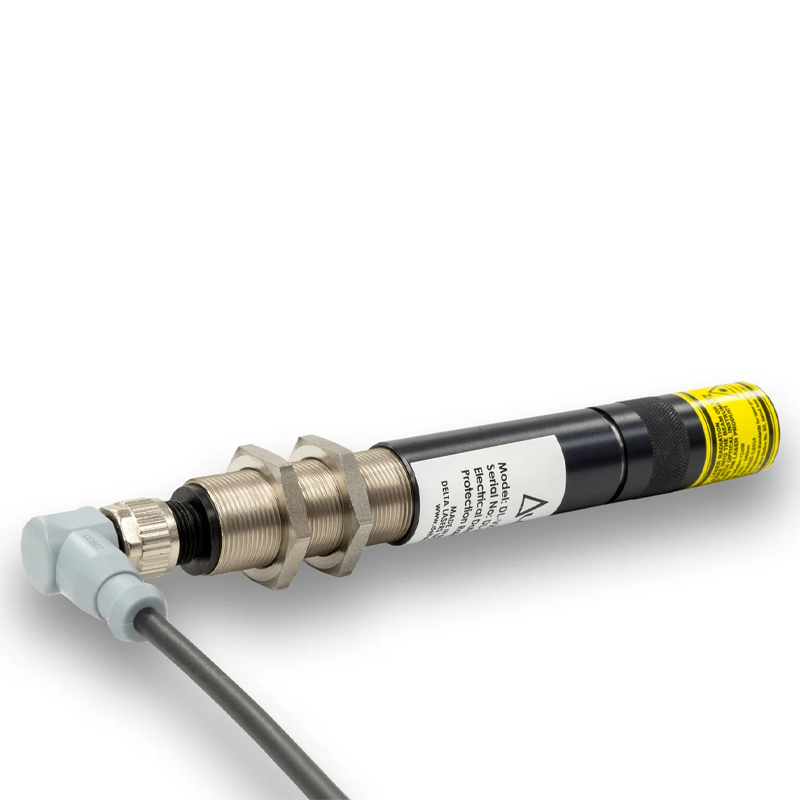

Delta VX Focusable point Laser Green 35mw, 520nm IP67 with cable or connector and including mounting bracket end power source
The lasers of the Delta VX Focusable series are intended for the meticulous positioning in applications for part processing.
This laser VX series is In an housing with green, red and IR wavelengths and laser head sizes Ø20mm with M18x1 treth. The lasers are housed in a solid Aluminumenclosure, which is easy to mount and adjust.
The laser electronics are available in different versions depending on the requirements. The Delta VXS series is offered with a digital modulation of up to 5 kHz and a temperature protection against overheating.
The enclosure is manufactured from stainless steel.
This laser series offers optical power in the range: 1mW ~ 200mW with a fixed focus. The power supply voltage of the laser is from 9V DC to 30VDC.
The consumption depends on the power of the laser. As standard, a 2.5m long cable is attached to the laser but it can be extended to 5m / 10m / 15m
Overvieuw:
• Solid industrial enclosure
• Degree of protection: IP67
• Wavelength: 510nm, 515nm, 520nm, 635nm, 650nm, 808nm ( depent of the output power)
• Power: up to 200mW
• Digital Modulation
• Thin & bright line
• Adjustable focusing (MF)
black anodized aluminium
• Precision optics
• Temperature protection
Delta VX laser:
Model: DL-VX
