Delta VX Series: green Industrial Focusable projection laser IP67

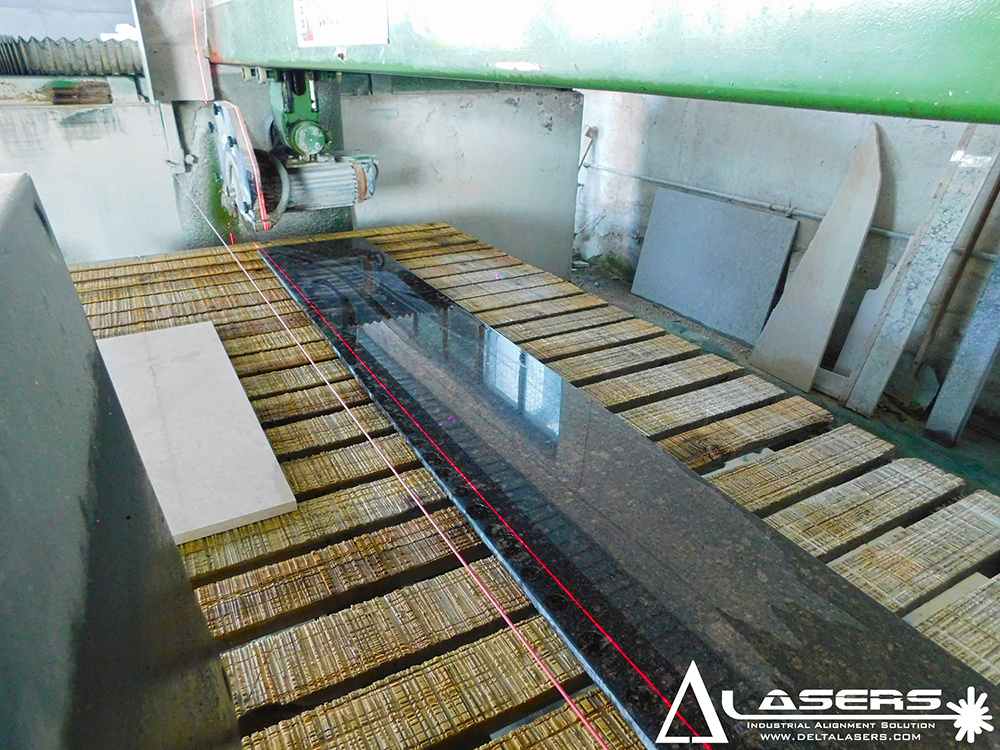

The lasers of the Delta VX Focusable series are intended for the meticulous positioning in applications for part processing.

This laser VX series is In an aluminium chrome-plated housing with green, red and IR wavelengths and laser head sizes Ø20mm with M18x1 treth. The lasers are housed in a solid Aluminumenclosure, which is easy to mount and adjust.

The laser electronics are available in different versions depending on the requirements. The Delta VX series is offered with a digital modulation of up to 5 kHz and a temperature protection against overheating.

The enclosure is manufactured from anodized aluminum chrome-plated.

This laser series offers optical power in the range: 1mW ~ 200mW with a fixed focus. The power supply voltage of the laser is from 9V DC to 30VDC.

The consumption depends on the power of the laser. As standard, a 2.5m long cable is attached to the laser but it can be extended to 5m / 10m / 15m

Overvieuw:

• Solid industrial enclosure
• Degree of protection: IP67
• Wavelength: 510nm, 515nm, 520nm, 635nm, 650nm, 808nm ( depent of the output power)
• Power: up to 200mW
• Digital Modulation
• Thin & bright line
• Variable focusing
• Precision optics
• Temperature protection

Delta VX laser:

Model: DL-VX

• Wavelength: 520nm
• Optical Power: 10mW till 200mw
• Conection:cable (P1) or 4-pin connector (P2)
• length: 2,5m( standard) option-5m-10m or 15 meter cable
• Projection profile: point (B1), line (B2), cross (B3)
• Line Angle: 30°,60°, (90° or 110°standard)
• Variable focusing
• IP67
• Power Supply 9VDC-30VDC
• Length: 143 mm, total length including connector 175 mm
• diameter: 20mm
• (CL) 90° – 110° (gaussian linear profile),
• (PL) homogeneous precise line optics with fan angle – 30°, 45°, 60°, 90°, 110°
