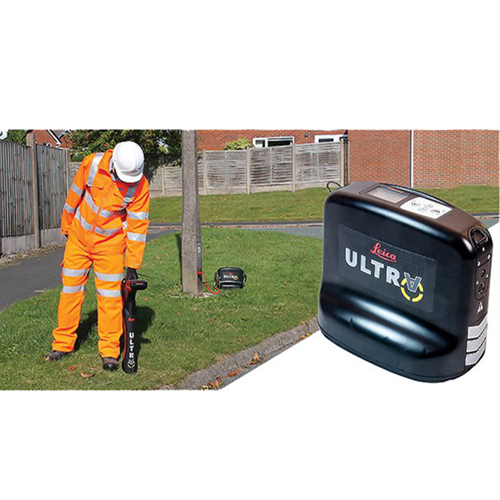

Ultra Standaard en Advanced Signaal Transmitters

Operating Frequencies (factory enabled) 512 Hz, 3140 Hz, 8192 Hz, 32768 Hz, 83.1 kHz, 200 kHz
(12 frequencies user configurable)
Output Power Control 5 levels
Induction (Max) 3 Watt
Direct Connection (Max) 5 or 12 Watt (model specific) when connected to a buried service with an
impedance of 100 Ohms
Battery Type 10 x D alkaline (IEC LR20), not supplied
Battery Life Up to 100 hours intermittent use (level 2 output at 20° C / 68° F)
Shutdown Selectable auto shutdown after 1, 2, 3, 4, 5, 6, 7 or 8 hours
Operating Temperature Range -20° C to 50° C (-4° F to 122° F)
Dimensions 255 mm (H) x 190 mm (D) x 305 mm (W) - (10“ H x 12“ L x 8“ W)
Weight 3.5 Kg (8 lbs) including batteries
