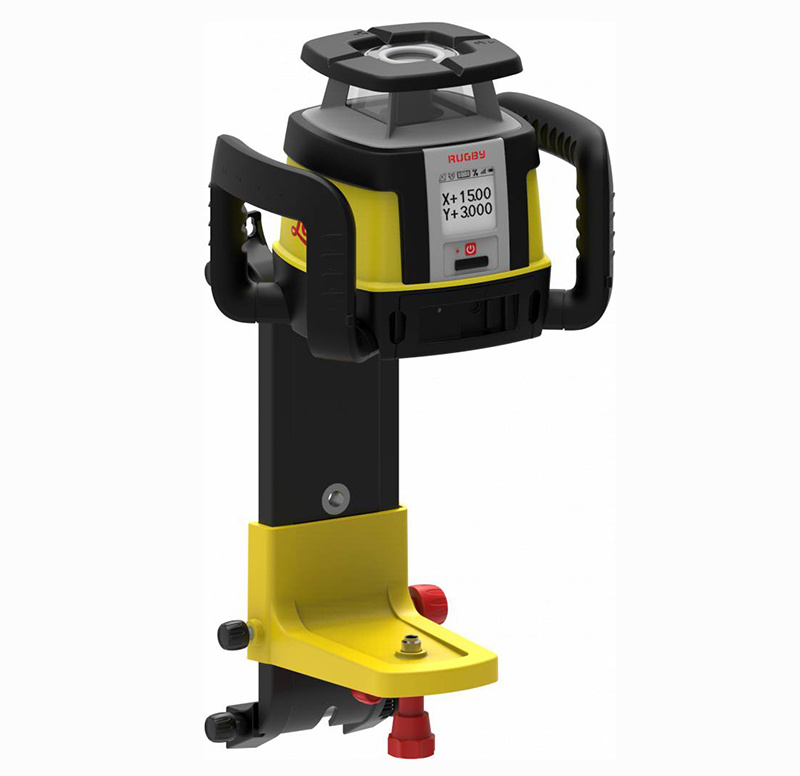

Leica Rugby CLH& CLX300 software incl. Combo receiver

Maximum flexibility and the ability to quickly adapt to tasks are vital to your projects. With the Leica Rugby CLA and CLH you can upgrade your lasers and adapt them to the requirements of your application. You pay for the functionality you need to do your job, not for extra features you don't use. With additional professional services such as repair and calibration, the exceptional performance of your laser will be maintained for many years.

Simplicity at its best

Leica Rugby CLH simplicity offers effortless use of all the capabilities of the laser system. It saves time by simplifying processes and makes you much more productive. The robust design ensures stable measurements and accuracy in your daily work. These upgrade options maximise performance in all levelling applications.

(2 year tipping warranty)
The Leica Rugby CLH and CLA series are built for rugged construction. The quality of these rugged construction lasers is so good that Leica can give a fall-back guarantee on the entire interior.This means that should the laser fall apart completely, leica will replace the level mechanism and the interior free of charge, leaving you with only the cost of the housing or battery, etc. Leica also gives a lifetime warranty on material and production faults.

(5 Year Warranty)

The Leica Rugby CLH and CLA series can easily survive a 1.5m drop. After this fall (if it does not accidentally hit a point with the glass), work can continue as usual. Should any deviation occur after a fall, Leica will calibrate the construction laser free of charge for 5 years with the unique PROTECT by Leica warranty.

Base unit - Use it as an easy one button horizontal laser for levelling concrete and formwork, checking and transferring heights and for ground leveling applications.

Upgrade : CLX 300 - this upgrade adds +-8 % semi-automatic single-axis levelling functionality with a leveling option, so you can count on stable performance in single-slope applications

Optional; available is a wall clamp see pictures

INCL:

CLX 200 - with its manual slope function, slope detection and slope lock, this extension makes applications with a slope, such as slopes and driveways, simple and efficient.

CLH Basic Specifications:

Leica Rugby CLH Basic Rotary Horizontal Laser
Warranty instrument 5 years and 2 years against breakage
Lifetime warranty housing on production/material faults
Accuracy ± 10" ± 1.5 mm at 30 m
Range automatic levelling ± 6°
Working range with Combo receiver, RE140/160 1350 diameter
Operating range Combo remote control 600 metres
manual mode yes
Laser class Class 1
Waterproof class 100% IP68/MIL-STD-810G
working temperature -20 °C to +50 °C
Storage temperature -40 °C to +70 °C
Rotation speed 10 RPS (600 RPM)
Hi Alert tilt function on impact
Alarm when temp. exceeds 50° Celsius
Batteries Li-Ion 50h on 1 charge, 1 hour charging is 8 hours working
Battery alarm at 10% battery charge yes
Rotation speed at low battery charge 7 RPS (low Battery)
Charging time 5 hours
Weight 3,9 Kg
