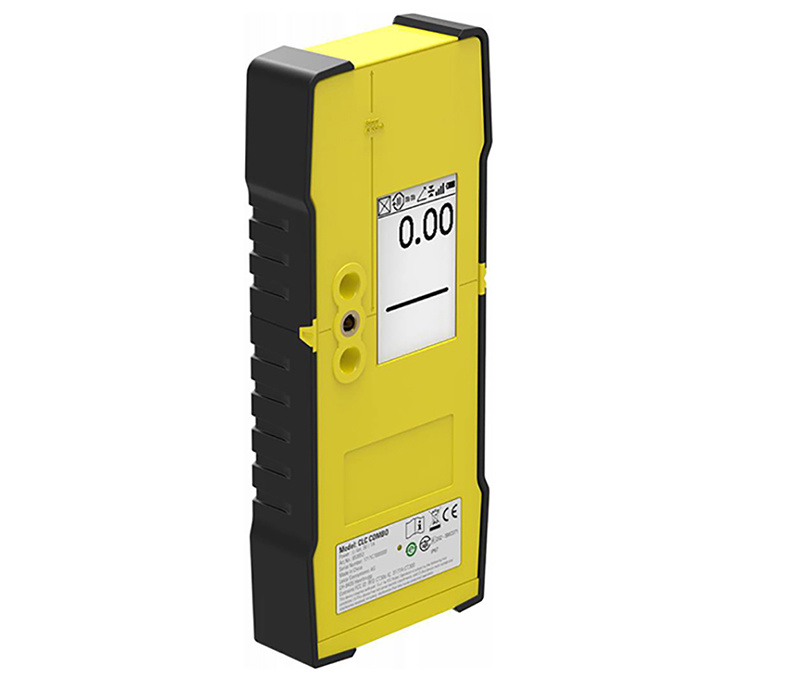

Leica CLH Basic & CLX200 software incl. Combo receiver( replaces Rugby 820 with RE180)

Leica Basic Laser CLH- Use it as an easy one-button horizontal laser for levelling, checking and transferring heights and for ground leveling applications.

Leica Rugby CLH Basic

Maximum flexibility and the ability to quickly adapt to operations are vital to your projects. With the Leica Rugby CLA and CLH you can upgrade your lasers and adapt them to the requirements of your application. You pay for the functionality you need to do your job, not for extra features you don't use. With additional professional services such as repair and calibration, the exceptional performance of your laser will be maintained for many years.

(2 year fall back guarantee)
The Leica Rugby CLH and CLA series are made for rough construction. The quality of these rugged construction lasers is so good that Leica can give a fall-back guarantee on the entire interior.This means that should the laser fall apart completely, leica will replace the level mechanism and the interior free of charge, leaving you with only the cost of the housing or battery, etc. Leica also gives a lifetime warranty on material and production faults.

(5 Year Knock down Warranty)

The Leica Rugby CLH and CLA series can easily survive a 1.5m drop. After this fall (if it does not accidentally hit a point with the glass), work can continue as usual. Should a deviation occur after a fall, Leica will calibrate the construction laser free of charge for 5 years with the unique PROTECT by Leica warranty.

Simplicity at its best

Leica Rugby CLH simplicity provides effortless use of all the capabilities of the laser system. It saves time by simplifying processes and makes you much more productive. The robust design ensures stable measurements and accuracy in your daily work. These upgrade options provide maximised performance in all levelling applications.

Specifications CLH Basic:

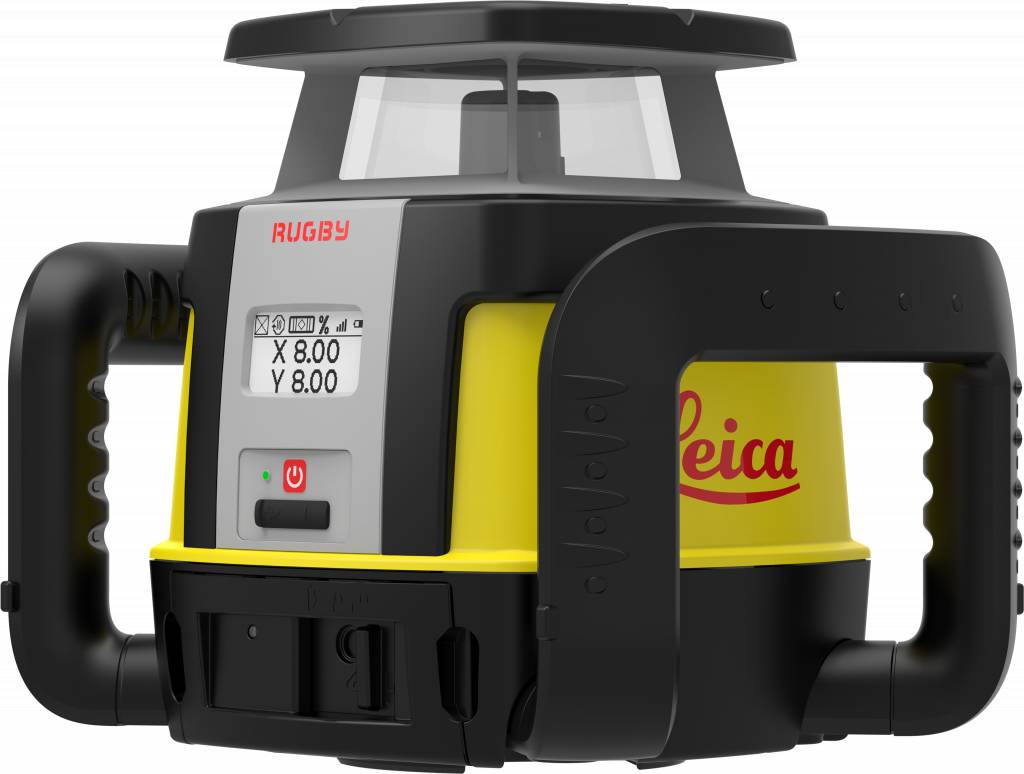

Leica Rugby CLH Basic Rotary Horizontal Laser
Warranty instrument 5 years and 2 years against breakage
Warranty housing lifelong on production/ material errors
Accuracy ± 10" ± 1.5 mm at 30 m
Range automatic levelling ± 6°
Working range with Combo,RE140/160 1350 diameter
manual mode yes
Laser class Class 1
Waterproof class 100% IP68/MIL-STD-810G
Working temperature -20 °C to +50 °C
Storage temperature -40 °C to +70 °C
Rotation speed 10 RPS (600 RPM)
Hi Alert tilt function on impact
Alarm when temp. exceeds 50° Celsius
Batteries Li-Ion 50h on 1 charge
Battery alarm at 10% battery charge yes
Rotation speed at low battery charge 7 RPS (low Battery)
Charging time 5 hours

Upgrade CLX200 software:

CLX 200 pre-programmed software includes the following functionality:

- manual shear function in 2-axis up to approximately 8% (not readable on screen)

- automatic plunge detection and plunge lock

- silks software moderately switchable ( beam masking) to avoid reflection

- temperature control of 2 or 5° Celcius for monitoring the set shear.

- Wind insensitivity mode

Optional:

Leica Multifunctional Wall Clamp, (see photo) only (with CLH and CLX200) for horizontal use, with CLA & CLX500 software also for vertical use.
