Durability

The Rugby CL series carries the highest standards of durability with its IP68 /MIL-STD-810G military rating. This means that it can withstand extreme temperatures, dust, precipitation, and can even be submerged in water deeper than 1 meter. In addition, its new handle design ensures 360º shock protection – like a roll cage in NASCAR.

Versatility

Based on your needs, the new Rugby CL series can be configured to any type of application needs – specifically for Rail-, land leveling, excavation, and daily construction applications.  From simple grade checking, to slopes for ramps and driveways, to machine control, these lasers handle any task you need.

Simplicity

With the remote, the Rugby CL series becomes an easy-to-use, one-man device. Easily adjust settings on the fly without having to walk back and forth from the laser itself.

Efficiency

The new Rugby CL series rotating lasers run on powerful lithium-ion batteries. Not only do they last longer than alkaline batteries, but they also recharge faster than other types of rechargeable batteries. Our batteries also have a Fast Charge feature where a 1 hour charge will deliver about 8 hours of use. The average savings in battery cost are impressive and we know every little bit counts.

Specifications CLH Basic:

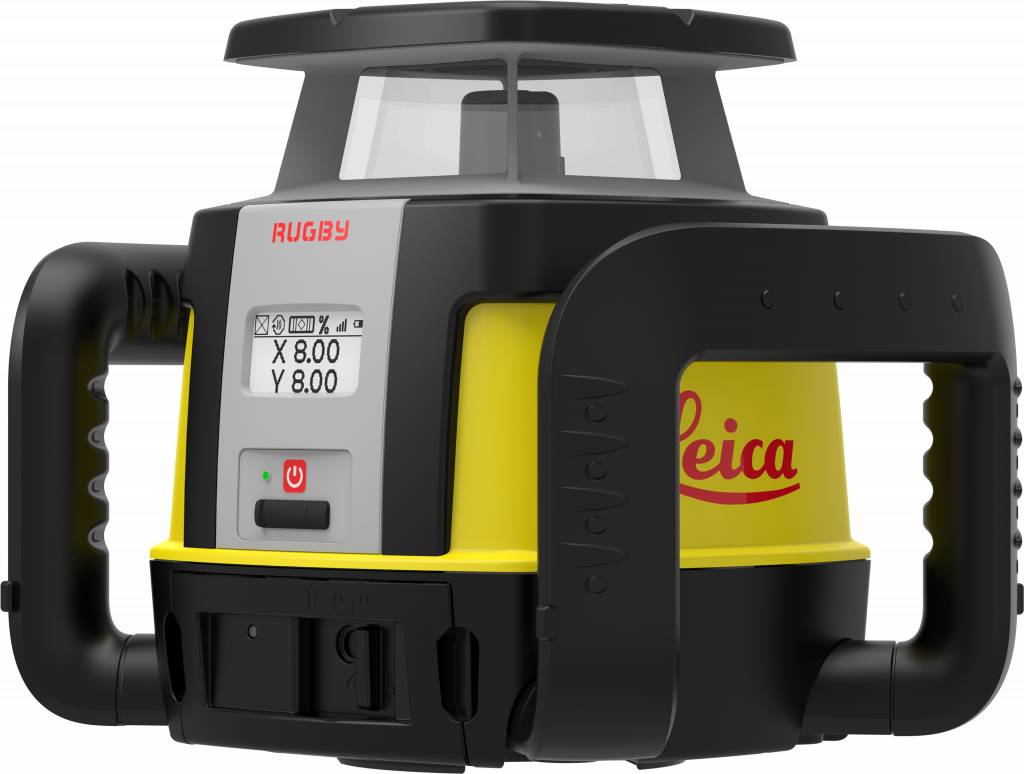

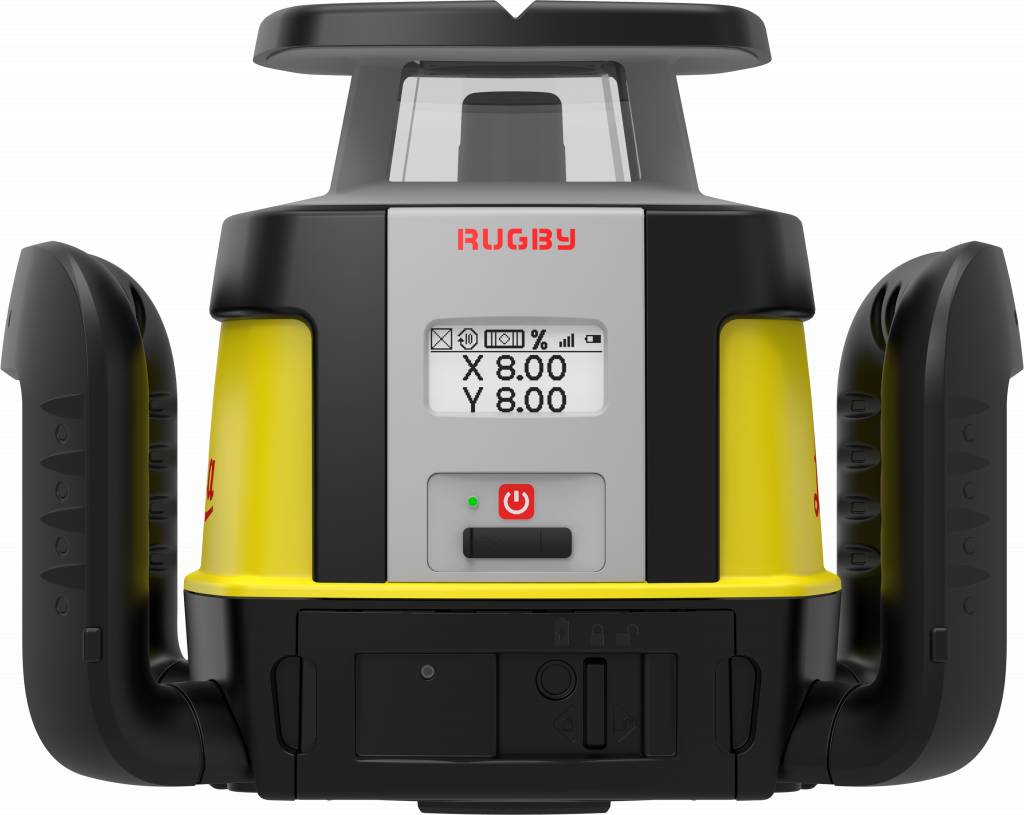

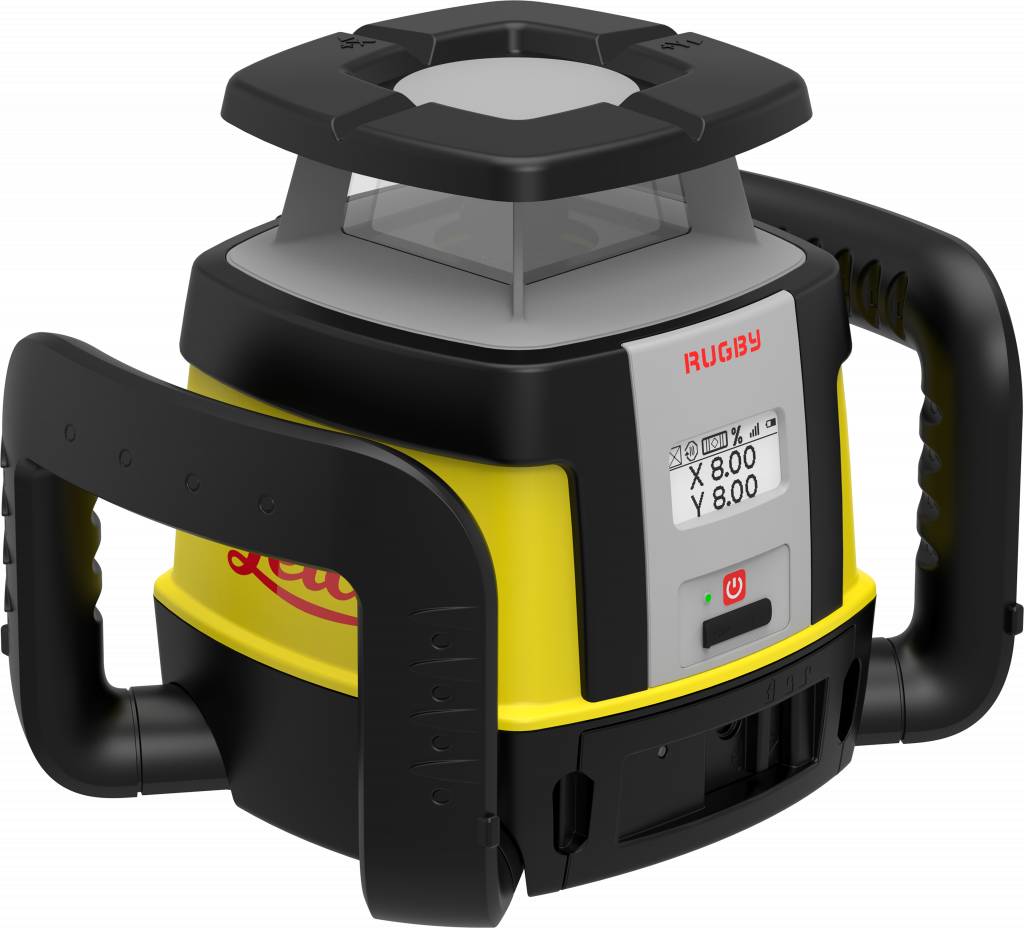

Leica Rugby CLH Basic Rotating horizontal laser
Warranty instrument 5 year and 2 year fall warranty
Warranty housing lifelong on production / material errors
Accuracy ± 10 "± 1.5 mm at 30 m
Achieve automatic leveling ± 6 °

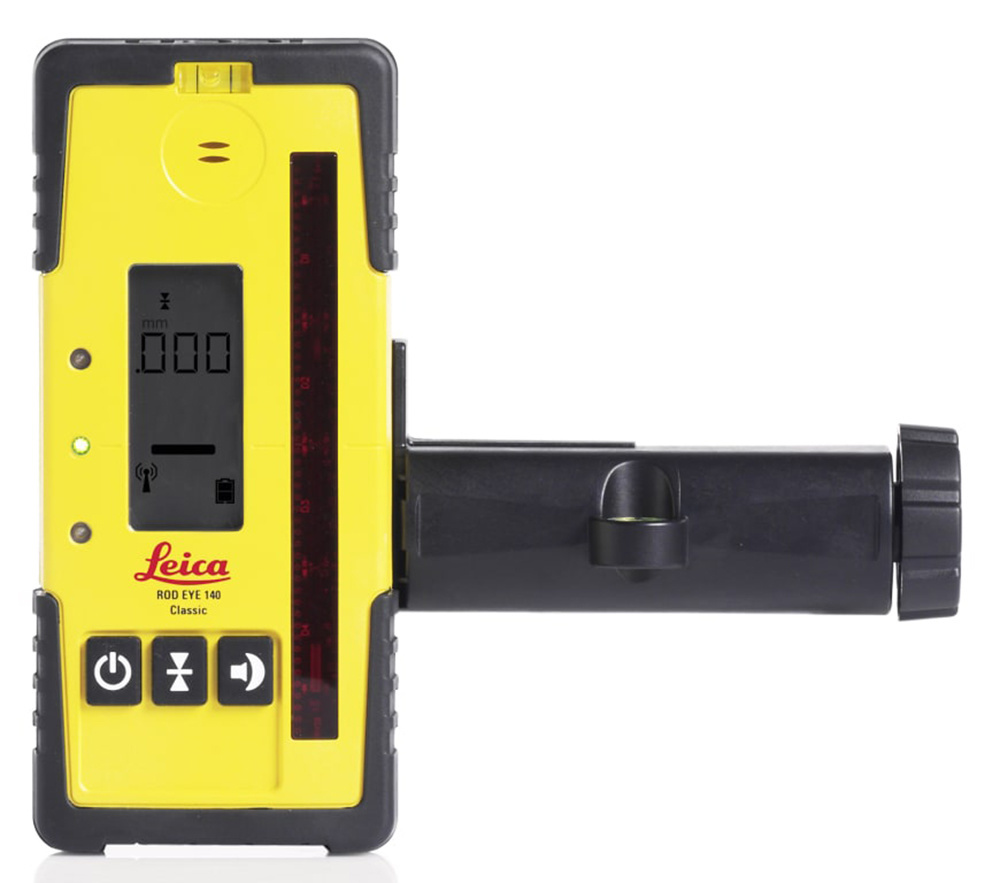

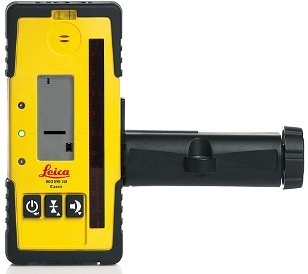

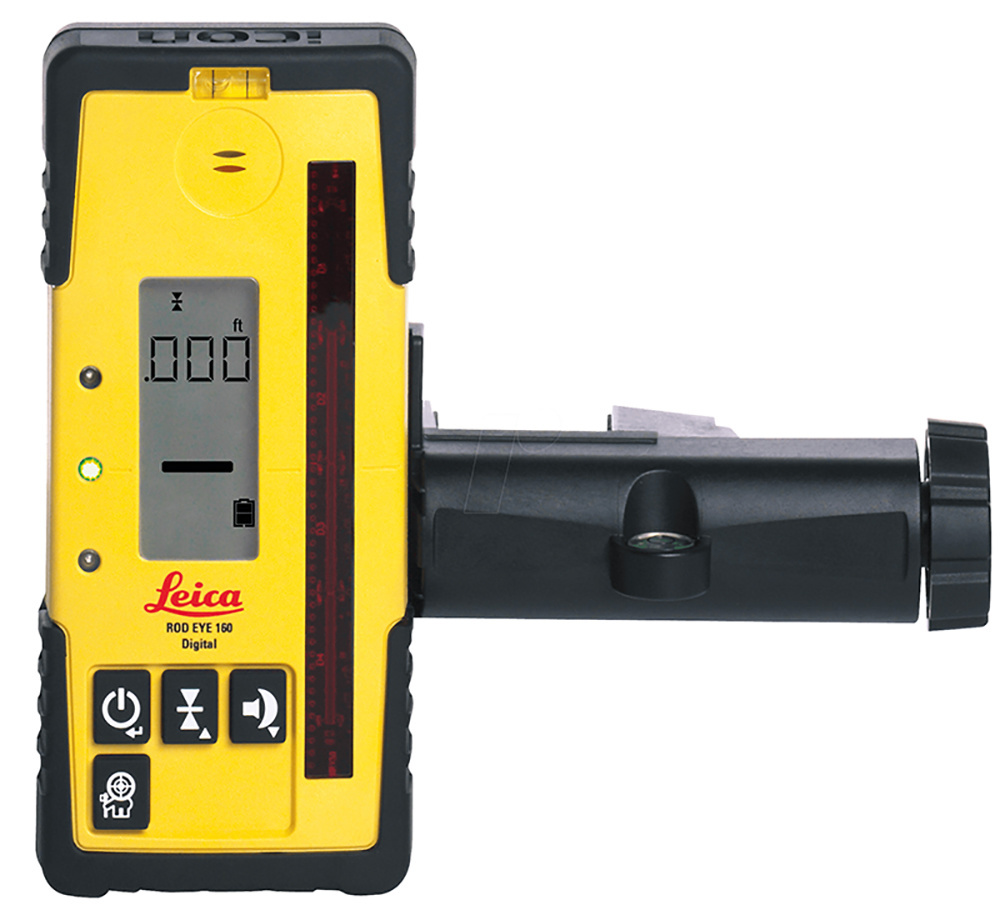

Working range with Combo, RE140 / 160 1350 diameter
manual mode yes
Laser class Class 1
Water resistance class 100% IP68 / MIL-STD-810G
working temperature -20 ° C to +50 ° C
Storage temperature -40 ° C to +70 ° C
Rotation speed 10 RPS (600 rpm)
Hi Alert tilt function at impact
Alarm As Temp. higher than 50 ° celcius
Batteries Li-Ion 50 hours on 1 charge
Battery alarm at 10% battery charge yes
Rotation speed with too little battery charge 7 RPS (low Battery)
Charging time 5 hours
