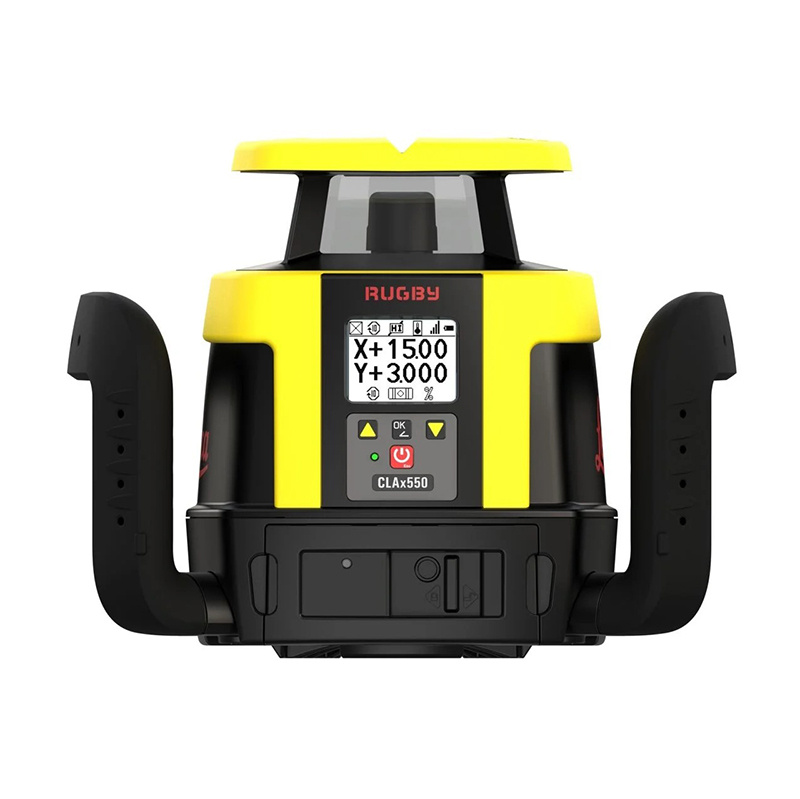

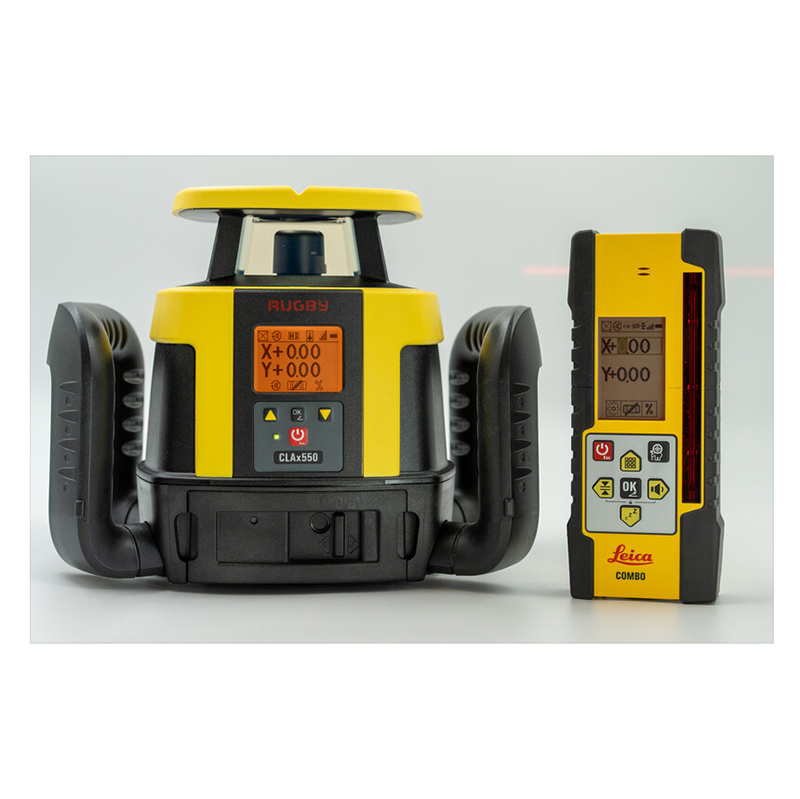

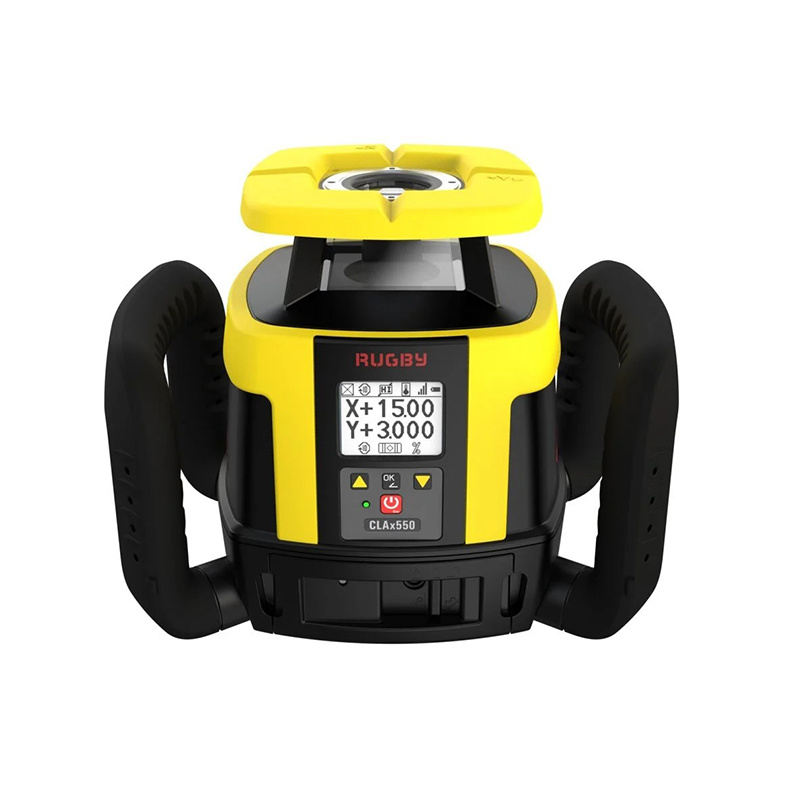

Leica Rugby CLAx550

Maximum flexibility and the ability to quickly adapt to tasks are vital to your projects. With the Leica Rugby CLA you can upgrade your lasers and adapt them to the requirements of your application. You pay for the functionality you need to do your job, not for extra features you don't use. With additional professional services such as repair and calibration, the exceptional performance of your laser will be maintained for many years.

The right choice for any application in the field

With its unique ability to adapt to the needs of the particular application through software upgrades, the Leica Rugby CLA is the first upgradeable laser for maximum productivity and performance in the field. The upgrade options allow for unparalleled performance in all forms of levelling, alignment and squaring: a true all-rounder.

(2 year downfall warranty)
The Leica Rugby CLH and CLA series is made for rough construction. The quality of this rugged construction laser is so good that Leica can give a fall-back guarantee on the entire interior. This means that should the laser fall apart completely, Leica will replace the level mechanism and the interior free of charge, leaving you with only the cost of the housing or battery, etc. Leica also gives a lifetime warranty on material and production faults.

(5 Year Warranty)

The Leica Rugby CLH and CLA series can easily survive a 1.5m drop. After this fall (if it does not accidentally hit a point with the glass), work can continue as usual. Should any deviation occur after a fall, Leica will calibrate the construction laser free of charge for 5 years with the unique PROTECT by Leica warranty.

Base Unit - Use it as an easy one button horizontal laser for levelling concrete and formwork, checking and transferring heights and for ground leveling applications.

Includes Upgrade : CLX 500 - provides vertical rotation, making the CLX 500 software suitable for the alignment of building boards, interiors and the like.

Optional: a wall bracket/building board bracket (for vertical use on a building frame) is available.

INCL the software:

CLX 250 - with its manual slope function, slope detection and slope locking, this extension makes slope applications, such as slopes and driveways, simple and efficient.

Includes Upgrade :

CLX 5500 - adds +-8% fully automatic leveling functionality in the second axis with a leveling option, making this upgrade the most reliable performance in dual-slope applications

Specifications CLA Basic:

Leica Rugby CLA Basic Rotating horizontal laser
Warranty instrument 5 years and 2 years against breakage
Warranty housing lifetime on production/material faults
Accuracy ± 10" ± 1.5 mm at 30 m
Range automatic levelling ± 6°
Operating range with Combo receiver, RE140/160 1350 diameter
Working range Combo remote control 300 meter
manual mode yes
Laser class Class 1
Waterproof class 100% IP68/MIL-STD-810G
working temperature -20 °C to +50 °C
Storage temperature -40 °C to +70 °C
Rotation speed 5,10,15 RPS (300,600 or 900 RPM)
Hi Alert tilt function on impact
Alarm when temp. exceeds 50° celcius
Batteries Li-Ion 50hours on 1 charge, 1 hour charge is 8 hours working
Battery alarm when 10% battery charge yes
Rotation speed at low battery charge 7 RPS (low Battery)
Charging time 5 hours
weight 3,9 Kg
