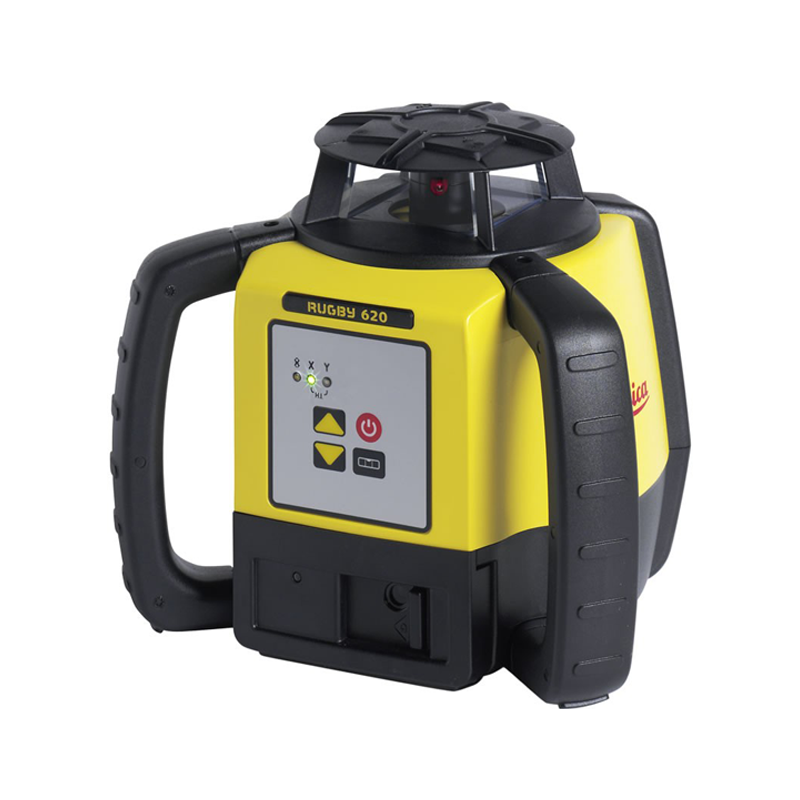

Leica Rugby 620 construction laser;

The Leica Rugby 620 is a horizontal laser that can also be used to manually set a slope in 2 axes.

Receiver:

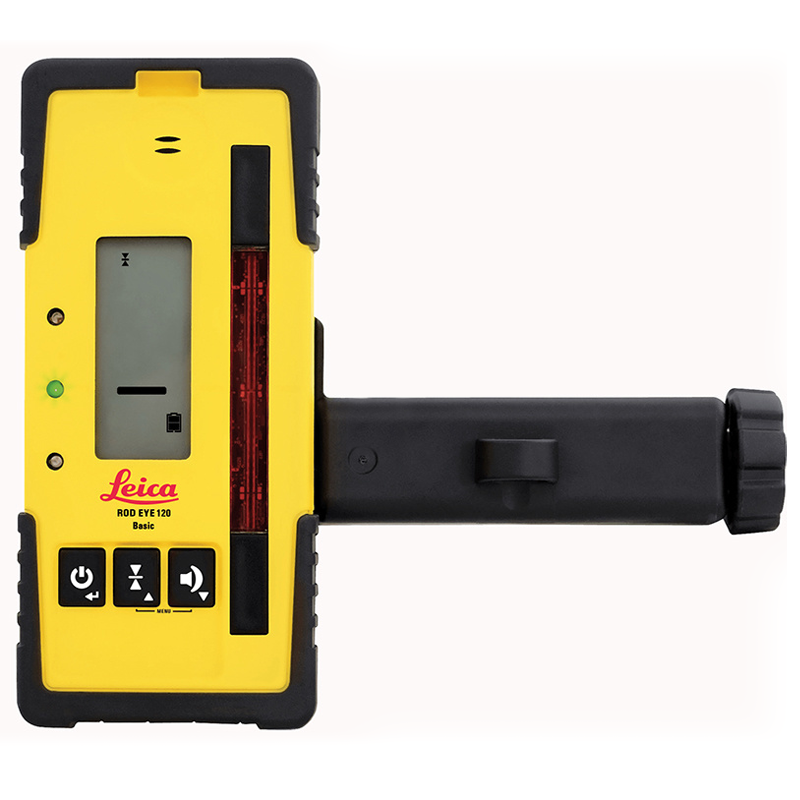

As standard, the Leica Rugby 620 construction laser comes with a Rod Eye Basic 120 receiver. With this receiver, a working range of 600 metres can be achieved.

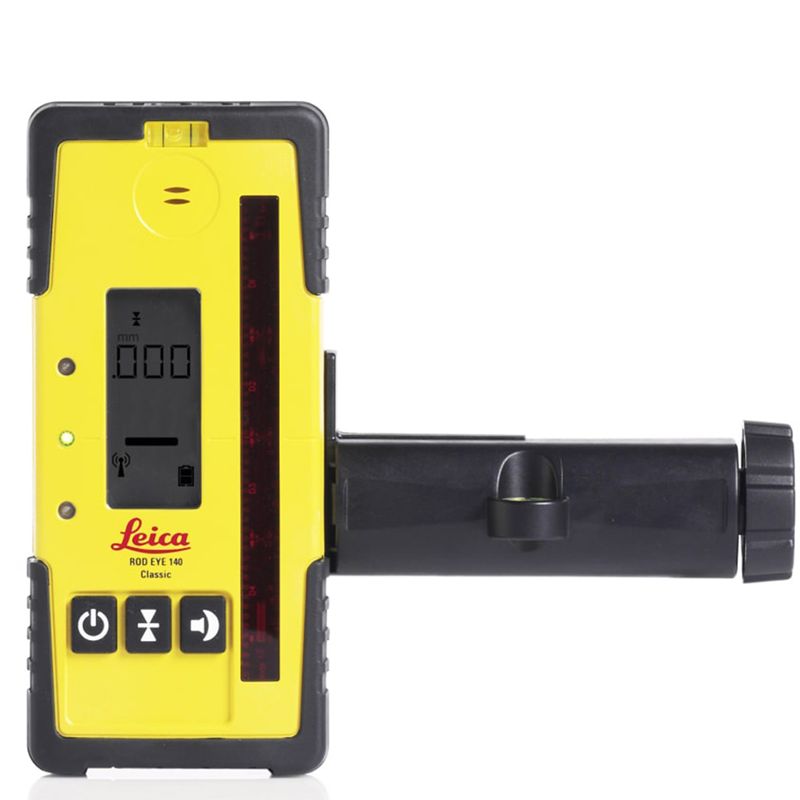

Optional: Leica Rod Eye 140, with larger receiver window giving a working range of 800 metres.

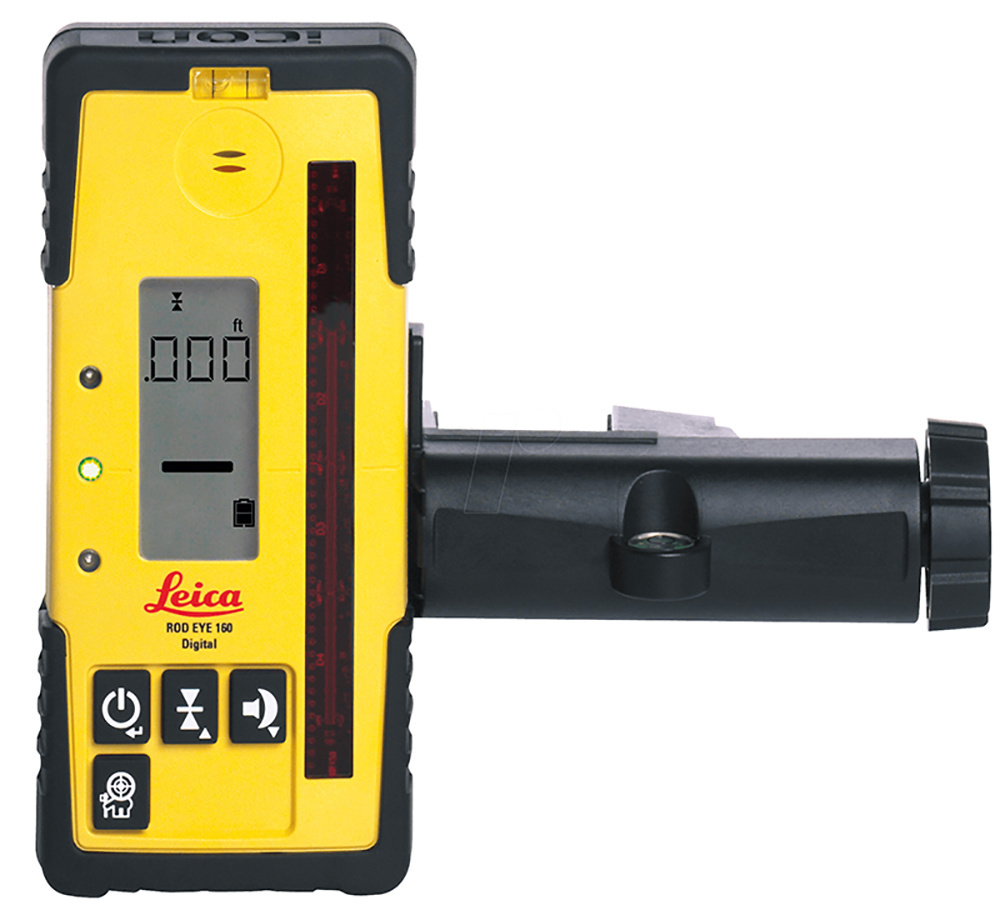

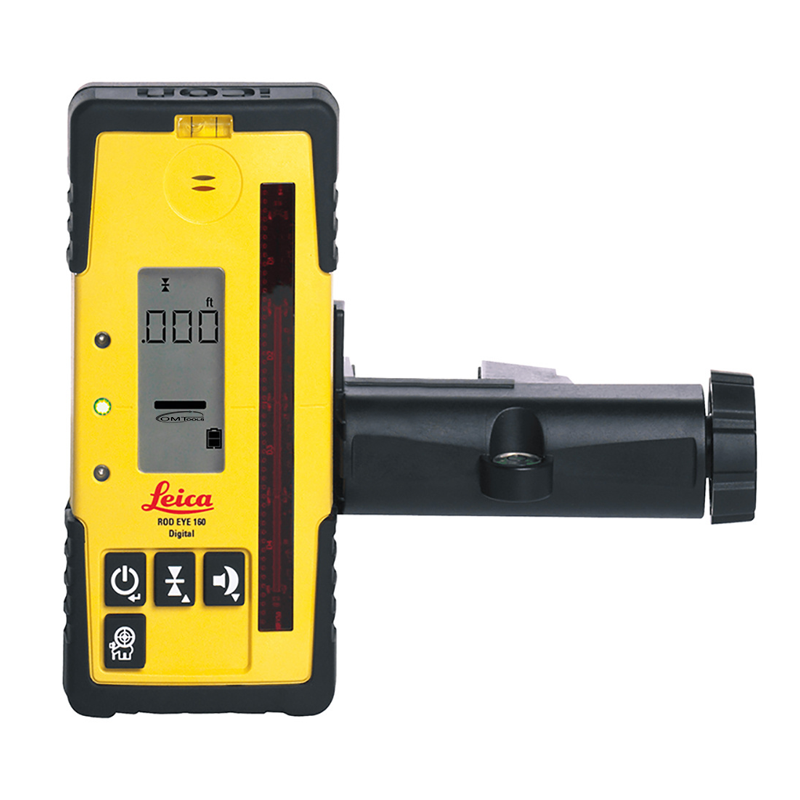

Optional: Leica Rod Eye 160, with larger receiving window and mm readout working range of 800 metres.

Specifications:

Accuracy: 0.5 mm / 10 metres
Range: 300 m with receiver
Working range Ø: 600 m with receiver
Rotating: 600 rpm
Scanning: -

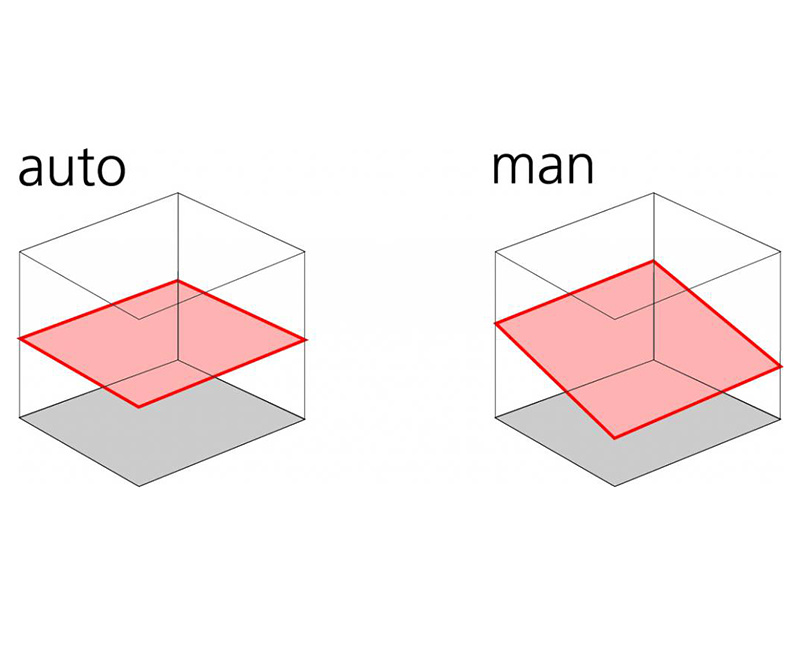

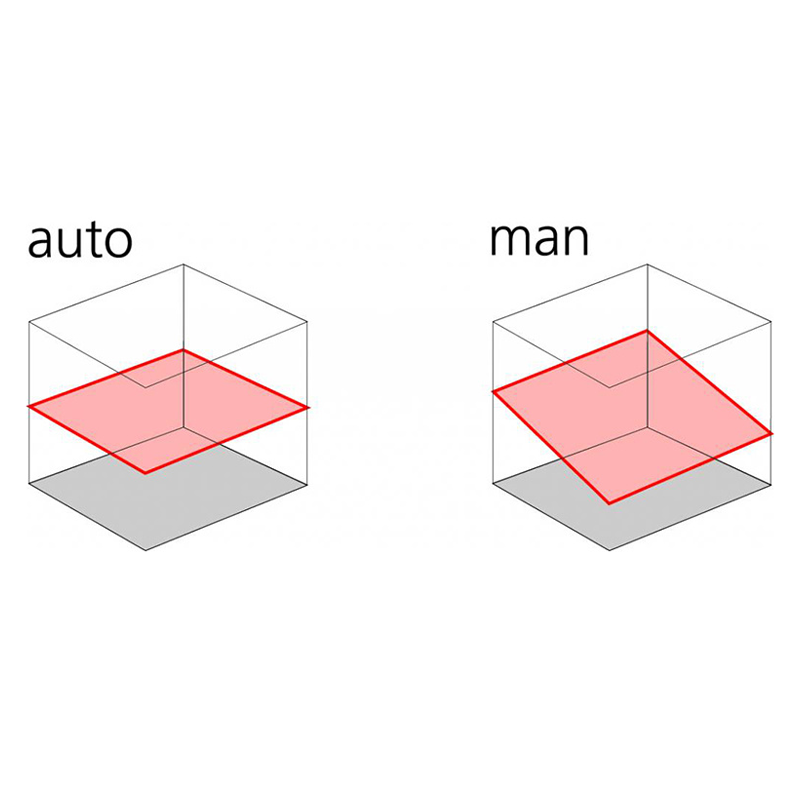

Functions: Horizontal, double slope
Laser diode: Class 2, 635nm
Levelling range: 5°
Working time full battery: 40 hours
Protection: IP67
Weight: 2.4 kg
Power supply: Li-Ion battery
Working temperature: -10°C to 50°C
Connection: 5/8"
Dimensions: LxWxH 212 x 239 x 192 mm

Scope of delivery:

- Leica Rugby 620
- Calibration report
- Receiver Rod Eye 120 with staff clamp

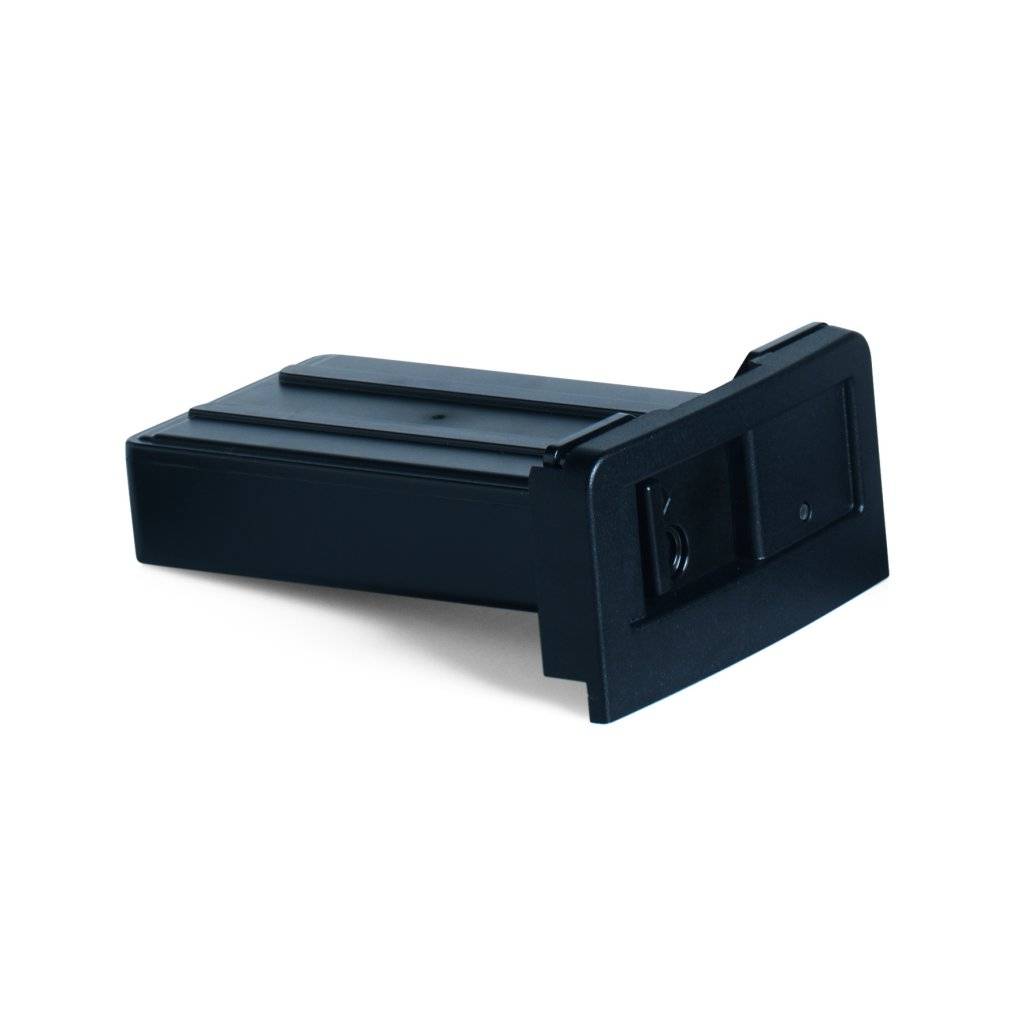

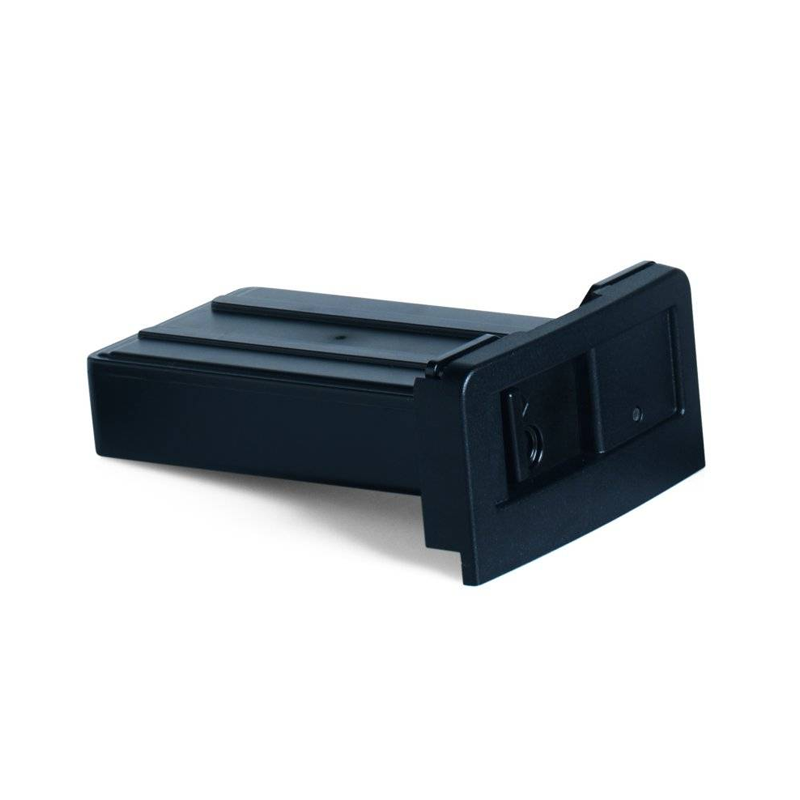

- Li-Ion battery
- Charger
- Carrying case
