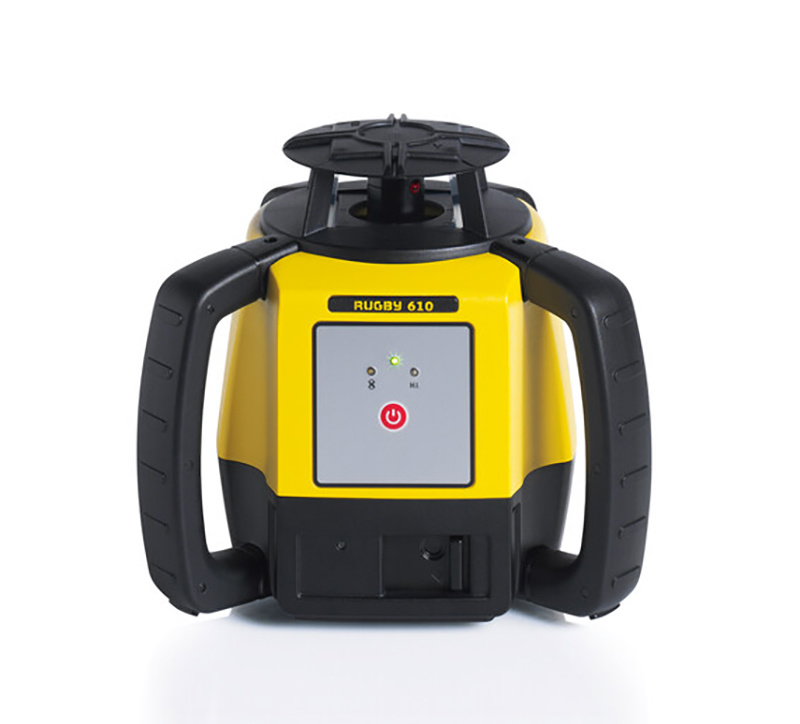

Rugby 610 Horizontal rotating construction laser

Professional Horizontal rotating construction laser

Leica Rugby lasers are the most robust rotary lasers, suitable for all construction applications.  You can level and align faster than ever before , eliminating costly mistakes and lost time.

One-button simplicity.

The Leica Rugby 610 is characterised by its simplicity. at the touch of a button the laser will self-level and rotate.

Manual mode:

By pressing and holding the power button for 5 seconds ( 5 beeps) the rugby switches to manual mode, but will level itself first.

Manually Entering a Slope:

When the laser is in manual mode, you can, among other things, use the manual Slope Adaptor A240 to set the laser to any angle you want.

Also, the Rugby has 3 more hidden keys ( read the Manuel for this)

Applications:

Leveling formwork, elevations and construction work, laying a foundation and foundations has never been more efficient.

Receiver:

As standard, the Leica Rugby 610 construction laser is supplied with a Rod Eye Basic 120 receiver.

With this receiver a working range of 600 metres can be achieved.

Optional: Leica Rod Eye 140, with a larger receiver window giving a working range of 800 metres
Optional: Leica Rod Eye 160, with a larger receiver window and mm display, giving a working range of 800 meters.

Specifications:

• Accuracy: 0.8 mm / 10 meters
• Range: 300 m with RE basic receiver
• Working range Ø: 600 m with receiver
• Rotating: 600 rpm
• Functions: Horizontal
• Laserdiode: Class 2, 635nm
• Leveling range: 5°
• Working time full battery: 40 hours
• Protective: IP67
• Weight: 2.4 kg
• Power supply: Battery Li-Ion
• Operating temperature: -10°C to 50°C
• Connection: 5/8 "
• Dimensions: LxWxH212 x 239 x 192 mm

Scope of delivery:

- Leica Rugby 610
- Calibration report
- Receiver Rod Eye with staff clamp
- Li-Ion battery
- Charger
- Carrying case
