- Brand:
- OMTools
- Article number:
- 503537112
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€499,00
PK2 Drill Point Locator set solves the repeated problem how to drill holes through walls, floors etc. safely and accurately.

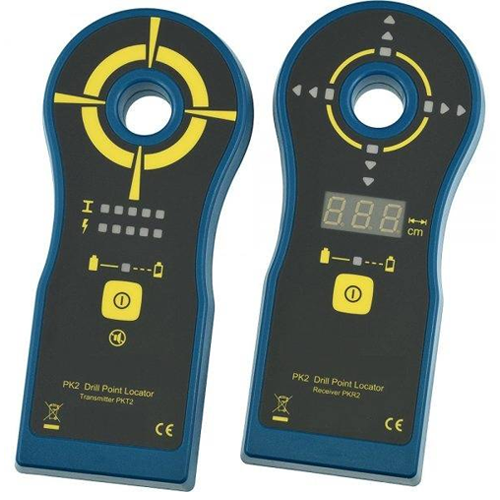

PK2 Drillpoint Locator ( centerscanner)
Vesala’s new PK2 Drill Point Locator set solves the repeated problem how to drill holes through walls, floors etc. safely and accurately.
With PK2 time consuming measuring or using trial & error drilling to find the right drill location can be avoided.

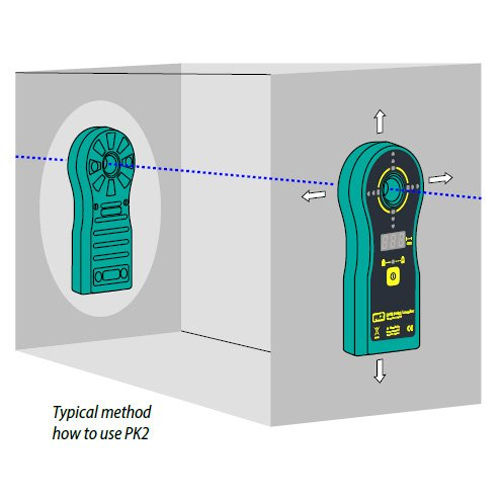

- For pinpointing drill hole locations through walls and floors;
- For determining required drill depth;
- For detecting metal and electric obstacles.
PKT2 metal & AC detector
Before drilling it is often good to know whether there are hidden obstacles in the way. PKT2 transmitter has an automatic metal detector feature, which warns if there is metal under it.
AC detector displays if there is alternating voltage present, hinting about possible live mains wiring underneath.
Specifications:
| Transmitter indicators | 11 LEDs and audio signals |
| Transmitter batteries | 3 pcs. IEC LR03 alkaline batteries |
| Transmitter operating time | 12h |
| Transmitter dimensions | 172 x 75 x 28 mm |
| Transmitter weight | approx. 210g with batteries |
| Transmitter operating conditions | -30...+40ºC (dry conditions) |
| Transmitter storage conditions | -40...+60ºC (dry conditions) |

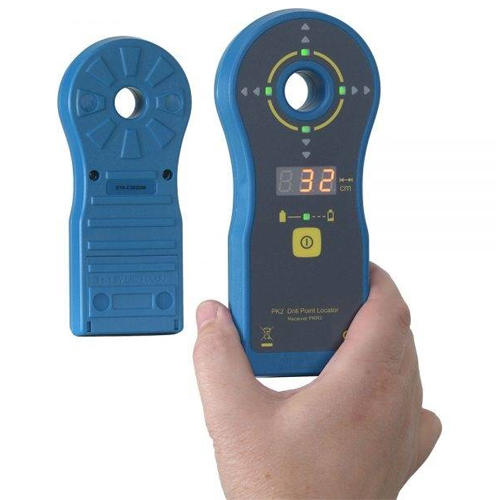

| Receiver indicators | 13 LEDs and 3x7-segment display, audio signals |
| Receiver operating distance | Numeric distance display max. 2m, direction LED indication max. 150cm |
| Receiver pinpointing accuracy | Typically 3% of the distance |
| Receiver batteries | 3 pcs. IEC LR03 alkaline batteries |
| Receiver operating time | approx. 20h |
| Receiver dimensions | 172 x 75 x 28 mm |
| Receiver weight | approx. 230g with batteries |
| Receiver operating conditions | -30...+40ºC (dry conditions) |
| Receiver storage conditions | -40...+60ºC (dry conditions) |
