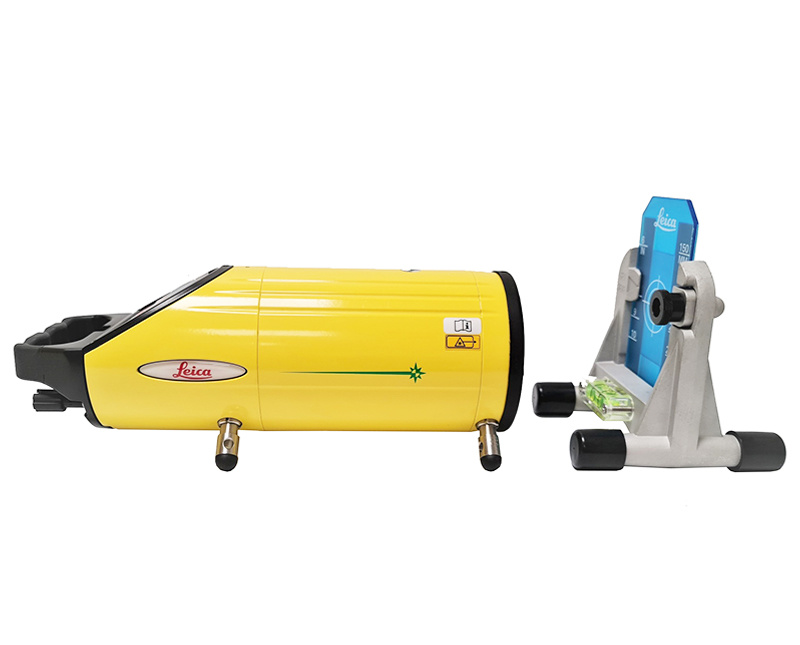

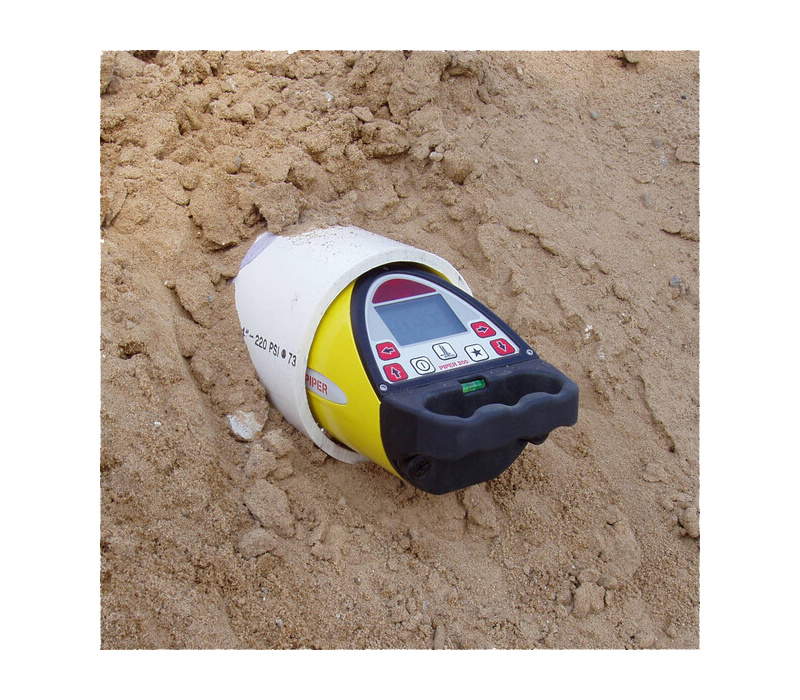

Tough and robust the Leica Piper 200 laser housing is made from cast aluminium and is completely water proof.

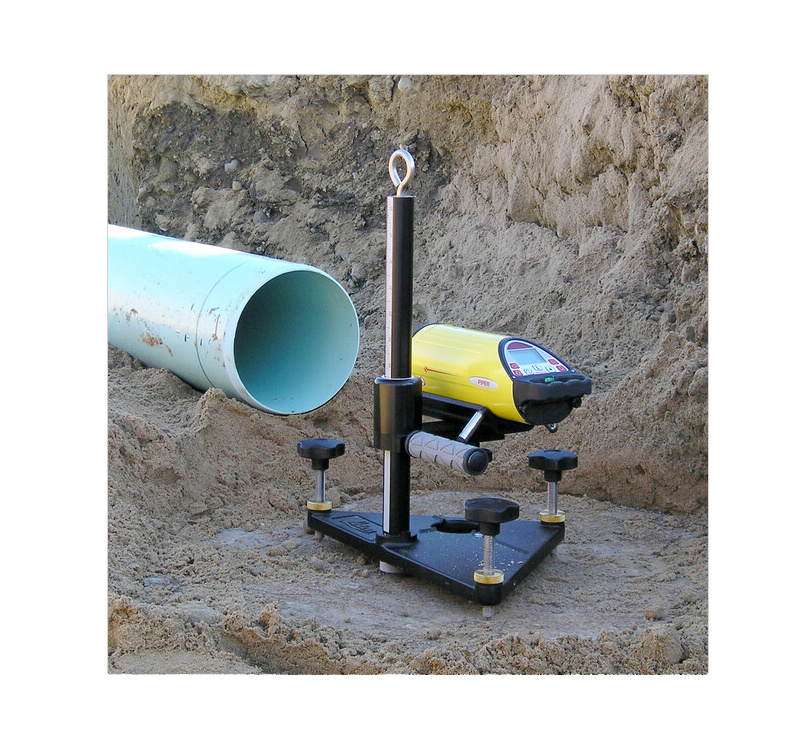

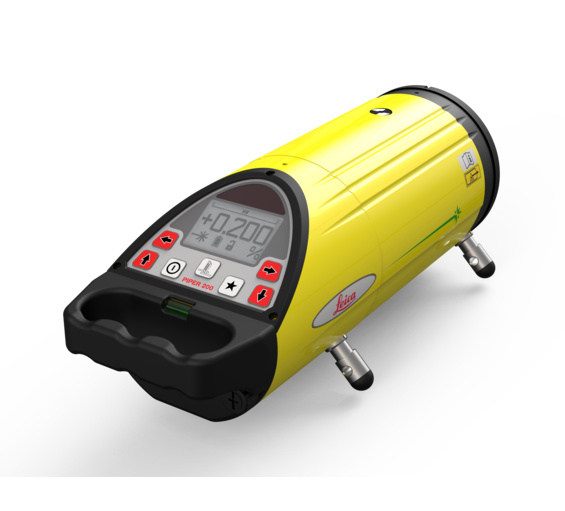

It features a large LED display which shows the grade & level indication and battery status. It is ideal for sanitary and storm sewer construction, gravity flow pipes and any place where a single line and grade are required with only one laser beam.

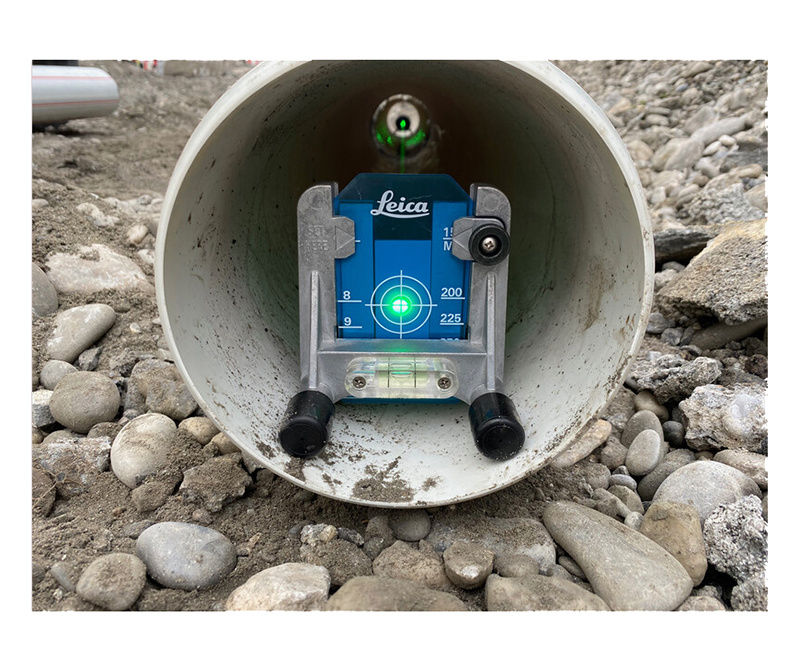

This pipe laser has a range of 200 metres and grade ranges of -10% to +25%. Standard battery life is 40 hours. The Leica Piper 200 include Alignmaster.

Supplied with:

• Protective Carrying Case
• User Manual

 Technical Specification:

• Red Laser Diode - 635 nm
• 4.75 mW maximum Laser Output
• 200m Working Range
• -10 % to +25 % Grade Range
• -15 % to +30 % Self-levelling Range
• Line Movement: 6 m metres @ 30 metres
• Battery type and life: Lithium-Ion, 40 hours
• Operating Temp: -20° to +50° C
• Weight: 2 kg
• Seal - IPX8
• Wireless remote control up to 150 metres

(brochure)

(manual)
