€3.532,00
Piper 100 Pipe Laser with class 2M rating, for special countries

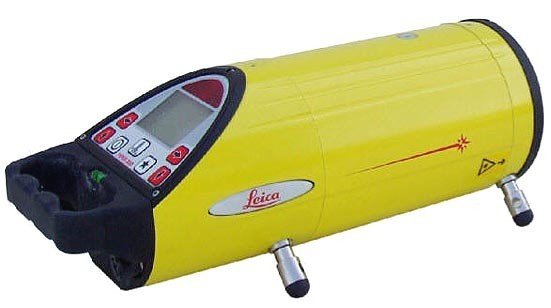

Leica Piper 100 Pipe Laser with class 2M laserdiode for additional safety
Several years ago, the Piper 100 red was only available as a laser class 3R instrument. In some countries
requires additional safety regulations or a “specialist” to operate. Thus the Piper 100 with a laser class of 2M
was introduced enabling our customers work without additional effort to meet these regulations.
The latest update of the Leica Geosystems catalogue now includes the Piper 100 LC2M to make it easier for
you to offer to your customers. As from the beginning, this version is only available in EMEA and APAC
regions, it is not possible to order within North America.
Tough and robust the Leica Piper 100 laser housing is made from cast aluminium and is completely water proof.

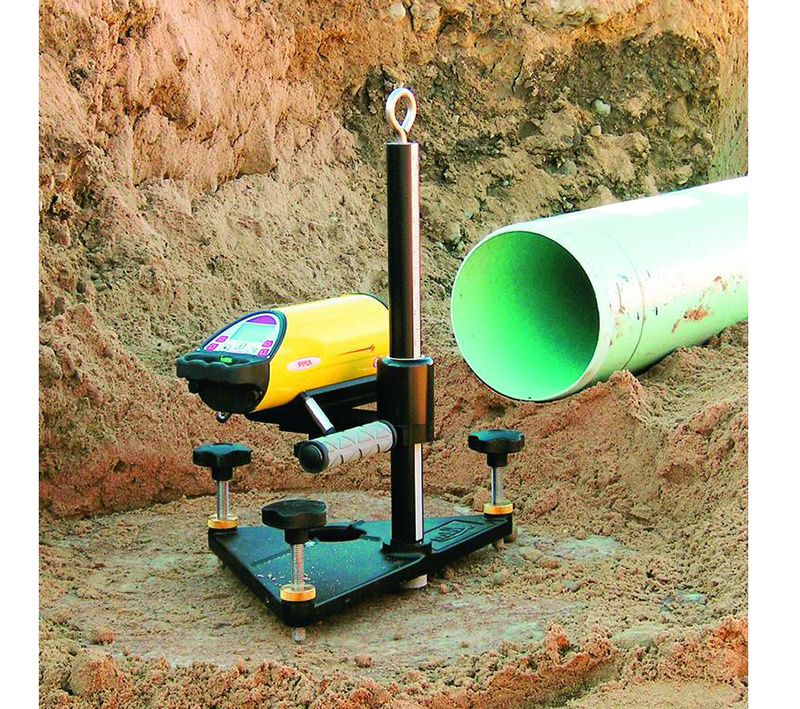

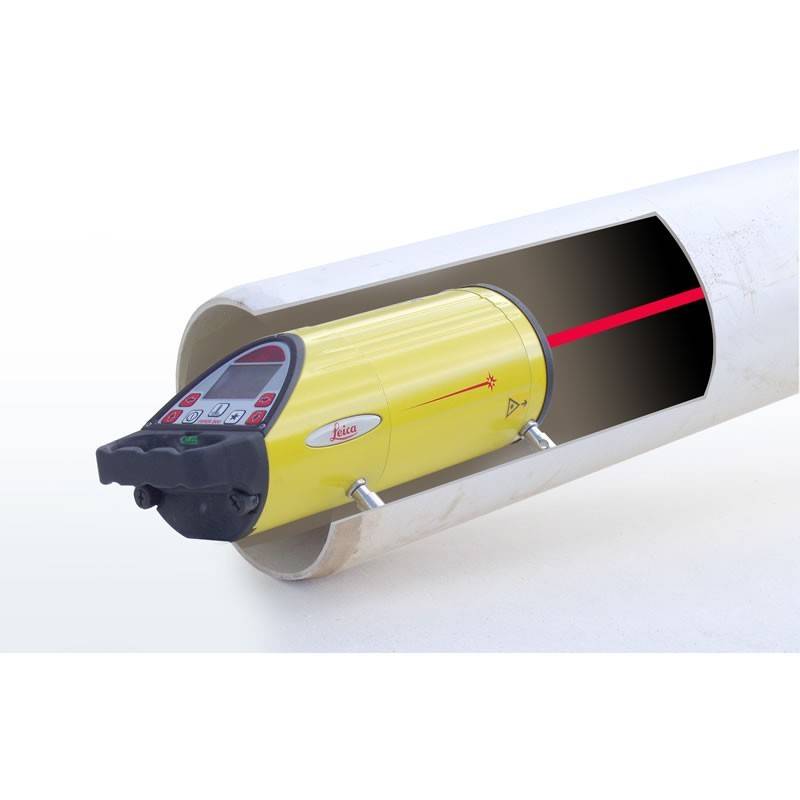

It features a large LED display which shows the grade & level indication and battery status. It is ideal for sanitary and storm sewer construction, gravity flow pipes and any place where a single line and grade are required with only one laser beam.
This pipe laser has a range of 200 metres and grade ranges of -10% to +25%. Standard battery life is 40 hours. The Leica Piper 100 does not include Alignmaster. If Alignmaster is required please select the Leica Piper 200 Laser.

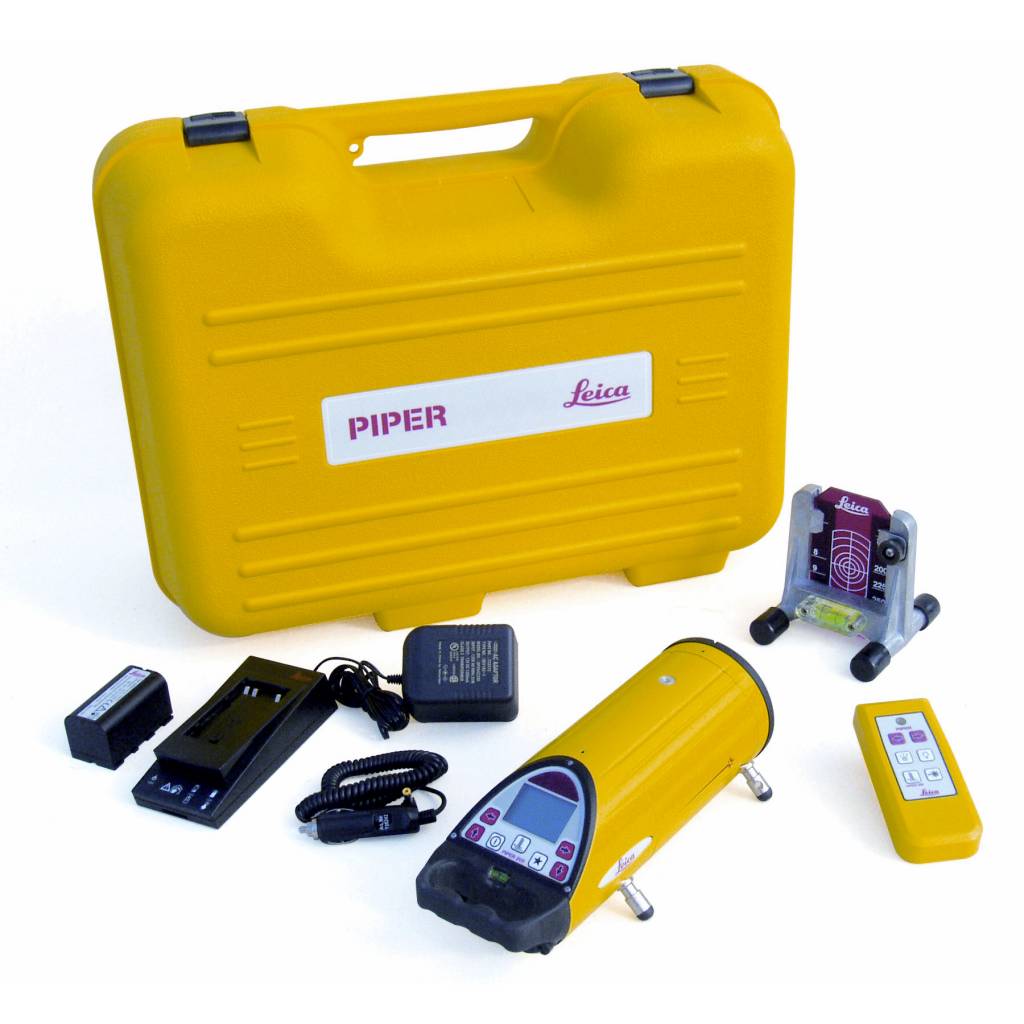

Supplied with:
- Protective Carrying Case
- User Manual
Technical Specification:
- Red Laser Diode - 635 nm
- 4.75 mW maximum Laser Output
- 200m Working Range
- -10 % to +25 % Grade Range
- -15 % to +30 % Self-levelling Range
- Line Movement: 6 m metres @ 30 metres
- Battery type and life: Lithium-Ion, 40 hours
- Operating Temp: -20° to +50° C
- Weight: 2 kg
- Seal - IPX8
- Wireless remote control up to 150 metres
