€139,00

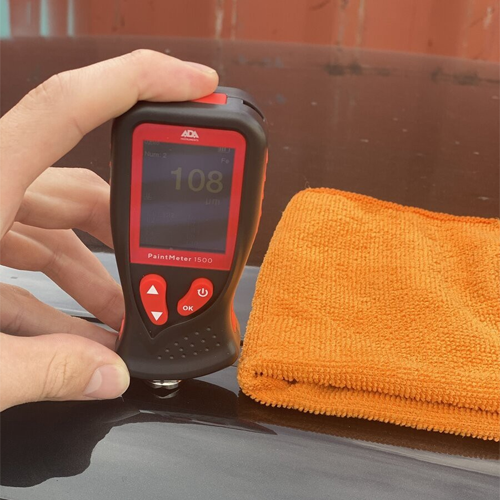

PaintMeter 1500 Coating thickness tester
ADA Paintmeter 1500
Thickness meter for checking lacquer and paint layers
Coating thickness gauge ADA Paintmeter 1500 is a professional model
It is designed for the operation in laboratories, workshops, in the chemical, automotive, shipbuilding and aviation industries. Thickness gauge sensor works according to two principles: magnetic induction and vortex flow.

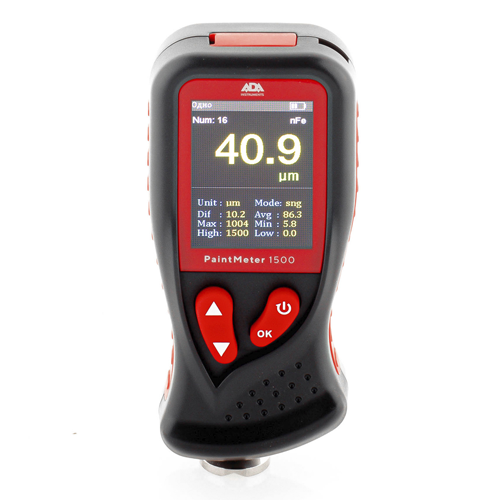

The devise is designed to measure coatings on ferrous and non-ferrous metals up to 1.5 mm. Sensor type can be set manually or detected automatically. Measured values and information for user are displayed on the color display
Information can be displayed in the form of measurement statistics, previous values or measurement diagrams.
The measuring sensor is located at the bottom of the devic
Due to such design, taking measurements is convenient and the user easily achieves a stable position of the thickness gauge and constant pressure in the contact area. Measurements on small and cylindrical surfaces became easier for the users due to the V-shaped senso
The hemispherical tip of the sensor is made of solid, high-strength material.r.e.
Specifications:
| Measuring range | 0 ~ 1500 µ /59 mil |
| Accuracy | ± 5 µ (150 µ); ±3%H+1 µ (>150 µ) |
| Minimum radius of curvature | 2 mm |
| Diameter of minimum area | 12 mm |
| Minimum thickness | 0.5 mm |
| Operating voltage | 3,7 V (lithium battery 1000 mAh) |
| Size | 52.9x26x1 17 mm |
Including:
Coating thickness tester ADA PaintMeter 1500,
Battery,

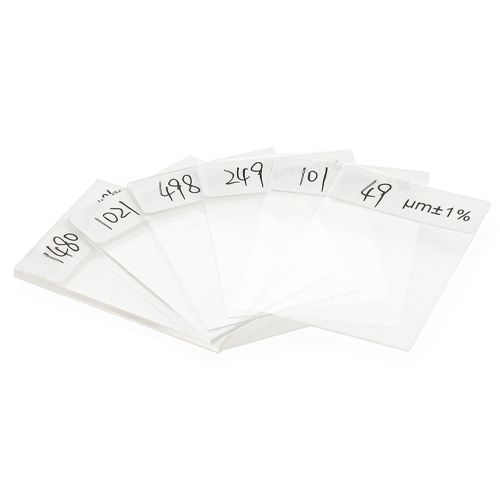

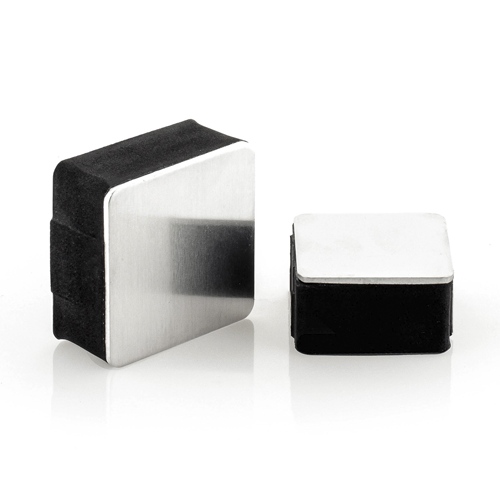

Steel and aluminium foils,
Case,
Operating manual
