- Brand:
- Leica
- Article number:
- 864427
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€269,00

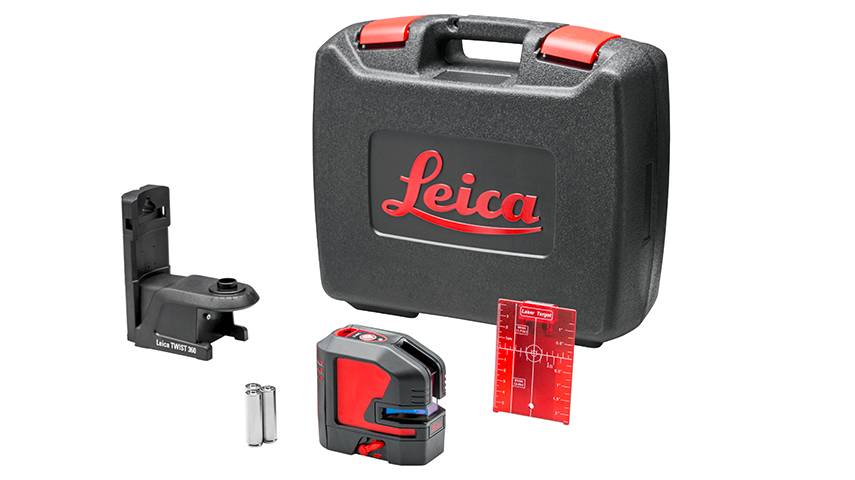

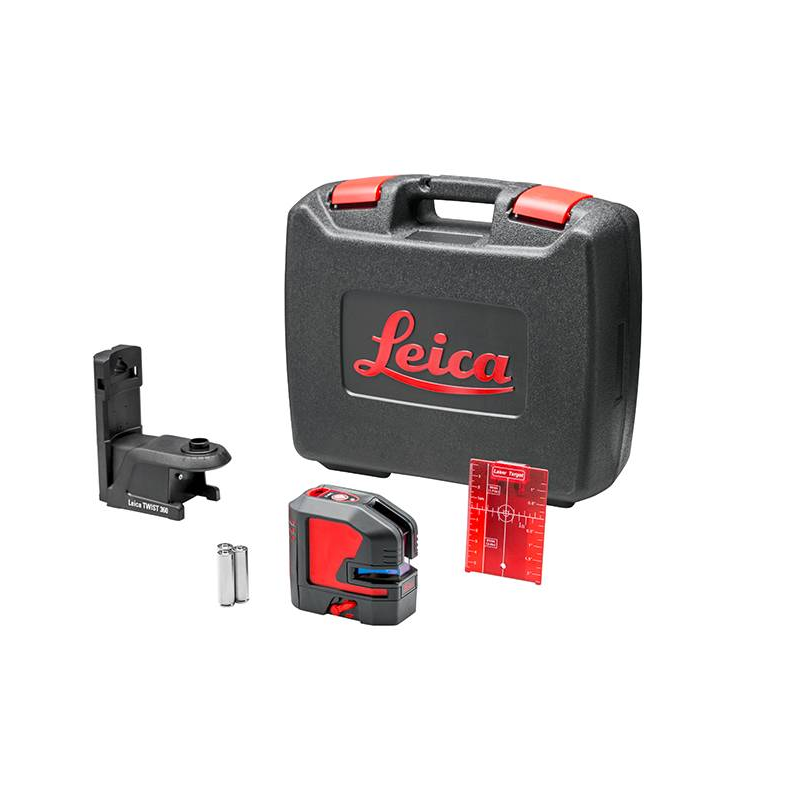

Leica Lino P5 point laser with 5 points 90 degrees to each other with magnetic wall clamp in case
Leica Lino P5
Precise laser projection,
right to the point

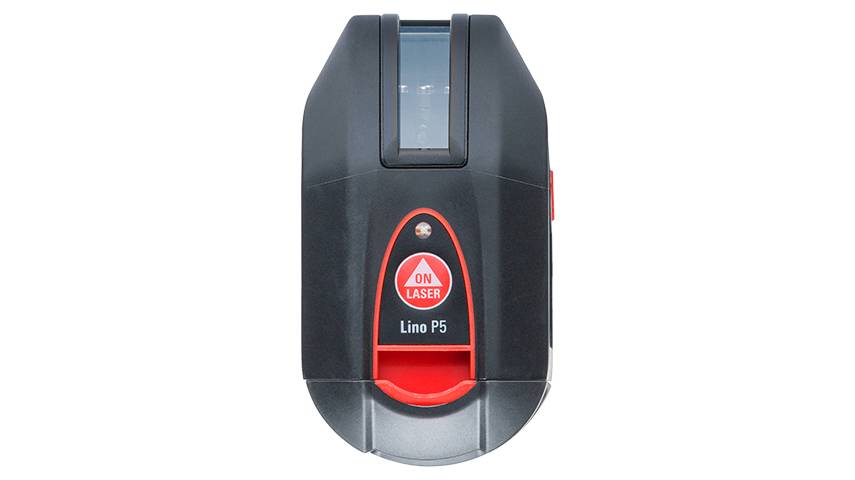

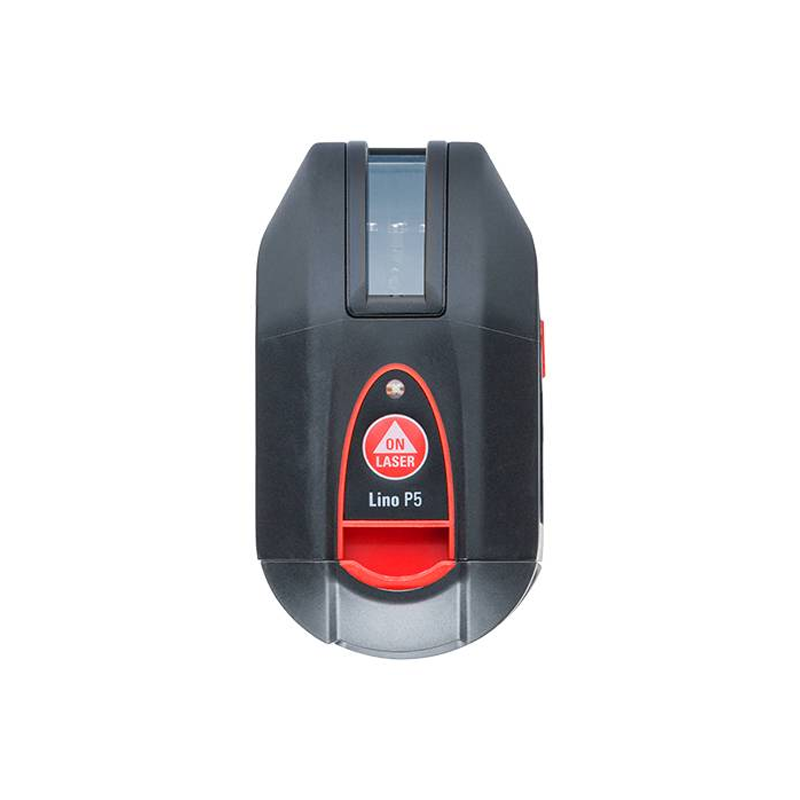

ONE BUTTON OPERATION

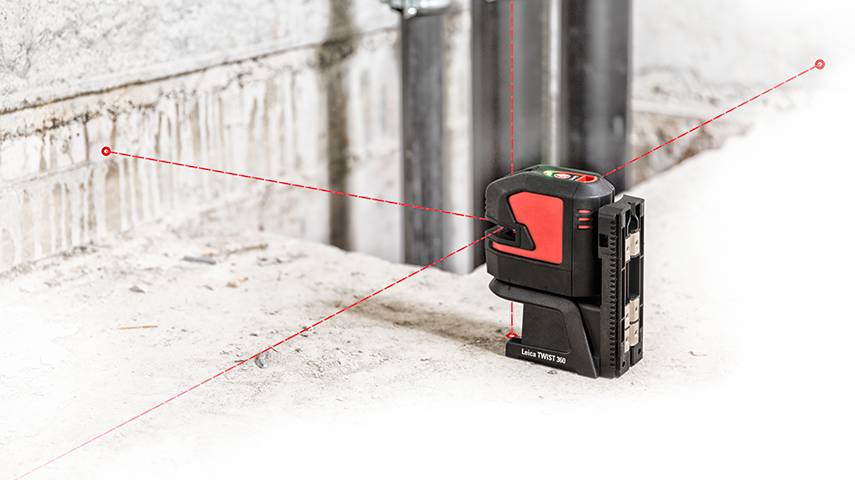

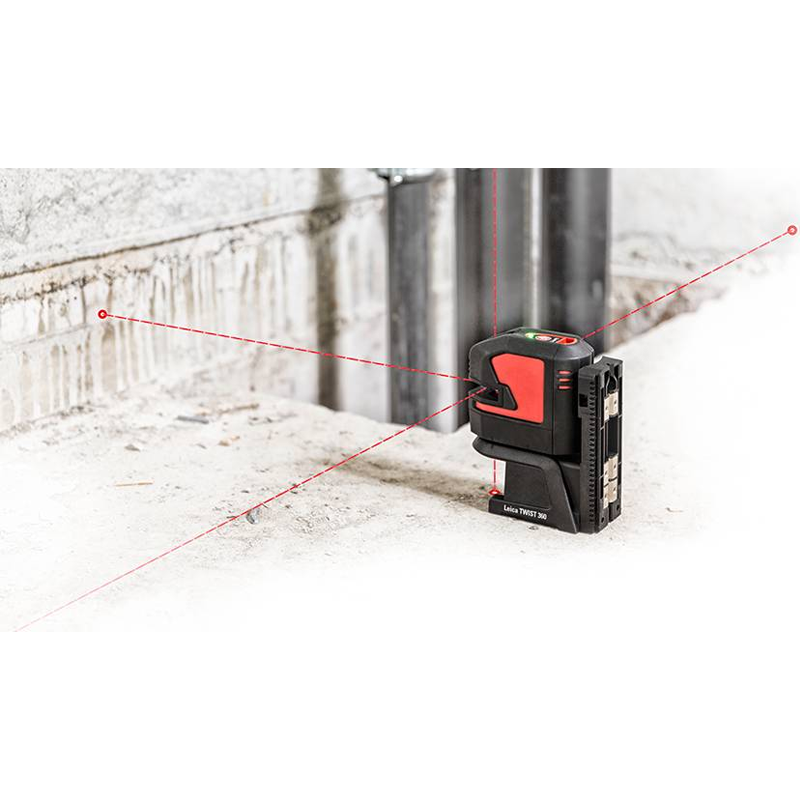

The Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.
QUICK POSITIONING

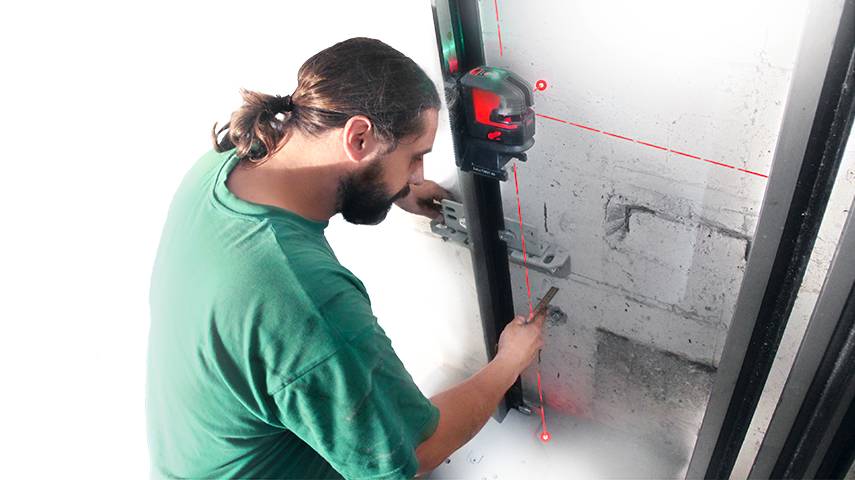

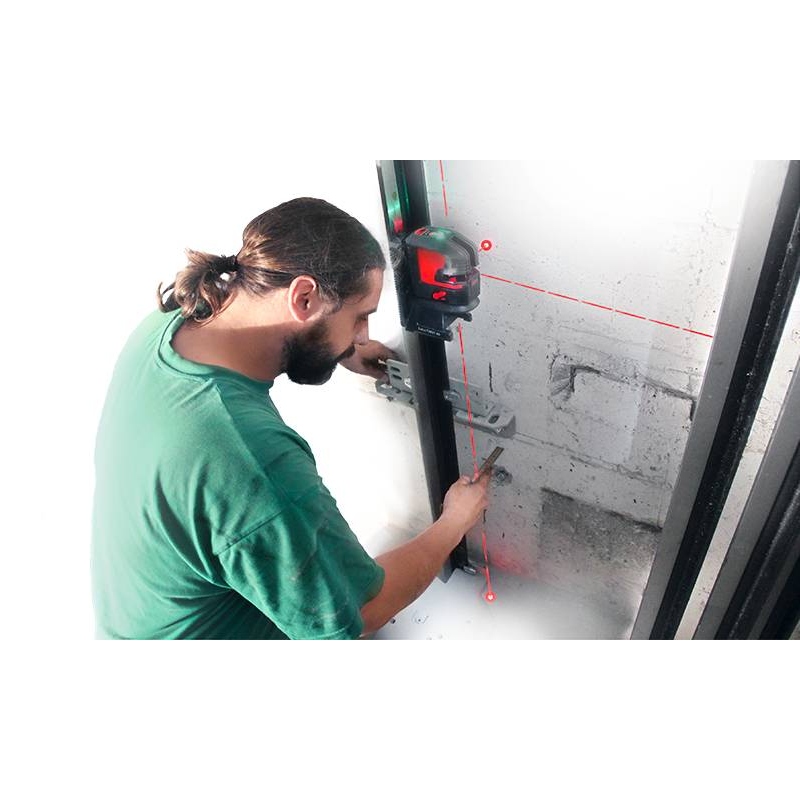

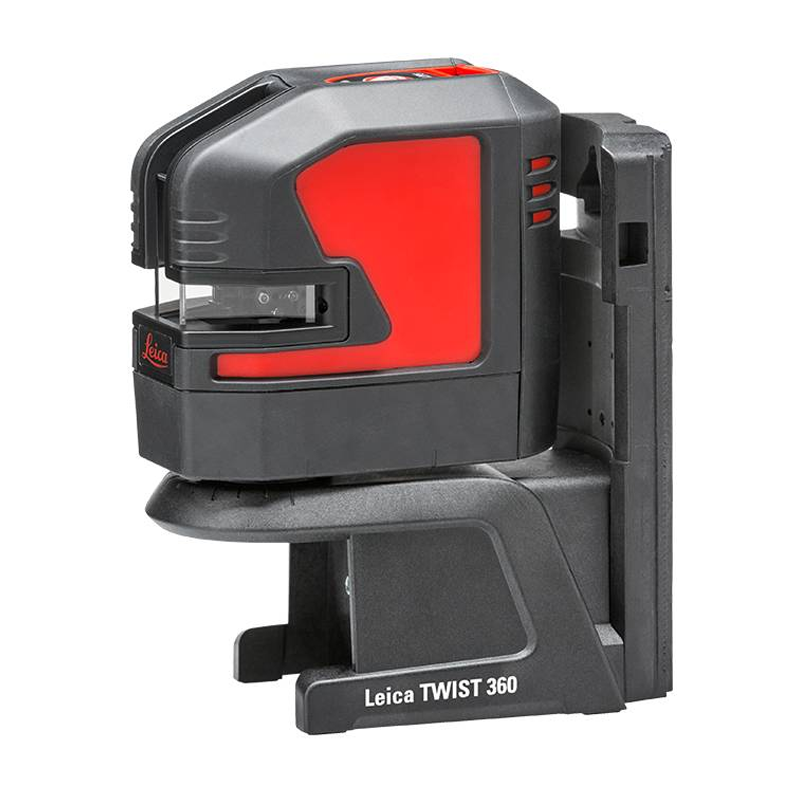

Magnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.
SELF-LEVELLING
The Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.

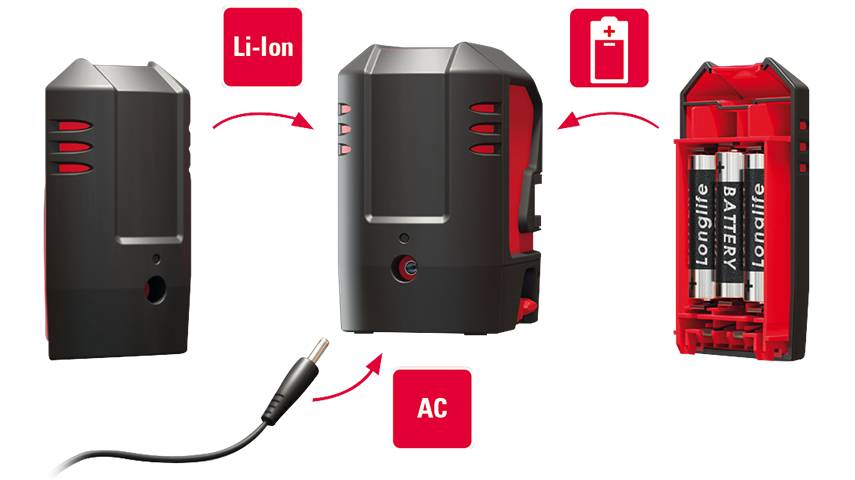

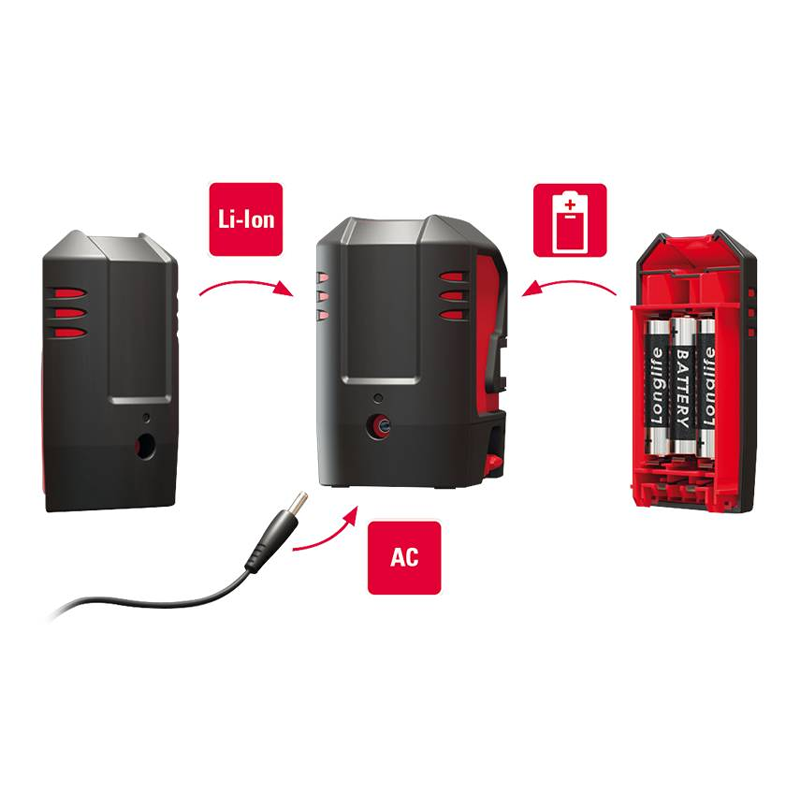

TRIPLE POWER CONCEPT
The Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.
RUGGED DESIGN
The Leica Lino P5 is dust and spray water protected to IP 54 standards. This makes it a tough instrument suitable for all your jobs.
Specifications
| Range | up to 30 m depending on lighting conditions |
| Levelling accuracy | ± 0.2 mm / m |
| Self-levelling range | ± 4 ° |
| Self-levelling time | < 3 s |
| Number of laser dots | 5 |
| Beam direction | up, down, forward, right, left |
| Dot accuracy | ± 0.2 mm / m |
| Laser type | 635 nm / class 2 (red) |
| Battery type | AA 3 x 1.5 V (optional Li-Ion) |
| Operating time | up to 37 h (AA) depending on laser mode |
| Temperature range storage |
-25 to 70°C (-13 to 158°F) |
| Temperature range operation | -10 to 50°C (14 to 122°F) |
| Protection class | IP 54 |
| Dimensions | 110 x 60 x 100 mm |
| Weight with batteries | 495 g |
| Tripod thread Lino | 1/4" |
| Tripod thread adapter | 1/4" + 5/8" |
| Art. No. | 864427 |
| EAN / UPC | 7640110697566 |
| Number of points | 5: Up, Down, Forward, Left, Right |
