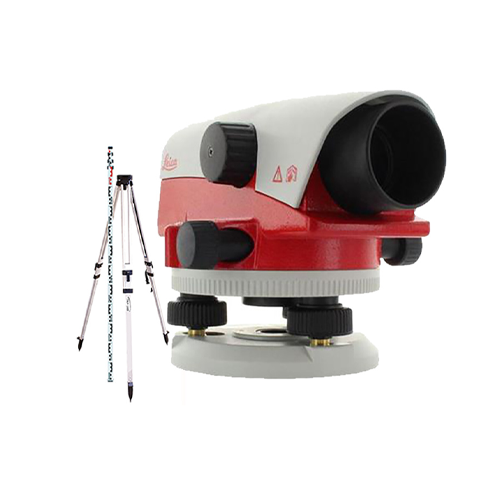

LEICA NA720 Leveling Instrument

incl. tripod and leveling staff 4 meters

A Leica NA700 level instrument stops at nothing.
A slight fall to the ground, falling into water, vibrating machinery, with the NA700 you just keep working.

Time-consuming checking or adjusting is not necessary. The best-in-class optics provide high accuracy.
accuracy. That means, less downtime, thus higher productivity, results in reliability and precision at an attractive price.

Each Leica NA700 series spirit level instrument is the result of a century of research and development done by the original companies Kern Swiss and WILD Heerbrugg. Continuous application of the most advanced technologies made Leica Geosystems what it is today.

In terms of precision and reliability, our measuring instruments have a legendary reputation on the construction site.

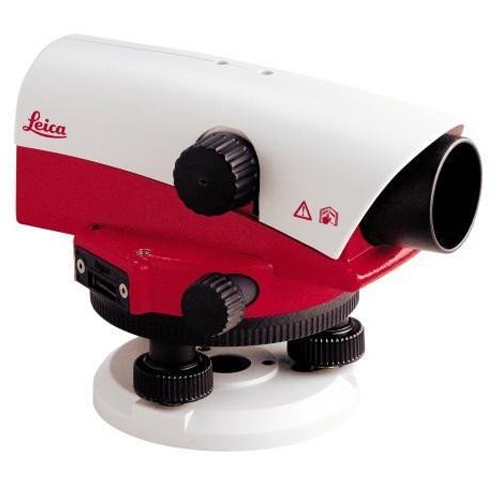

Model NA720
Image Upright
Magnification 20x
Objective diameter 30 mm
Field of view at 100m < 2,1 m
Shortest distance to target < 0.5 m
Multiplication factor 100
Compensator working range ±15'
Adjustment accuracy < 0,5
Horizontal edge reading 400 GON
Sensitivity of the vial 10'/2 mm
Standard deviation for 1 km double leveling 2.5 mm
IP classification IP 57
Threaded connection 5/8"

Scope of delivery
Leica NA720
incl. Tripod and leveling staff 4 meters
