€385,00

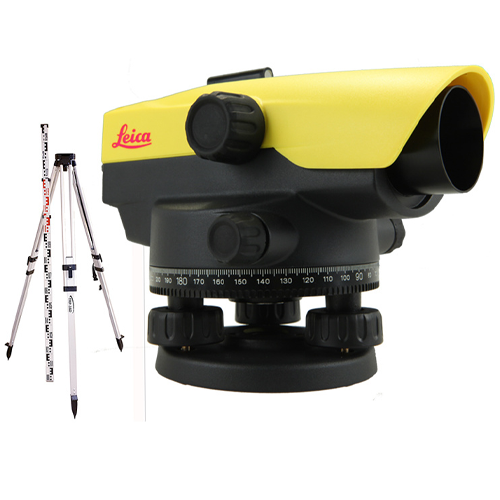

Leica NA520 Spirit Level Instrument with 360° Horizontal Edge
Accurate. Focused. Protected.
Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers
Whatever your need, basic or more, Leica levels are your answer
With a unique design, these levels produce the highest quality results at the best price value
The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level
The Leica NA500 Series is ruggedly made to withstand the harshest elements
These levels, while highly accurate, provide quick and easy measurements
Rely on the known expert knowledge of Leica Geosystems with more than 260 service centers worldwide ready to support you
Unbeaten warranty and service offering
Leica Geosystems offers solutions for all your construction needs
Leica NA532 honoured with iF Design Award 2016
The newly-released Leica NA532 level has received an iF Design Award 2016. The Leica NA532 level was entered in the product discipline for the industry/skilled trades category. Read more about the award and what the product designer has to say about this recognition in the Leica Geosystems Blog.
Leica | NA520 | NA524 | NA532 |
Standard deviation for 1 double km of water leveling(ISO17123-2) | 2.5 mm | 1.9 mm | 1.6 mm |
Viewer | |||
viewer image | upright | ||
Magnification | 20 x | 24 x | 32 x |
Objective aperture | 36 mm | ||
shortest measurement distance from instrument | < 1.0 m | ||
Image at 100 m | < 2.1 m | ||
multiplication factor | |||
Additive constant 0 | 0 | ||
Compensator | |||
operating range | ± 15’ | ||
setting accuracy ( standard deviation) | |||
sensitivity | 8’ / 2 mm | ||
Horizontale Edge | |||
Degree | 360° | ||
Interval | 1° | ||
Weight (net) | 1.5 kg | ||
operating temperature | –20°C to +40°C |
