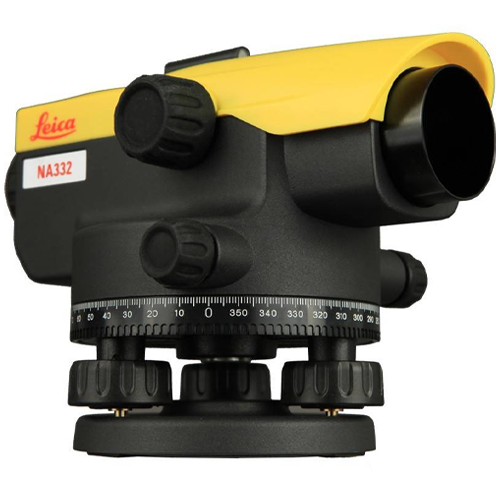

Leica NA332 Set with tripod and spirit level 3 metres. The device has a 360° horizontal edge
UNIQUE.
Whether you´re facing basic demands or you need more support, the unique design of the Leica NA300 Series of automatic (optical) levels can meet you wherever you are in the building and construction field. With a better protected shape, these rugged levels offer increased ergonomic handling while ensuring you receive the highest quality results at the best price value.
ACCURATE.
Leica NA300 Series levels have been engineered for daily levelling tasks. Whatever the need, these levels measure with the highest precision and accuracy. These automatic (optical) levels provide the highest in both while being ergonomic in their handling and rugged for daily use in the harshest conditions.
SIMPLE.
A perfectly designed mirror makes it extremely easy to adjust the horizontal level with the highest possible accuracy and confidence. The Leica NA300 Series levels - along with all our automatic (optical) levels - are made for everyday use for any site.
PROTECTED.
More than 270 Leica Geosystems Service Centres worldwide ensure you work with complete peace of mind, wherever a construction site is located on the globe. Leica Geosystems offers unbeaten service with all of its NA Series levels. The IP54 standard ensures the highest quality measurements even in the most challenging environments.
Key Benefits:
Leica | NA320 | NA324 | NA332 |
Standard deviation for 1 double km of water leveling(ISO17123-2) | 2.5 mm | 2.0 mm | 1.8 mm |
Viewer | |||
viewer image | upright | ||
Magnification | 20 x | 24 x | 32 x |
Objective aperture | 36 mm | ||
shortest measurement distance from instrument | < 1.0 m | ||
Image at 100 m | < 2.1 m | ||
multiplication factor | |||
Additive constant 0 | 0 | ||
Compensator | |||
operating range | ± 15’ | ||
setting accuracy ( standard deviation) | |||
sensitivity | 8’ / 2 mm | ||
Horizontale Edge | |||
Degree | 360° | ||
Interval | 1° | ||
Weight (net) | 1.5 kg | ||
operating temperature | –20°C to +40°C |
