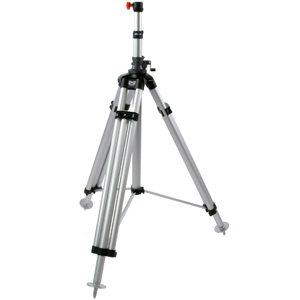

Heavy machine control tripod
MQH175A130-2 up to 325 cm height.

ATTENTION: Transport length only 130 cm

Heavy aluminium tripod with self-braking gear drive for machine control and interior design (also available with flat legs)

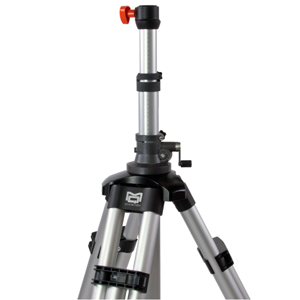

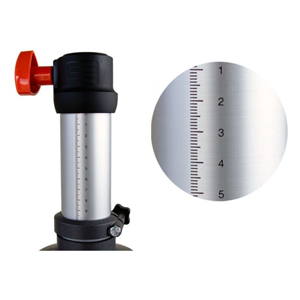

Swiveling center column of Ø 50 mm with self-braking gear drive to 322 cm

And another extendable part in the middle column can be pushed up another 70 cm.

- The figure 1 behind the Type means that this is with a flat leg (MQH438)

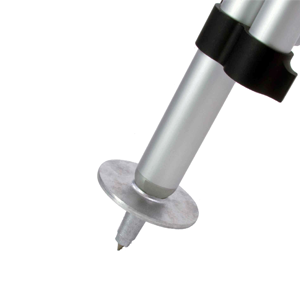

- The number 2 behind the Type means that this is with a point leg.(MQH202)

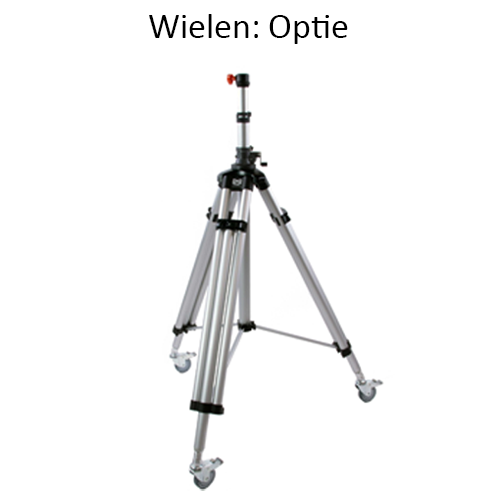

- The number 3 behind the Type means that it is with wheels (MQH230).

The tripod is available with several adapters to which the instrument can be screwed.

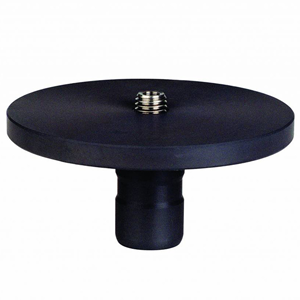

Adapter MQA206 is shown large and is included.

Technical data:

Max, height 325 cm
Min. height 120 cm
Rotatable central column Ø 50mm 60 cm
Max. weight instrument: 15 kg
Transport length: 130 cm
Tube diameter legs 45 mm
Weight: 13.1 kg
