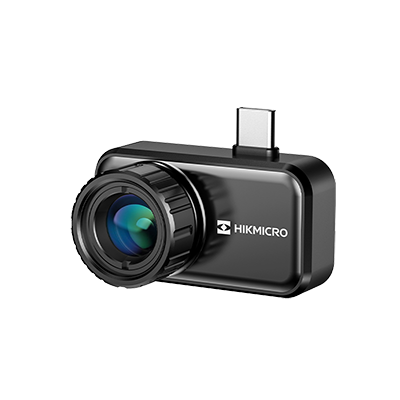

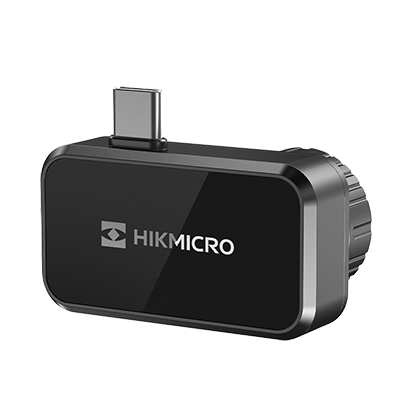

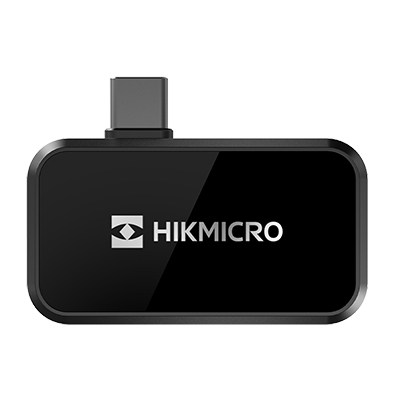

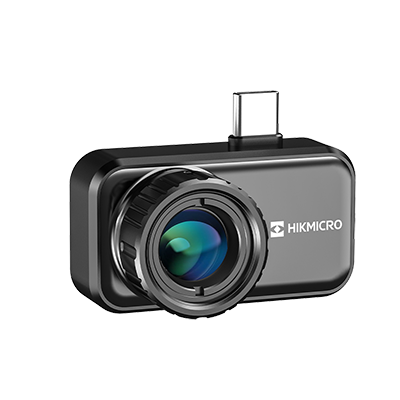

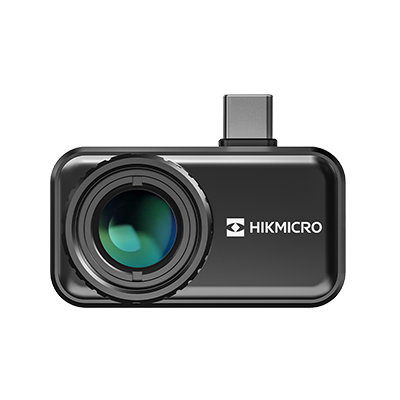

Hikmicro Mini3 Smartphone thermal image camera

With 384 x 288 thermal resolution

This smartphone module is designed to inspect electrical equipment, troubleshooting HVAC problems etc. With a functional thermal App for smartphone, the smartphone module enables you to get the thermal image on your phone.

Specifications:

Thermal (IR) resolution: 384 x 288 (110,592 pixels)

NETD: < 30 mK (@ 25 °C, F#=1.0)

Image frequency: 25Hz/50Hz

Detector Pitch: 12μm

Spectral Range: 7.5 to 14 μm

Focal Length: 10mm

F-number: F1.0

Field of View (FOV): 26° x 19°

Min. Focus distance: 0.3m

Accuracy: ±2 ℃ (-20 ℃ to 100 ℃) ±2% (100 ℃ to 650 ℃)

USB Type-C interface android

45g weight

Power consumption: 550 mW

Protection level: IP40

Drop test heigt: 1m

Working Temperature range: -10°C to 50°C

Storage Temperature range: -20°C to 60°C

Included:

Thermal image camera

Extension cord

Protective case

USB Adaptor

Quick start guide
