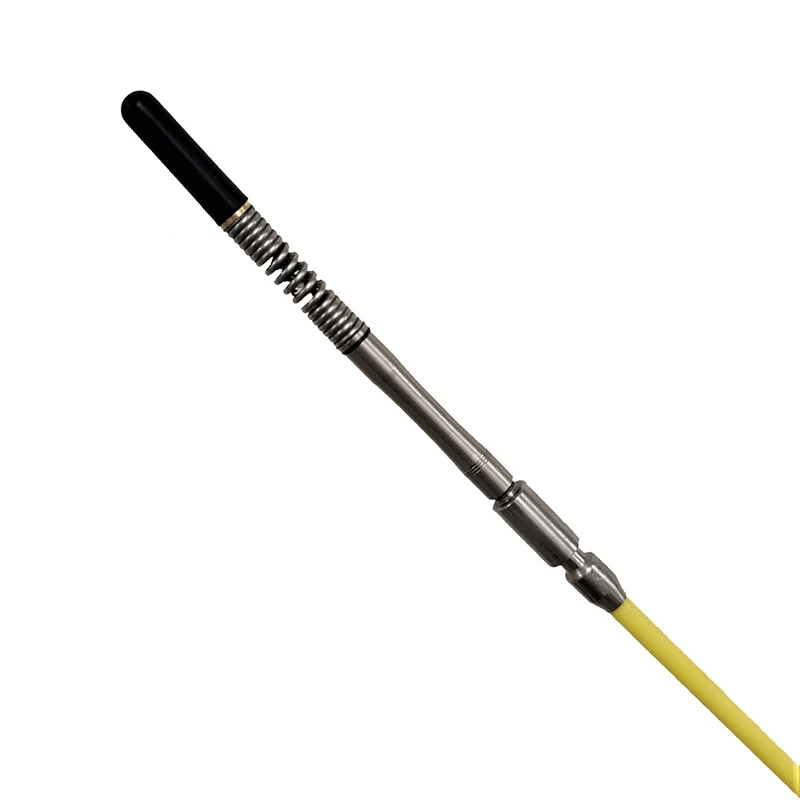

Vesala MicroSonde MPL6 (33kHz)

The Micro Sonde MPL6-33 for Locators is a compact instrument that tracks drains, sewers and other non-conductive utilities.

This Vesala microsonde consists of an M5 female thread that is easy to attach to equipment such as drain rods, boring tools, and inspection cameras.

It offers a range of up to 2,3meters and has an operating frequency of 33 kilohertz. Also, it works perfectly with the DD100 Series and the DD200 Series.Leica locators

Using the pipe transmitter sonde

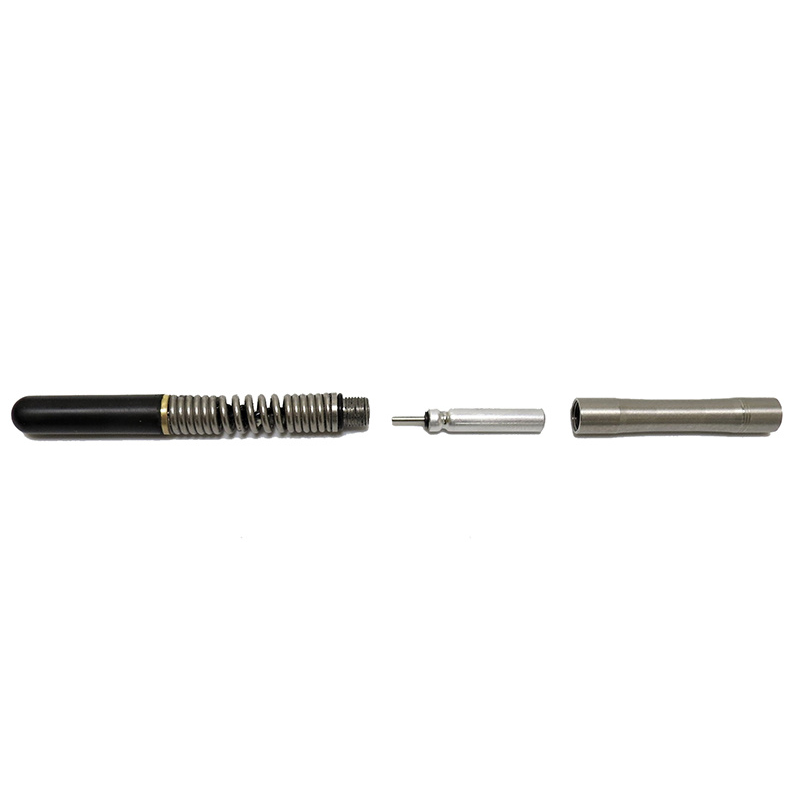

MPL6-33 powers on when the battery compartment is turned to the transmitter section. Sonde is attached to the push rod (snake) with the M5 threaded sleeve of the battery compartment or with tape. After that the sonde is pushed into the target pipe using the push rod.

To avoid loosing signal e.g. at corners the sonde is traced with a cable tracer receiver along as it moves ahead. If sonde hits an obstacle or blockage, it's possible to define the location and depth very accurately, which reduces unnecessary digging.-33 has a red power-on LED at the side of the sonde. LED goes off if battery is weak.

The MPL6-33 diameter is 6,4 mm and length with standard battery compartment 85mm. Transmitted signal is continuous 32.768 kHz.

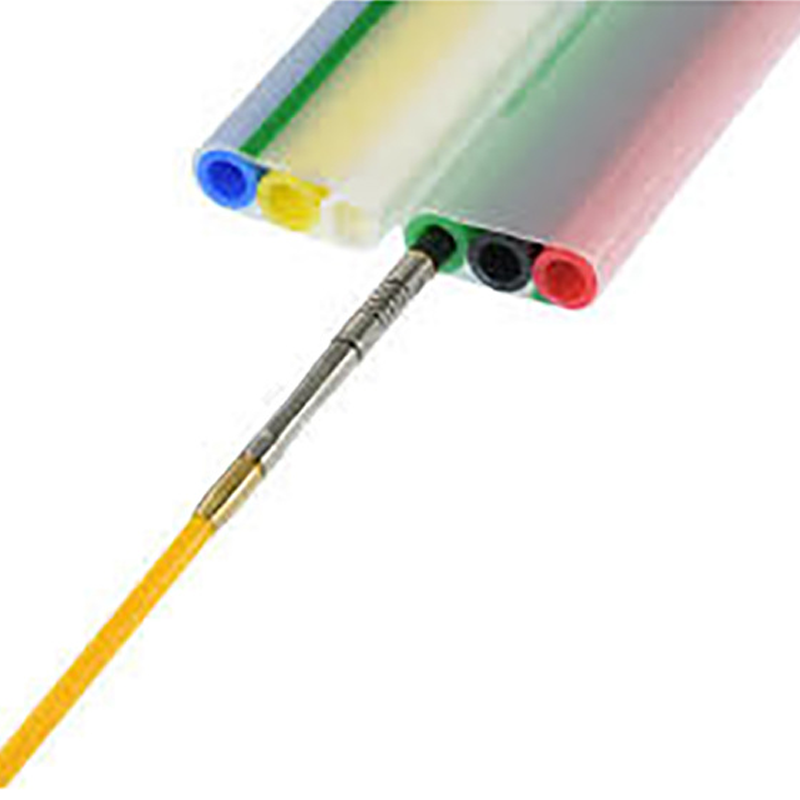

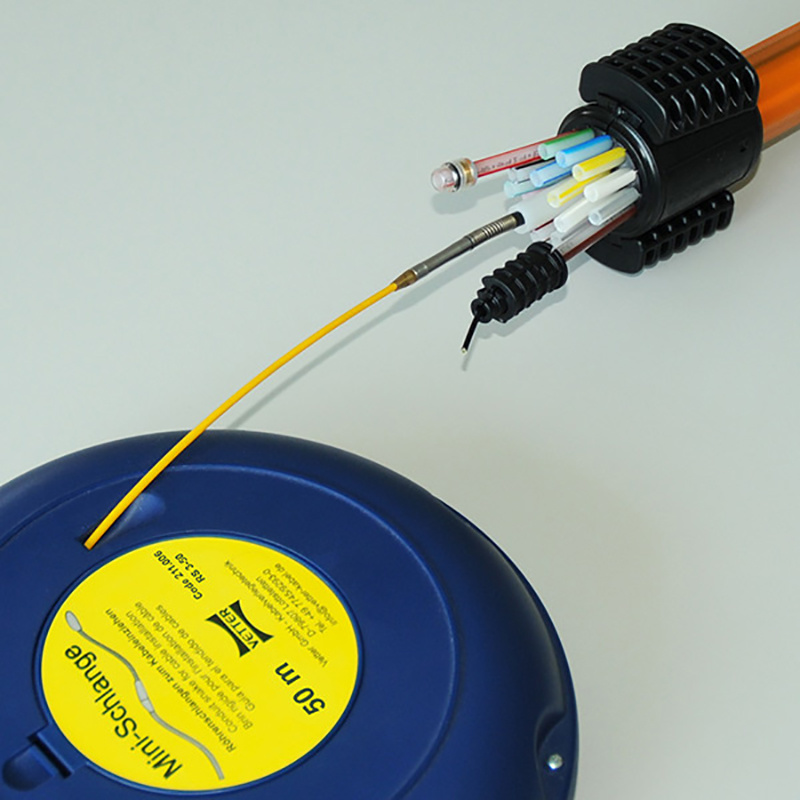

The Microprobe 33kHz with M5 thread can also be attached to the Rumpotec fiber optic extension spring with M6x0.75 (see this website) from 20 meters to 120 meters.

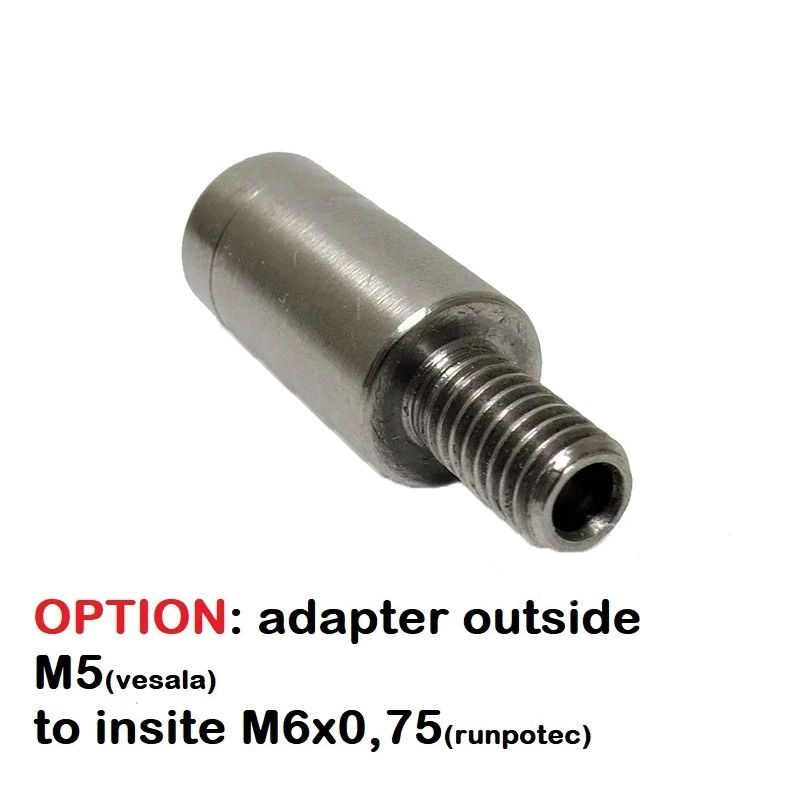

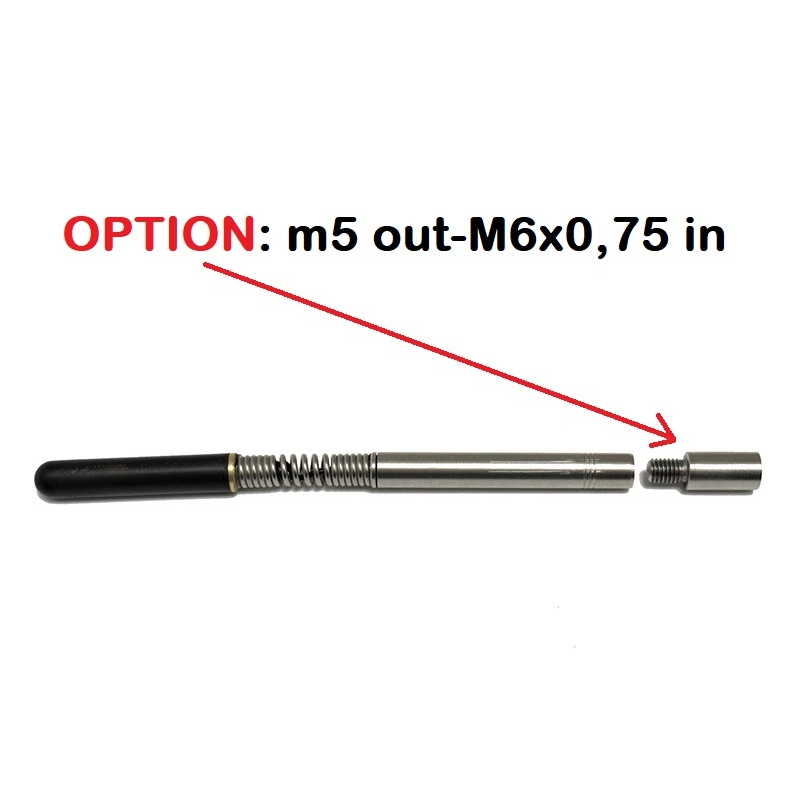

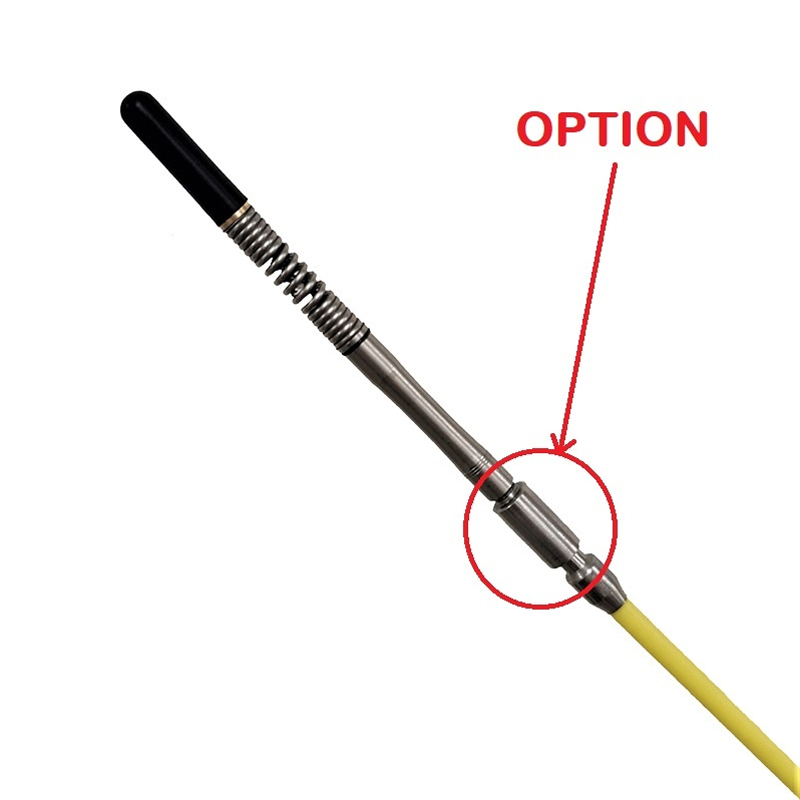

Various adapters are available (OPTION).

The batteries can bought in boxes off 10 pieces (OPTION) ( BR425) see Photo)

The livetime off the 3V Lithium batterie can be 6 till 9 hours.

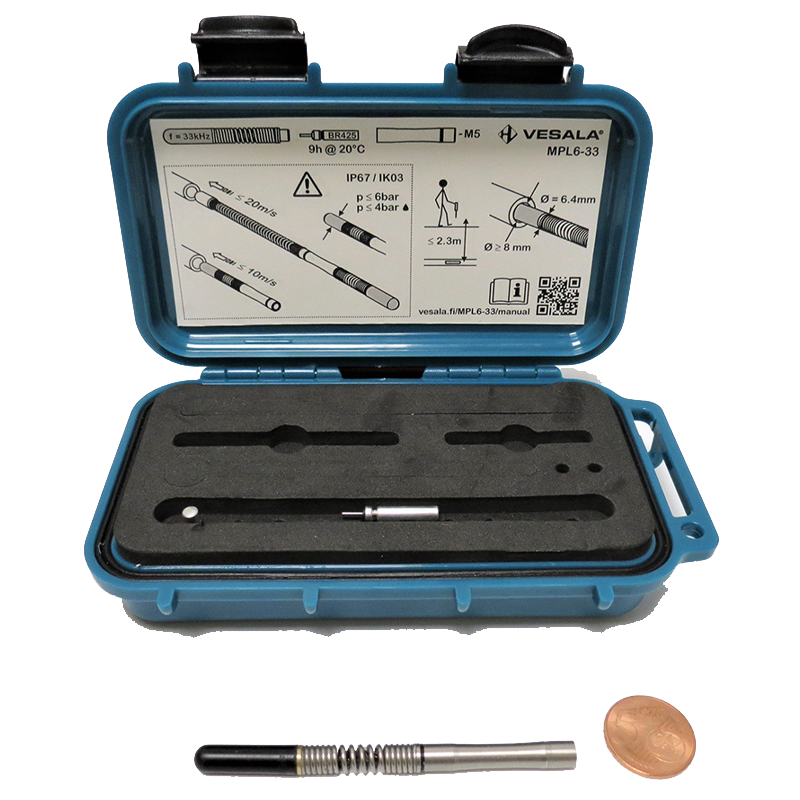

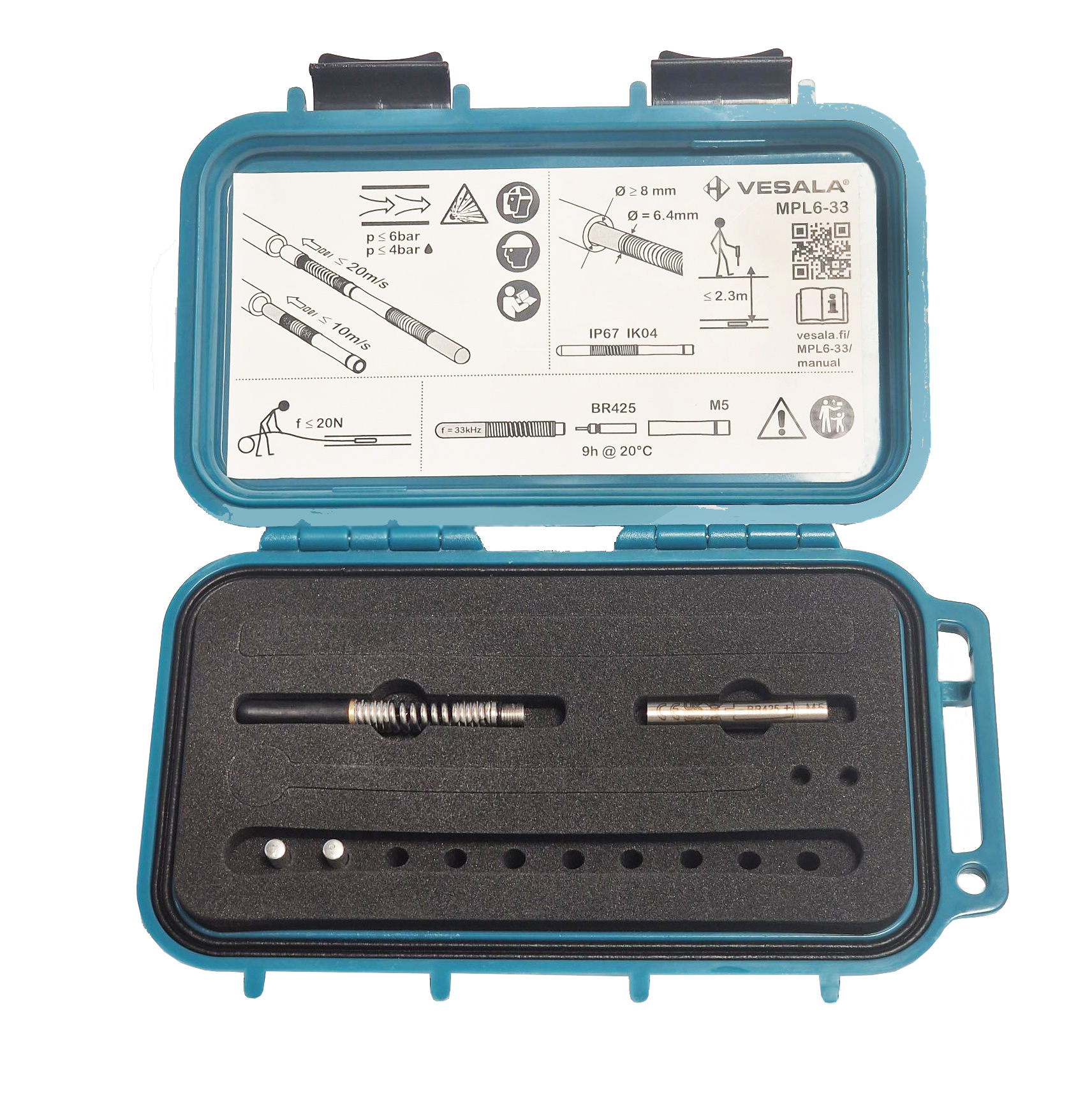

Scope off delivery:

• In plasic case
• Sonde
• 2x batterie ( BR425)
• manuel
