- Brand:
- MQ
- Article number:
- 16500406
- SKU number:
- GMM815L
- Availability:
- Out of stock
- Delivery time:
- on demand
€740,00

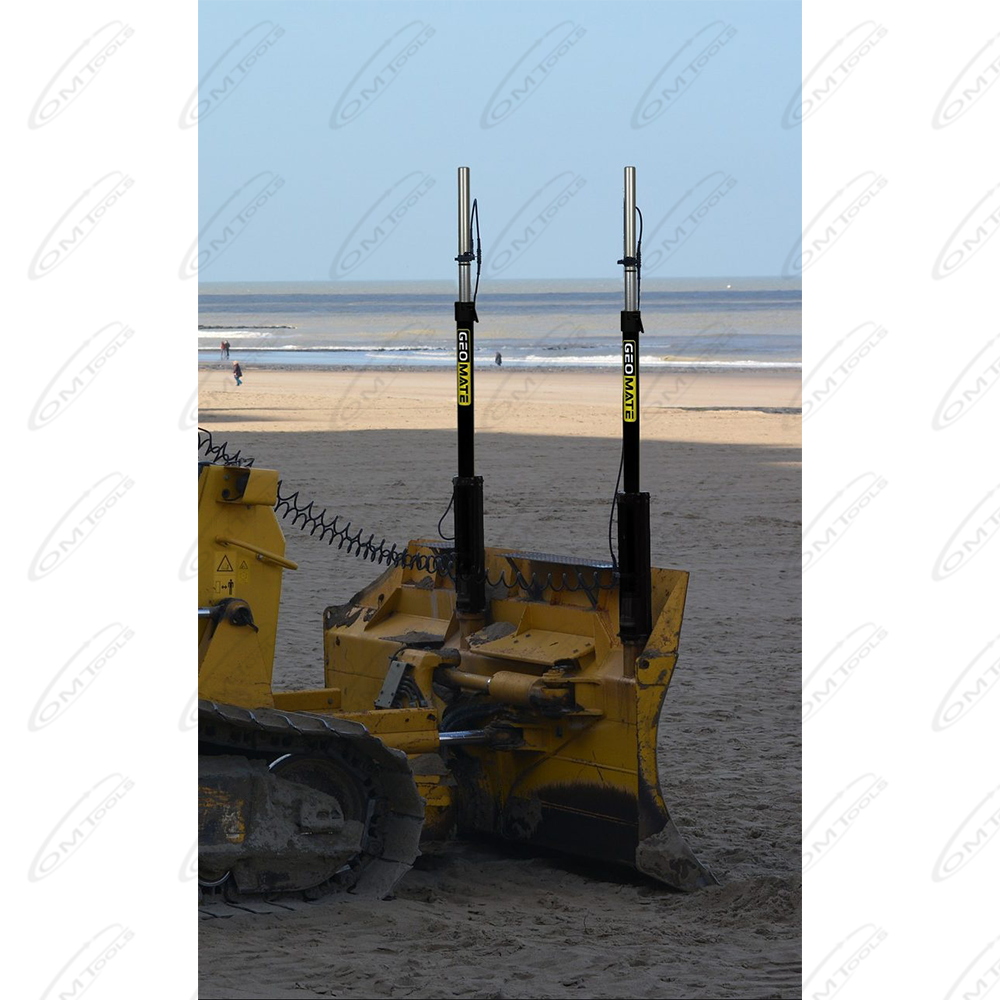

This MQ Mast Type MQ 815(GMM815) for machine control can be equipped with various attachments Type: C,B

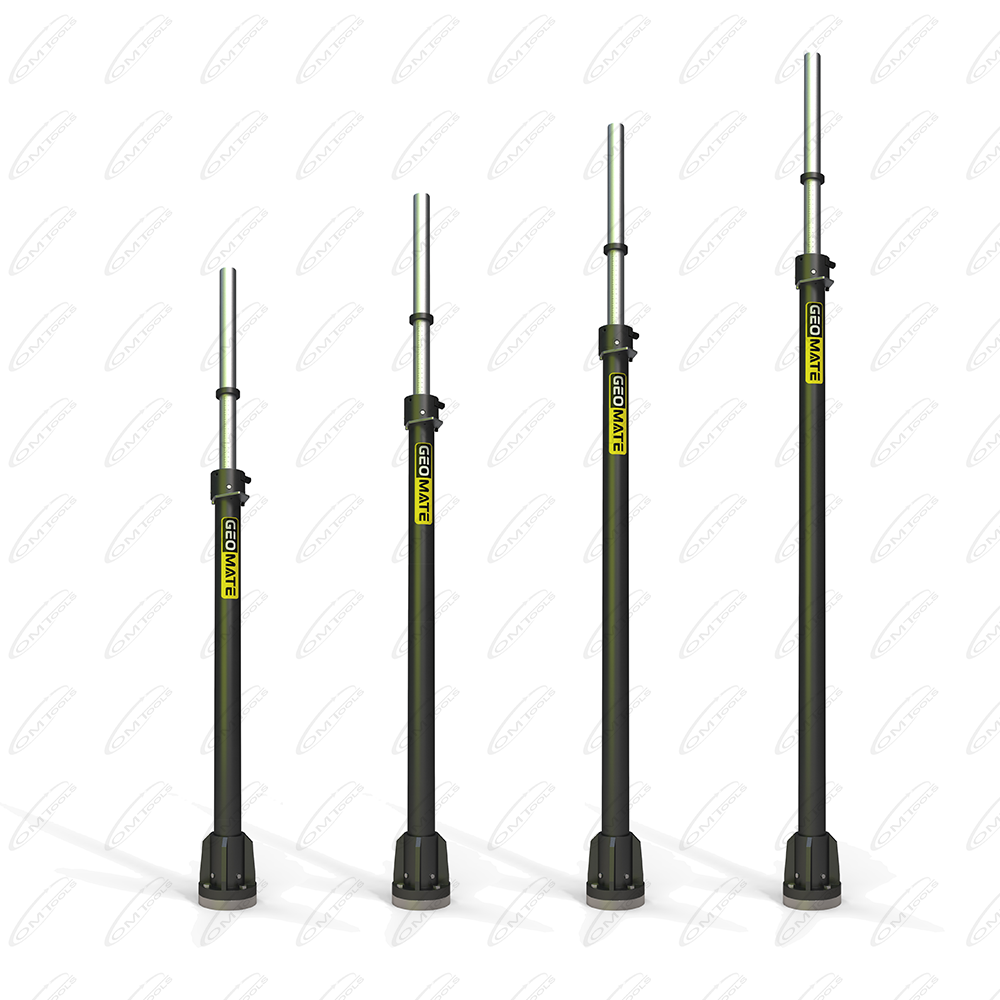

MQ Mast Type MQ 815 ( New name GeoMate GMM815)
New name: Geomate GMM815(L or S)
New colour: Black instead of Yellow

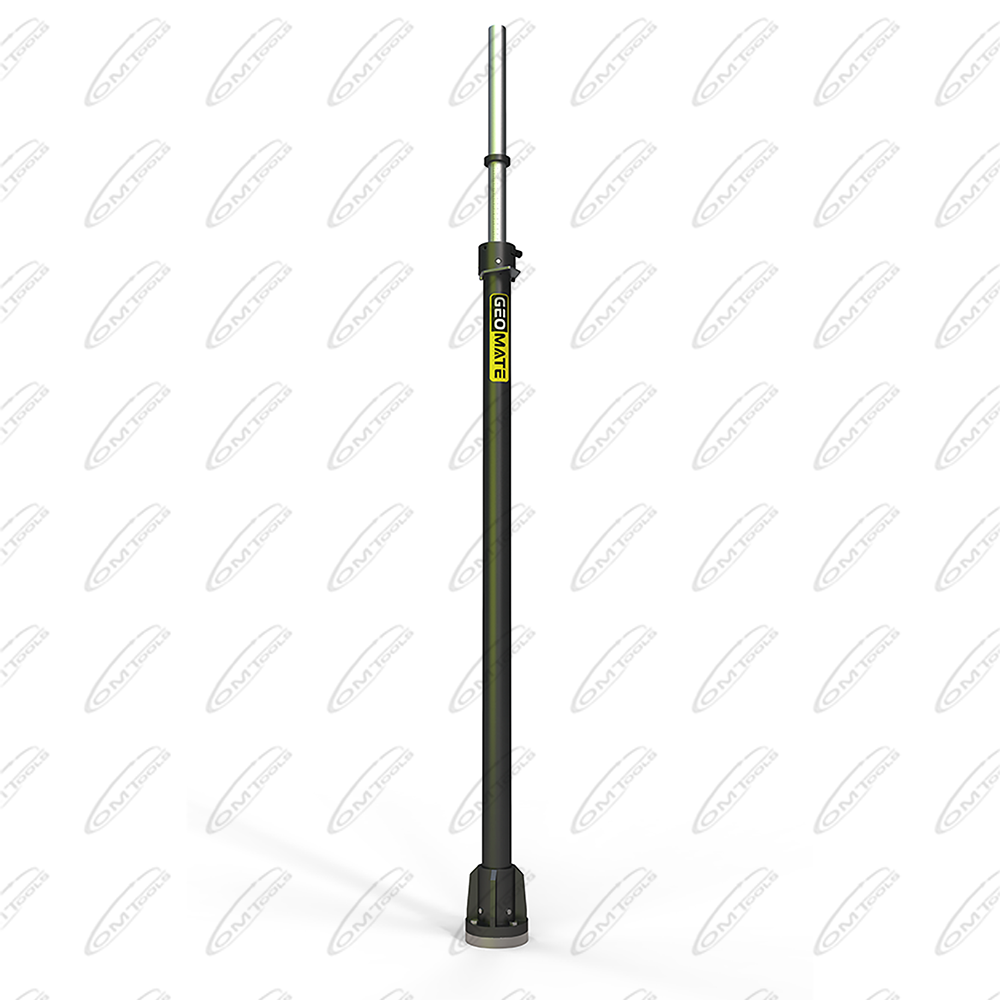

The MQ GMM815 manually adjustable mast has a length to the underside of the machine receiver of 1580 mm and can be extended by a further 900 mm for the L version.

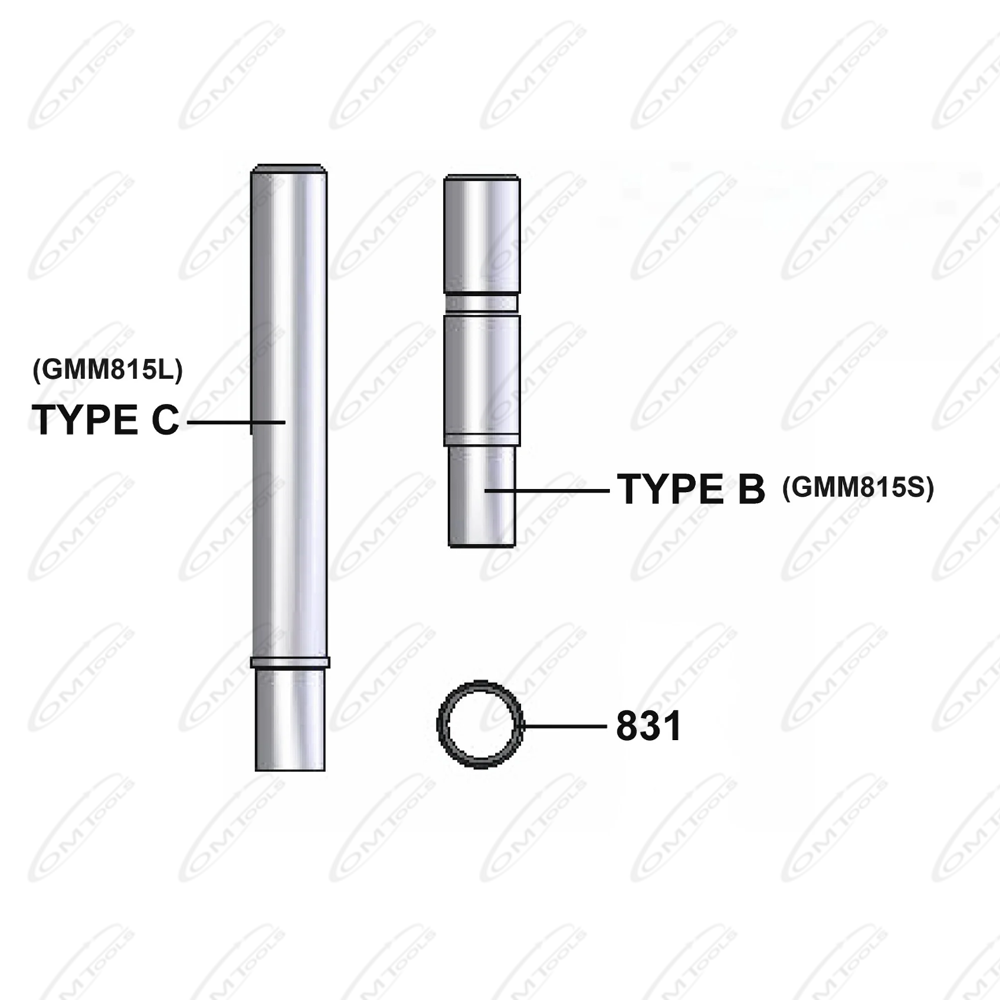

The mast can be fitted with various types of attachment, type C, B (see photo).
The foot has a diameter of 140 mm

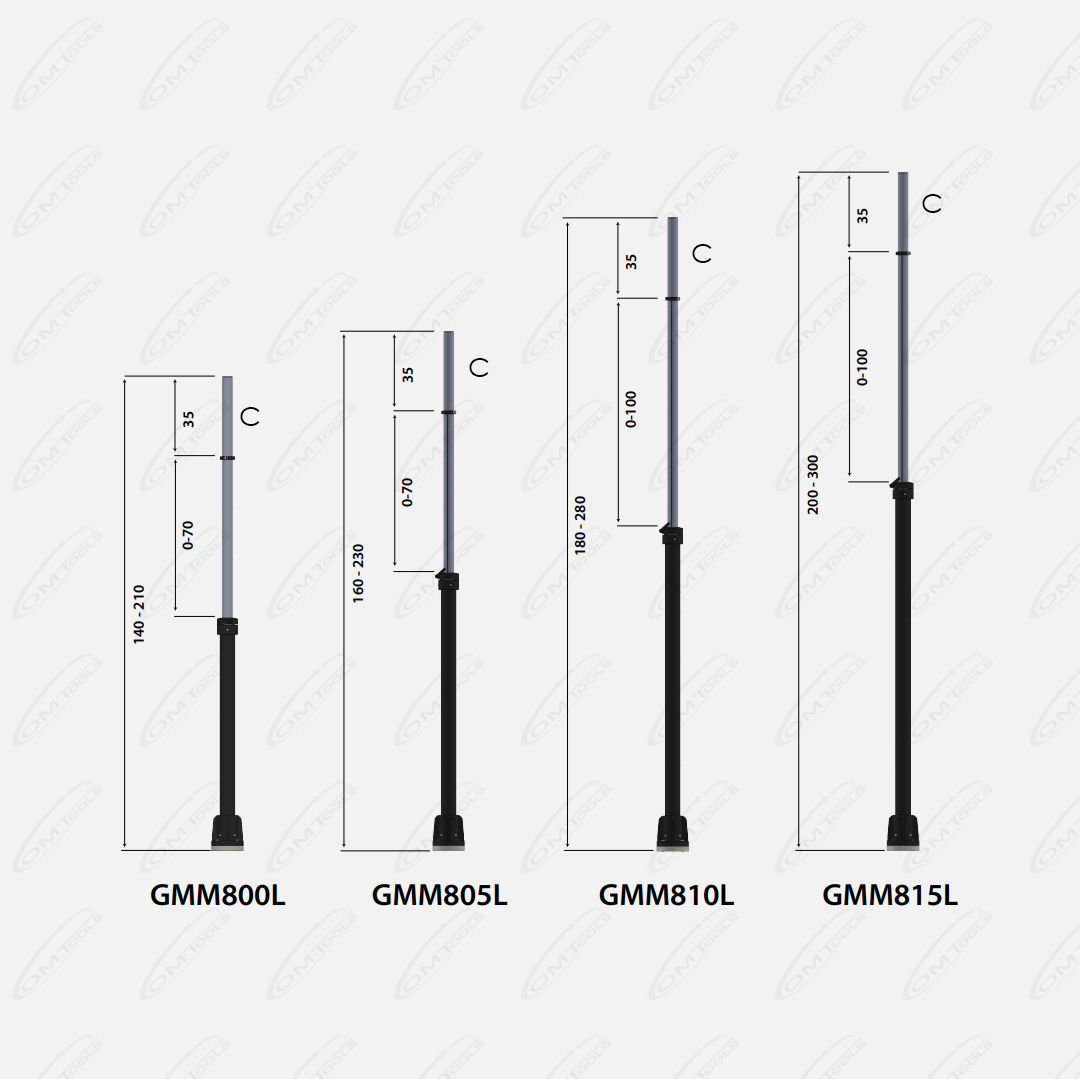

A: 1580 mm for GMM815L and 1400 mm for GMM815S (see photo)
B: 900 mm extendable( see photo)

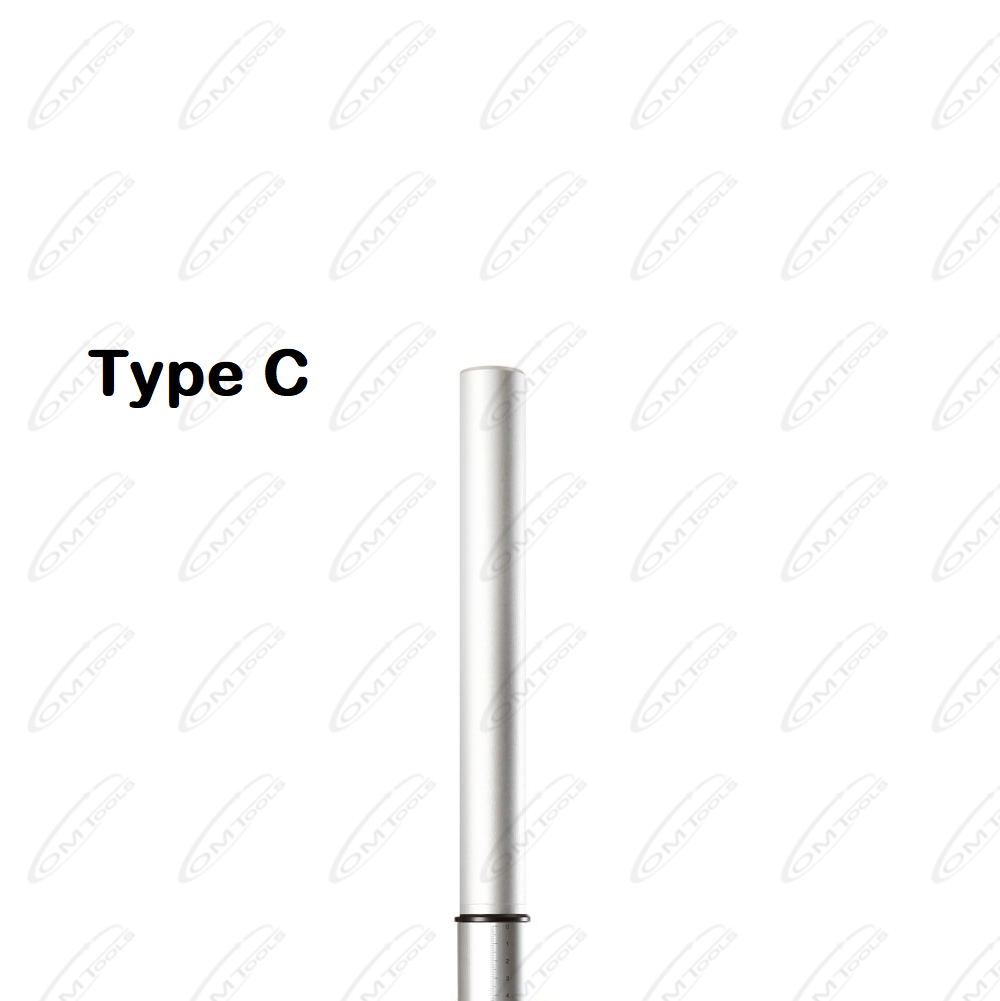

+Type C connection 34cm

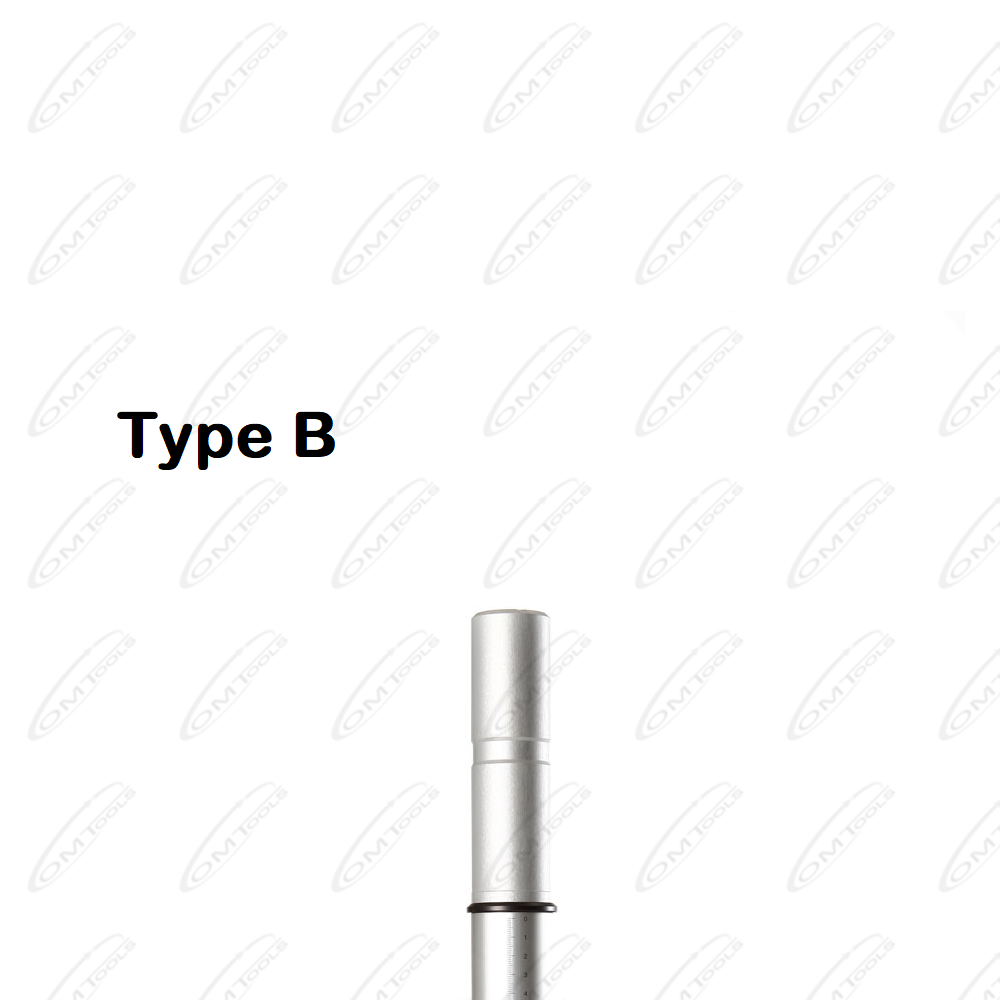

+Type B connection 16 cm
E: max. height GMM815S is 264 cm with Type B connection
F: max. height GMM815L is 282 cm with Type C connection
Transport length: 1950 mm
Weight: 17.3 Kg for L model and 16.5 Kg for S model
