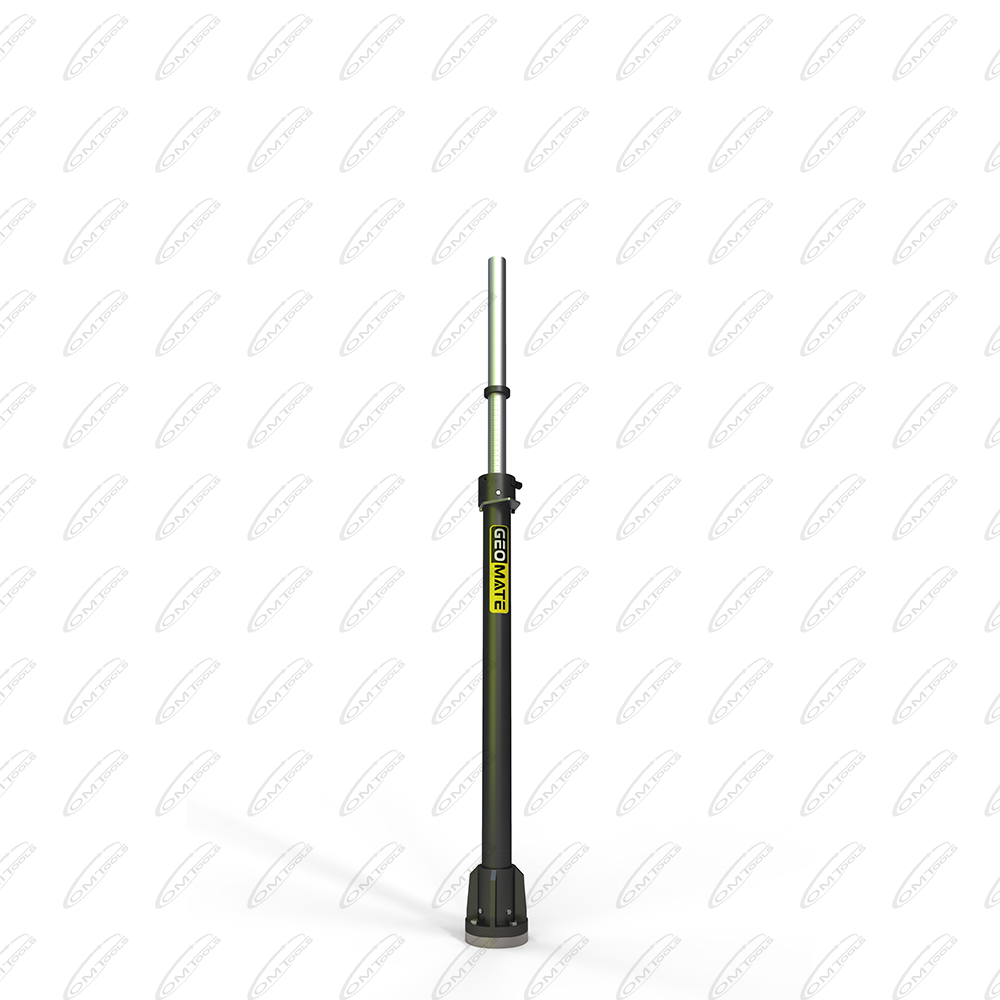

MQ Mast Type MQ 800

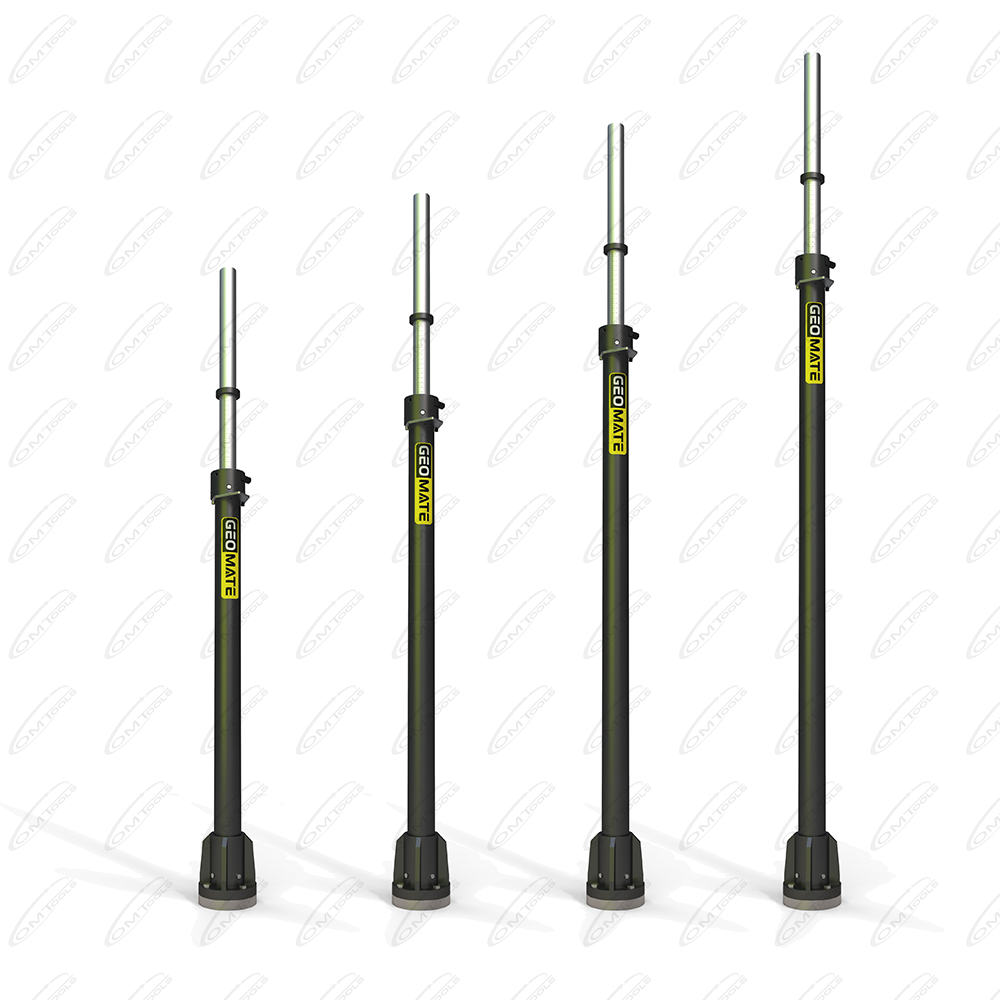

New name: Geomate GMM800(L or S)

The MQ Hand Adjustable Mast MQ 800-B or C has a length to bottom of machine receiver of 955mm and can be extended another 600mm.

The foot has a diameter of 140mm.

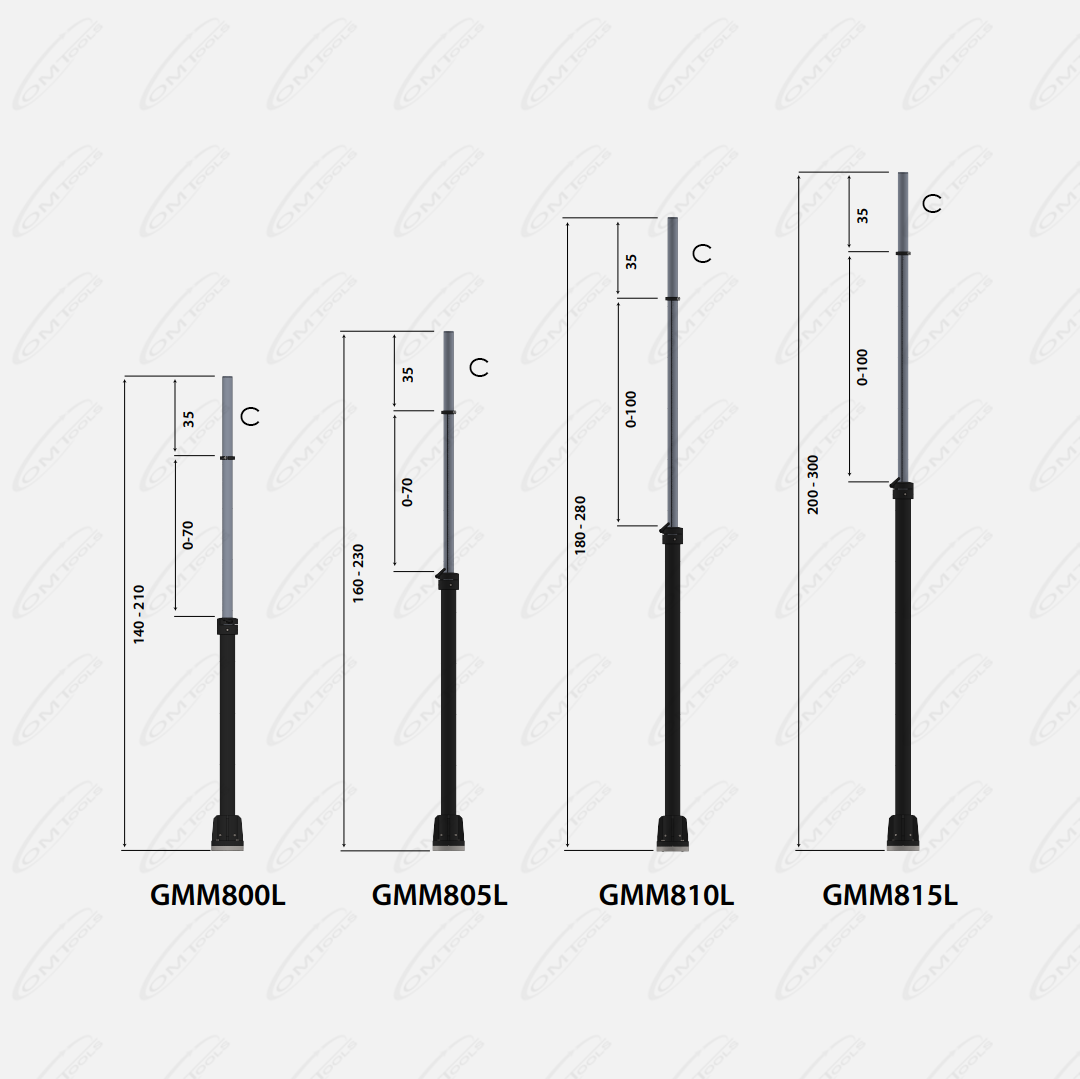

Minimum overall height MQ800 type B: 1140 mm (see table) or type C: 1340 mm

H: 955mm (see picture)

S: 600mm (see picture)

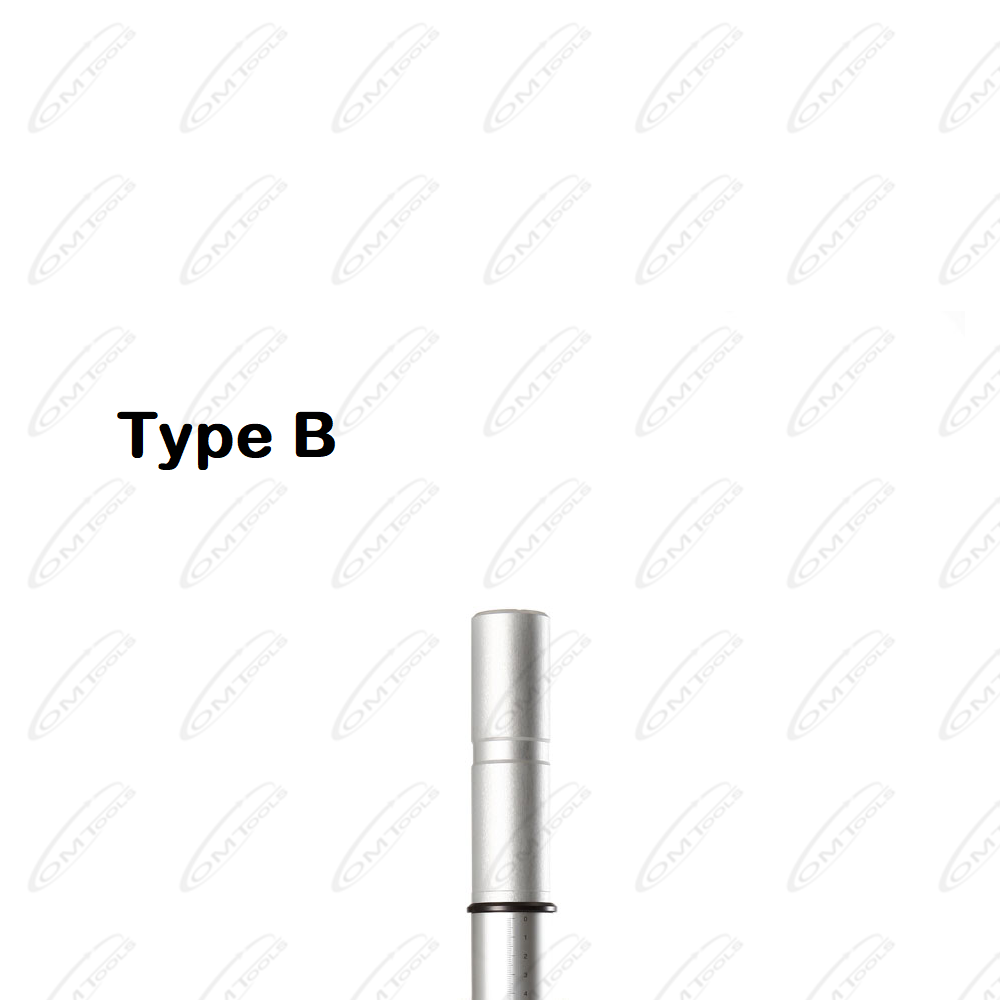

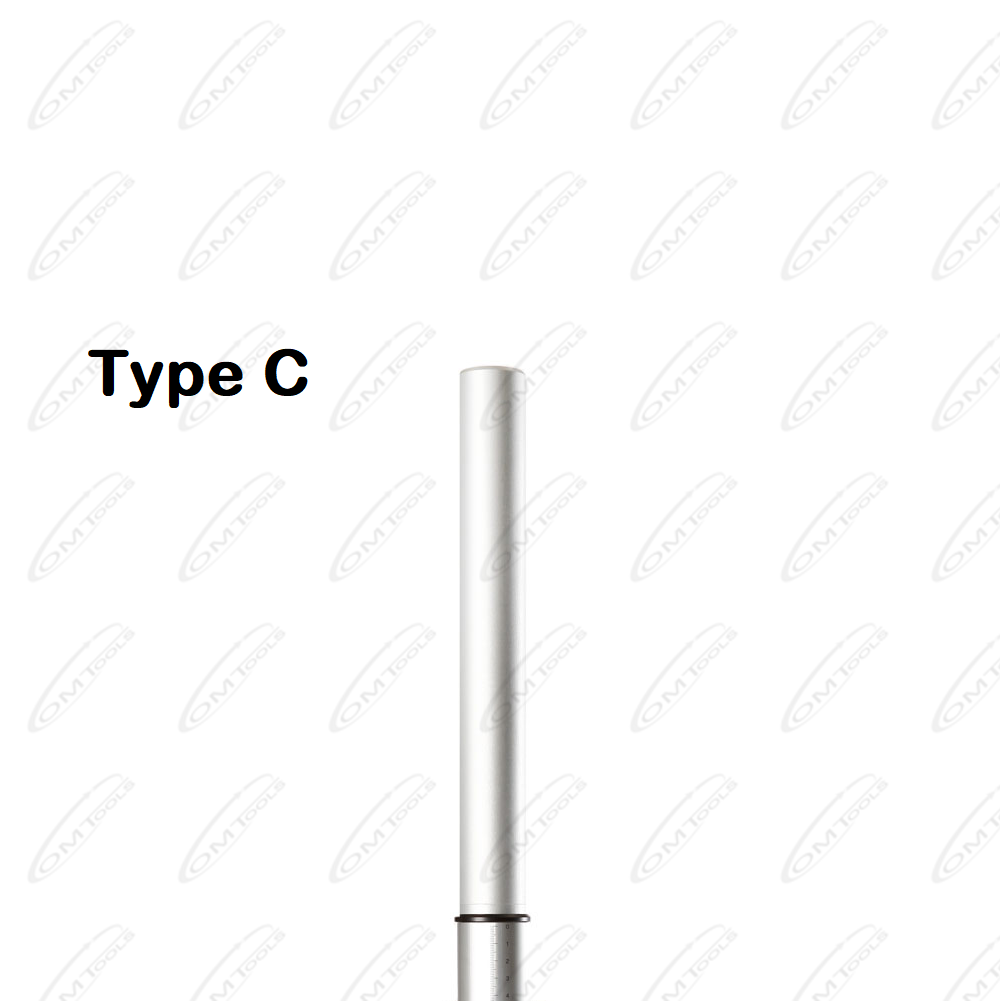

A: 160mm (see picture) or 340mm for type C mast (see picture)

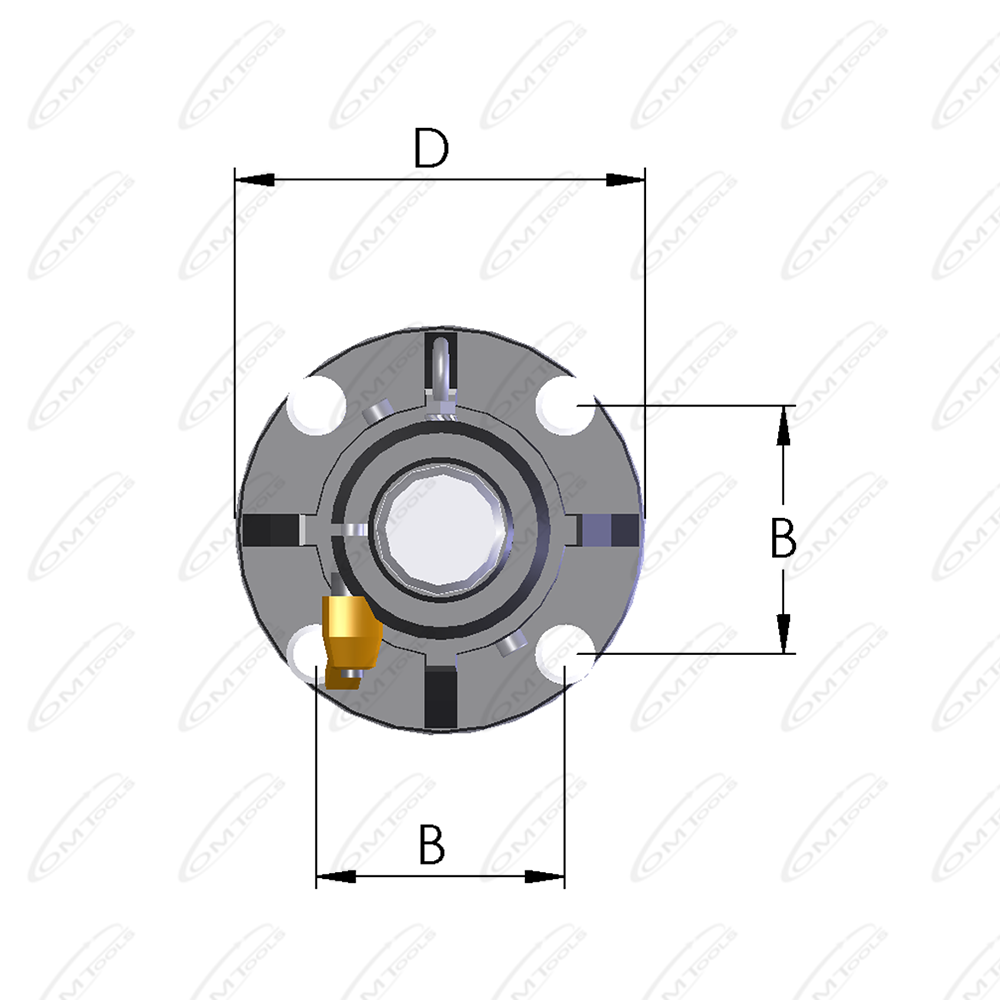

B: 85mm

D: 140mm

W: 25 mm (welding flange)

Transport length: 1140mm ( Type B ) or 1320mm ( Type C )

weight: 10,5 Kg
