Magna Trak 102 Magnetic Locator with Erase Function

Features
• Large and clear LC display
• The numeric value and the bar graph allow a visual estimation
   of the relative force of the magnetic field
• Display of electric fields when moving over an electricity cable
• Turning knobs (MT100)
• ERASE function (MT102 only): fading out disturbing magnetic
   fields without the need to reduce the sensitivity
• The complete pole is waterproof

Application
• Location of ferromagnetic objects in the ground, below water,
   black top and snow

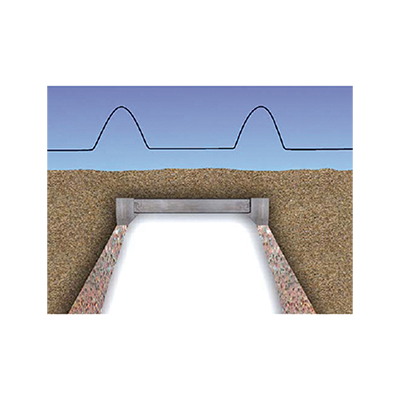

• Location of locking rods and manhole covers
• Location of iron survey pipes
• Location of points which have been marked magnetically

Technical data:

Surch depth                         Till 2,5 meter
Power supply                      6x 1.5 V AA batteries
Operating time                    Ca. 100 h normal usage
Loudspeaker                        High performance loudspeaker with rugged plastic cover
LC display                            Numeric digital value from 0 to 99, indication for low battery and                                               power cable detection
Operating temperature       -20°C to +50°C
Length                                 ca. 102 cm
Weight                                 1.3-2 kg with batteries
Housing                               Very rugged and water-proof plastic
Made                                    in USA

Scope of delivery:
• Magnetic locator MT102
• 6 AA batteries
• Protective bag
• Instruction manual
