HIKMICRO Hikmicro Macro Lens P201 for pocket1-2 thermal imaging camera
- Brand:
- HIKMICRO
- Article number:
- 1450934
- EAN number:
- 6974004641634
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€99,00
Excl. tax

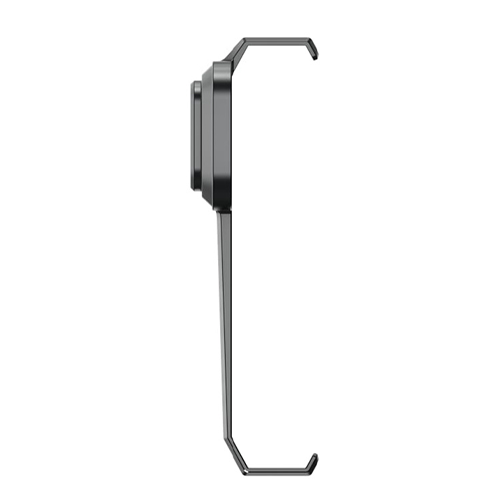

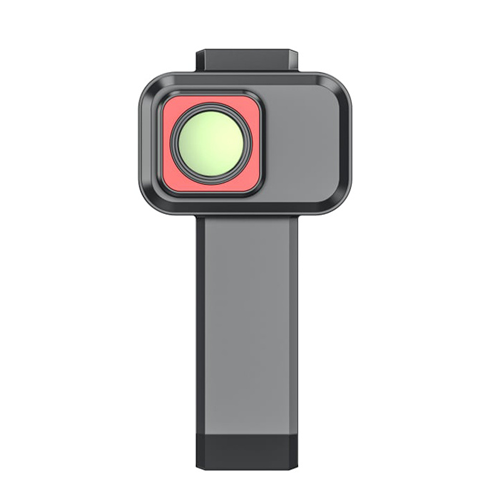

Hikmicro Macro Lens P201 for pocket1-2 thermal imaging camera
HIKMICRO HM-P201-MACRO
The HM-P201 is compatible with the Pocket series (Pocket1, Pocket2) thermal cameras
The HIKMICRO HM-P201-MACRO macro lens allows you to detect potential design flaws
evaluate PCB hotspots and inspect small electronic components.

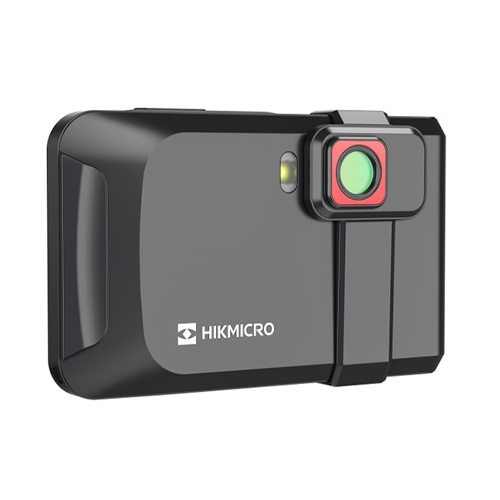

Easily clips onto the HIKMICRO Pocket series thermal imaging cameras.
| Temperature range | -20°C to 50°C (-4°F to 122°F) |
| Weight | 9 g (0.02 lb) |
| Dimensions | 44.2 mm × 25.16 mm × 87.2 mm (1.74" × 0.99" × 3.43") |
| Object Temperature range | -20°C to 150°C (-4°F to 302°F) |
| Accuracy | Max (± 3°C/5.4°F, ± 3%), for object temperature between 0°C (32°F) and 150°C (302°F) |
| Voice length | 4.1 mm |
| FOV (field of view) | 47.6° (H) × 36.1° (V) |
| IFOV (spatial resolution) | 2.93 mrad |
| Focusing distance | 30 mm ± 1 mm (1.18" ± 0.04") |
