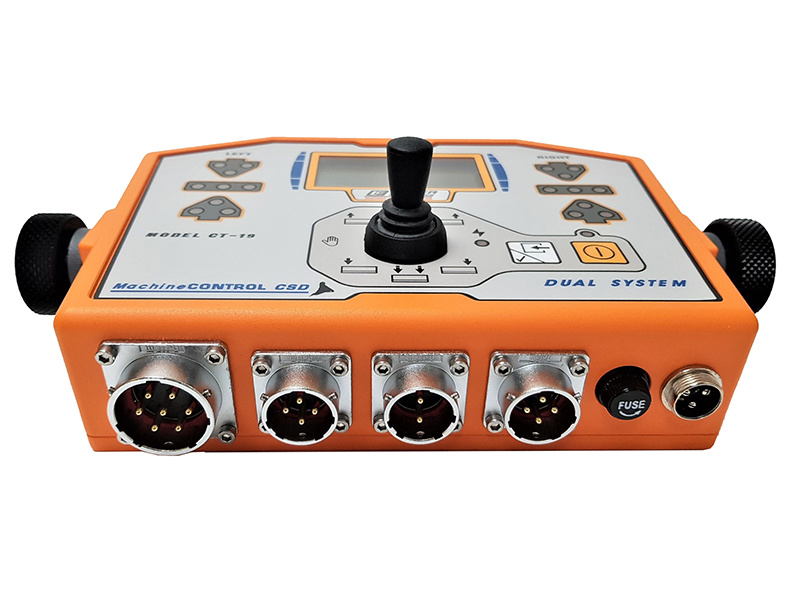

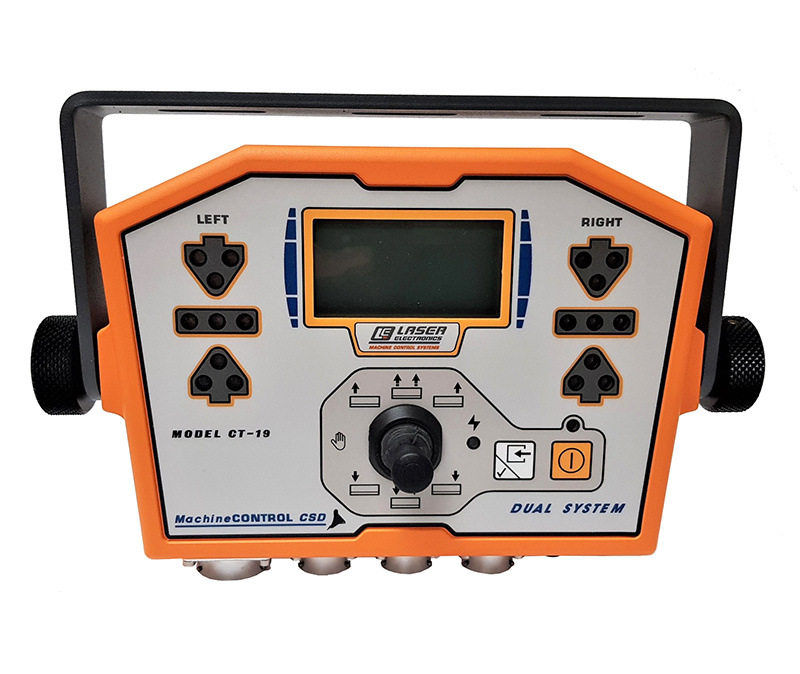

Features and Technical Specifications
- Aluminum Housing
- Attachable to all hydraulic systems
- Connection for 2 laser receivers
- User friendly programming interface
- Fully programmable frequency and PWM hydraulic outputs with short-circuit and overload protection
- Manual or automatic control

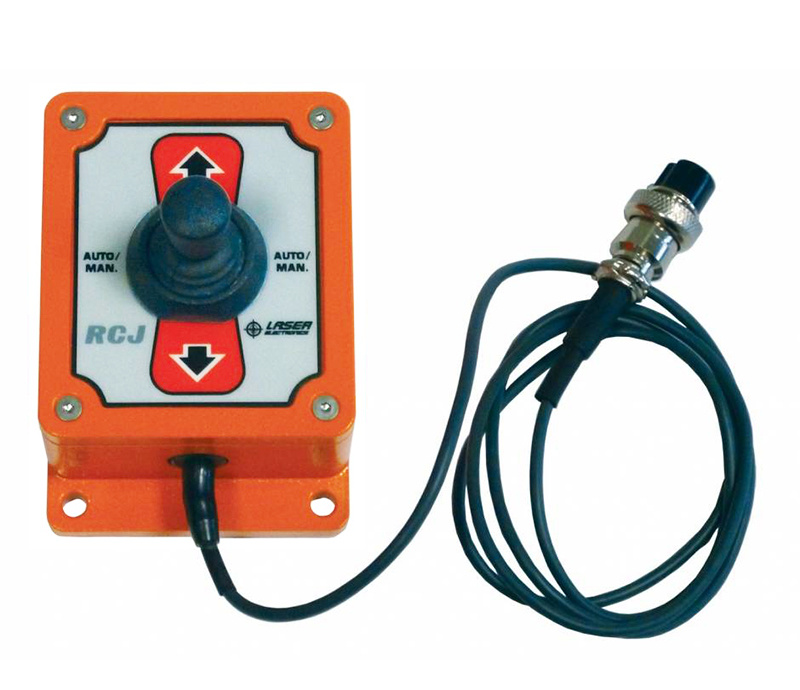

- Remote control (option)
- Easy to read LED-indication layout with adjustable brightness
- Hydraulic functioning indication
- On grade accuracy selection high-mid-low ( 2-5-12 mm)
- Mounting Bracket
- Great staying power under frequent and tough use
- Operating voltage 12-24V DC
- Operating temperature -15°C to +60°C
- Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
- Weight: 3kg
- Waterproof and shock resistant IP64

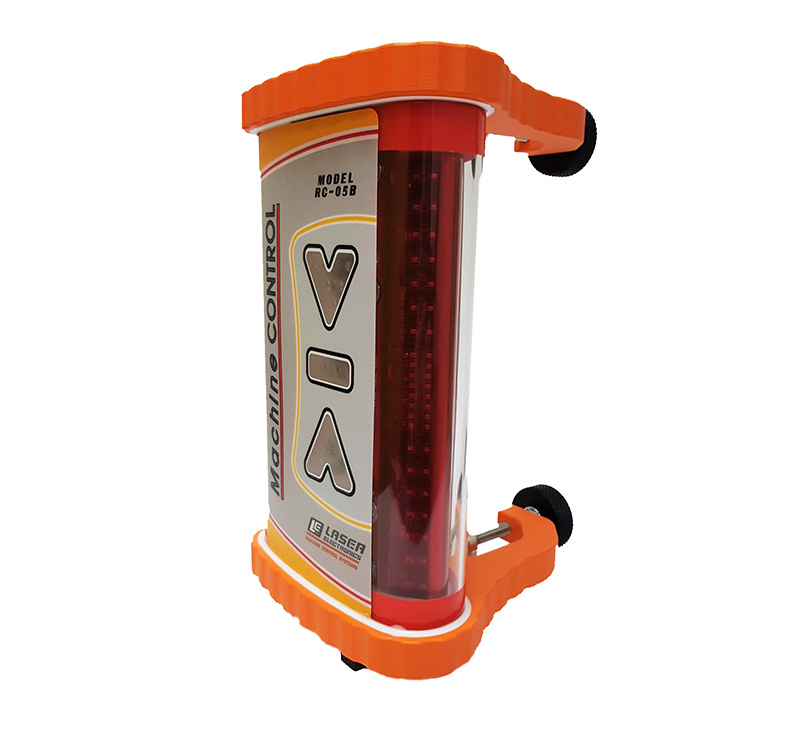

2x Laser Receiver AgriCONTROL or MachineControl
Features and Technical Specifications
- 8 Levels photocells for a better accuracy
- Three ‘’on grade’’ accuracies
- Constant reception accuracy regardless of operating distance, spot size and rotating laser type
- Min. operating rotating laser rpm: 300rpm
- Ultra bright indication with LED’s easy to view even in brightest sunlight
- Double stable bracket mounting
- Quick installation and easy mounting
- Detection range: 360°
- Operating range: 450m radius (depends on rotating transmitter)
- Operating voltage: 10-24V DC
- Operating temperature -15°C to +60°C
- Dimensions (mm): 162 (W) x 175 (D) x 272 (H) mm
- Weight: 2,3kg
- Waterproof and shock resistant IP65
