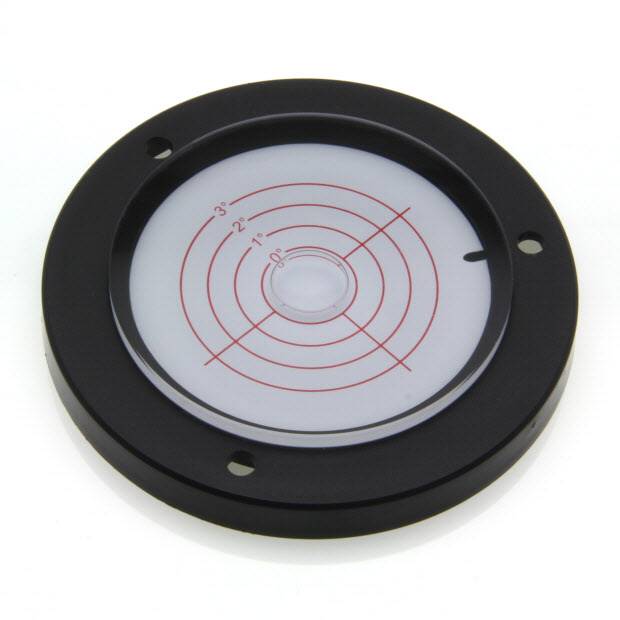

DNW100.3 very large professional round machine spirit level

( box level spirit level) round Ø100 mm diameter from 0 to 3° with fixing edge

Measures horizontally and angles up to 3

Waterproof

same sizes and dimensions as the DNW100.5

Applications:

Mobile cranes, plane leveling, excavators, etc.

Specification:

Overall Diameter Ø 100mm
Height 14.4 mm
Sensitivity 1 degree per 5 mm
Leveling material PNMA
Edge Material PC-ABS
Bubble size 12.1 mm
Smallest ring diameter 13 mm
Ring Colour Red
Liquid Colour Clear
working temperature -10 to +50° C

Storage Temperature--20 to +60 Degrees Celsius
