LaserElectronics CT-11 machine control
- Brand:
- LaserElectronics
- Article number:
- 12601200
- Availability:
- In stock (2)
- Delivery time:
- 1 - 7 Days
€1.595,00
Excl. tax

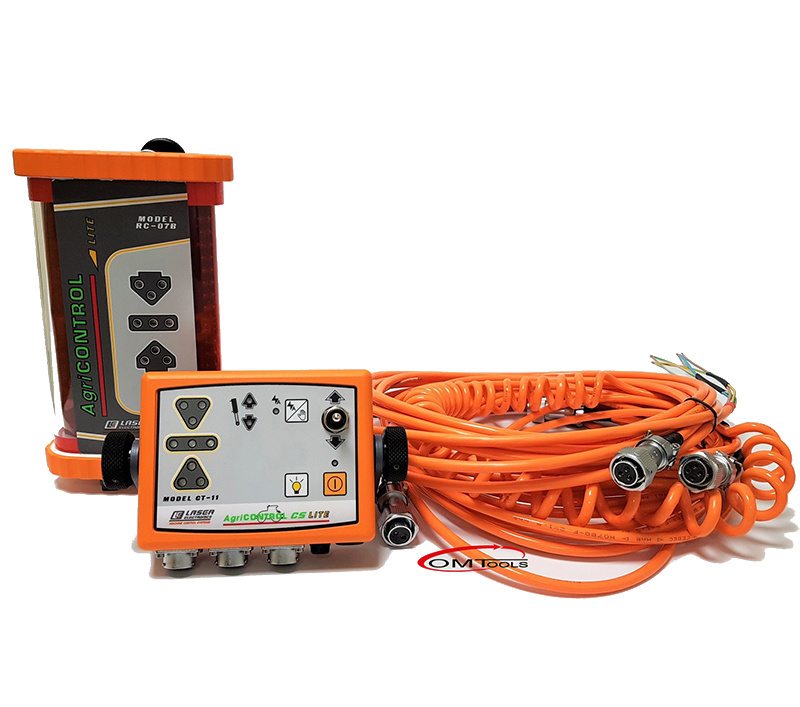

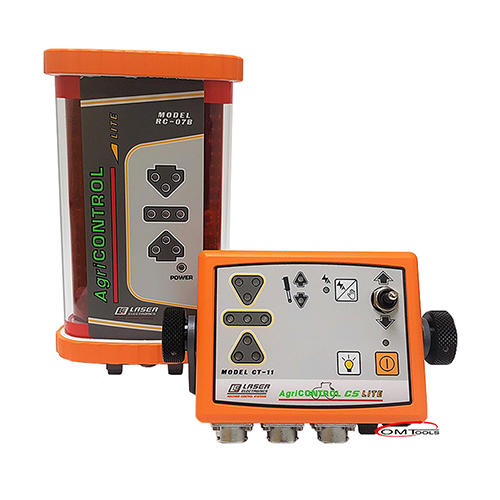

CT-11 machine control, complete with 5 channel receiver and control box incl. cables
AgriCONTROL CT-11
The AgriControl/ Machinecontrol Lite is the basic set for land levelling which combines simplicity, ease of use, durability and low price. It features all the basic things to get the job done on time and right.
- Easy to operate
- Durable and low in price
Applicable where horizontal, single or double slope is required.
Incl: Control unit Cu Lite, Machine receiver RC Lite, Cabling

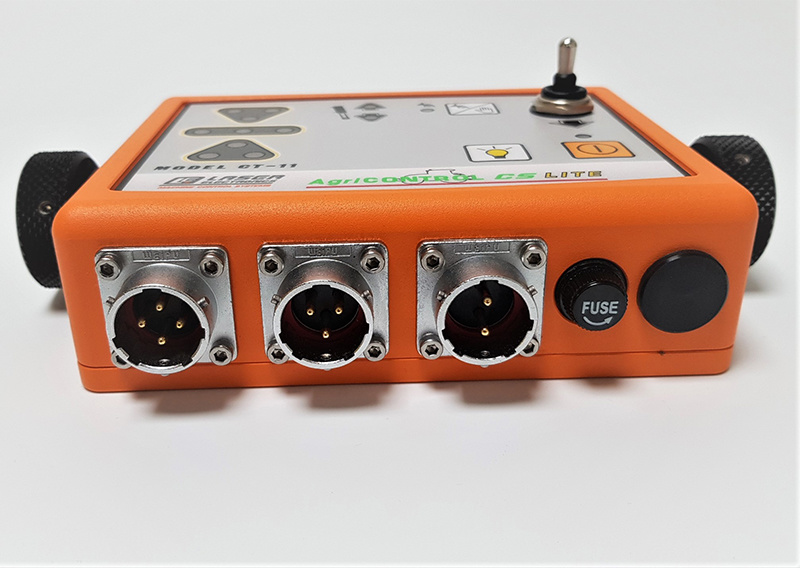

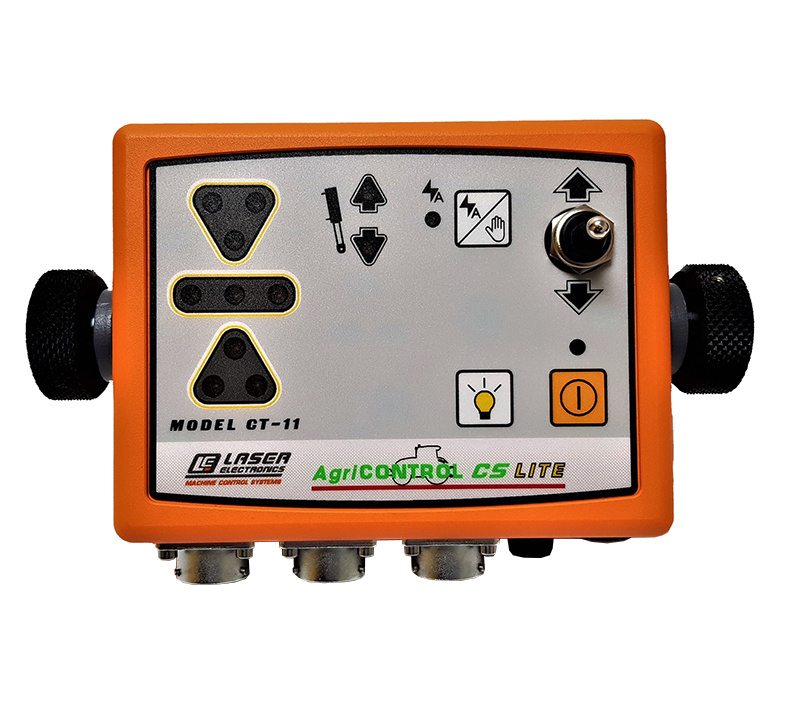

Control Unit Features:
- Aluminum Housing
- Attachable to all hydraulic systems
- Hydraulic outputs with short-circuit and overload protection
- Manual or automatic control
- LED grade indication
- Mounting Bracket
- Great staying power under frequent and tough use
- Operating voltage 12-24V DC
- Operating temperature -15°C to +60°C
- Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
- Weight: 2kg
- Waterproof and shock resistant IP64
Features machine receiver RC Lite:
- 5 Levels photocells
- Min. operating rpm: 300rpm
- Ultra bright indication with LED’s easy to view even in brightest sunlight
- Double stable bracket mounting
- Quick installation and easy mounting
- Detection range: 360°
- Operating range*: 450m radius (depends on laser transmitter)
- Operating voltage: 10-24V DC
- Operating temperature: -15°C to +60°C
- Dimensions control unit: 160(W) x 130(D) x 45(H) mm
- Weight: 1.55 kg
- Waterproof and shock resistant IP65
