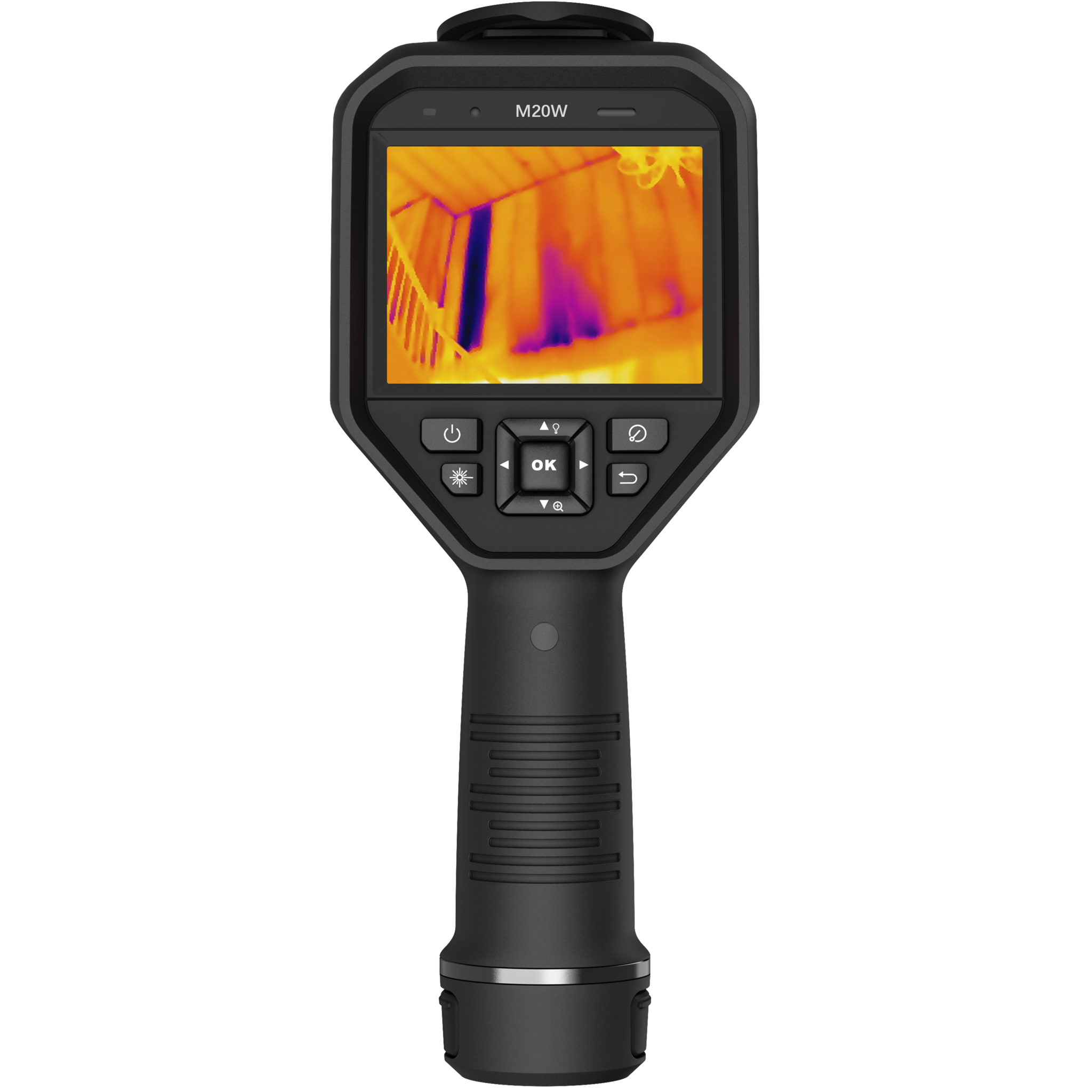

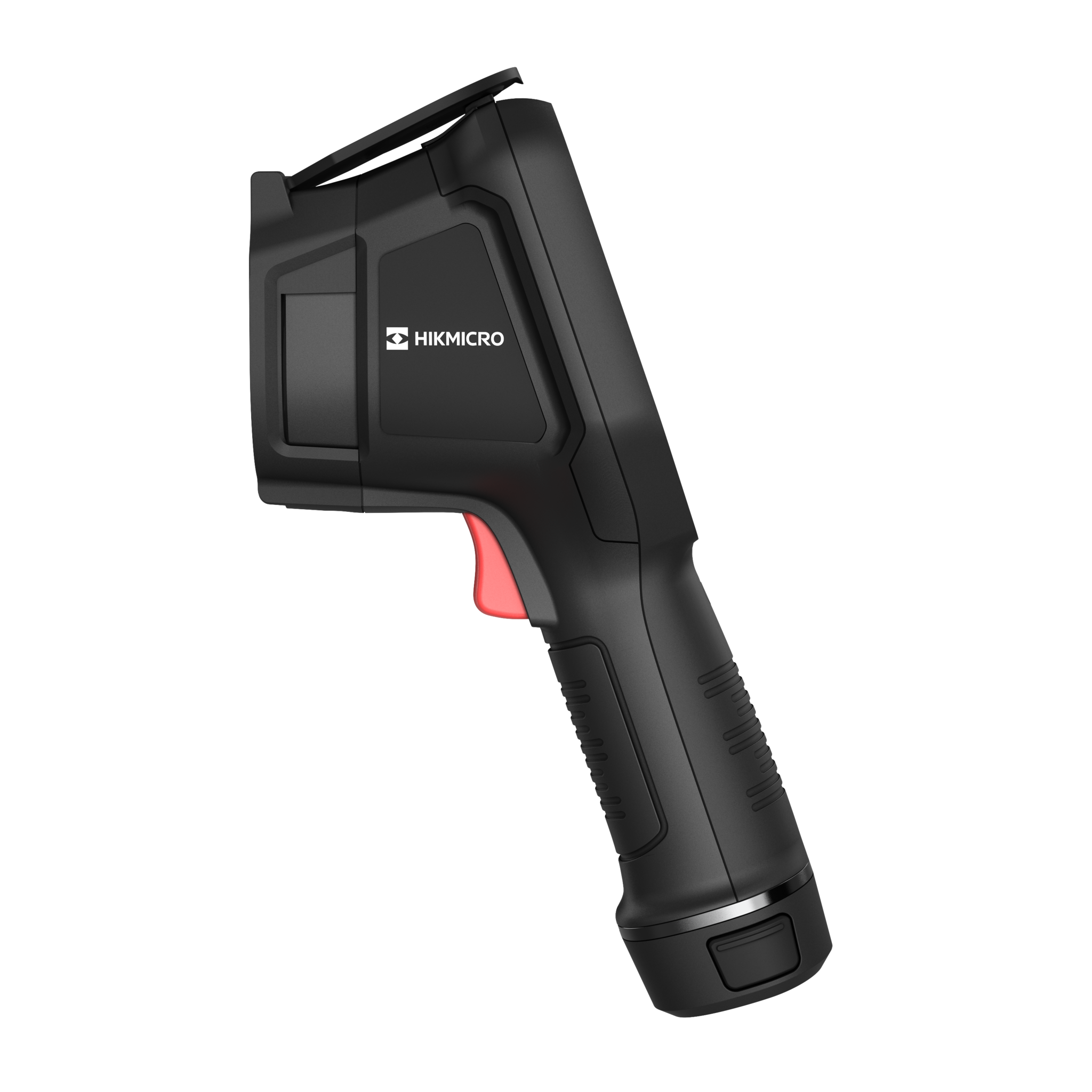

HIKMICRO M20W Focusable thermal imaging camera

with 256x192 Thermal pixels and fixed focus ( wide) lens

and a wide-angle lens of 50° x 37.2°

The Hikmicro M20W thermal imager has a thermal and a normal camera. The built-in highly sensitive IR detector and powerful sensor with a sensitivity of 0.04°C detect the temperature change very accurately and measures the real-time temperature.

The Hikmicro M20W is equipped with a fixed lens. The temperature measurement range is -20°C to 550°C with an absolute accuracy of ± 2°C or 2%. You can connect the instrument to the HIK-Thermal-Client software to view real-time display, pictures and recordings on your phone or tablet.

HIKMICRO Analyzer software available for on PC and T-vision App in the Appstore or Google Play

for Life streaming to a Mobile phone or Tablet.

Specifications:
- Field of view FOV 50° x 37.2°
- Digital Zoom 1x / 2x / 4x / 8x
- Picture Mode Thermal, Visual, Fusion, Picture-in-Picture
- Storage Media Removable 16GB Micro SD Card
- Built-in Laser Pointer
- Wi-Fi 2.4 and 5 GHz
- Bluetooth 4.2
- Text comment up to 200 characters
- Voice commentary up to 60 seconds
- Battery life 5 hours
- IP class IP54
- Interface USB TYPE-C
- Weight ± 653 grams
- Dimensions 244mm × 100mm × 104mm

Key features:
- Thermal resolution 256 x 192 (49152 pixels)
- Thermal sensitivity of <0.04°C (NETD <40mK)
- Fixed focus Lens
- Temperature measurement range -20°C - 550°C
- Absolute accuracy ±2°C or ±2%
- 8MP Visual camera with Bi-Spectrum Blending
- 25Hz fastframe
- 3.5' LCD touch screen
- Pre-sets for user-defined measurements
- Centerspot, hotspot, coldspot, line, area, custom point

Storage Media Removable Micro SD Card (64 GB)
Photos Storage Capacity: 120000 Photos
Photo File Format JPEG including the measured data

Video storage capacity 56 hours
Video File Format MP4

Video Resolution 640x480

Languages, 18 languages are selectable

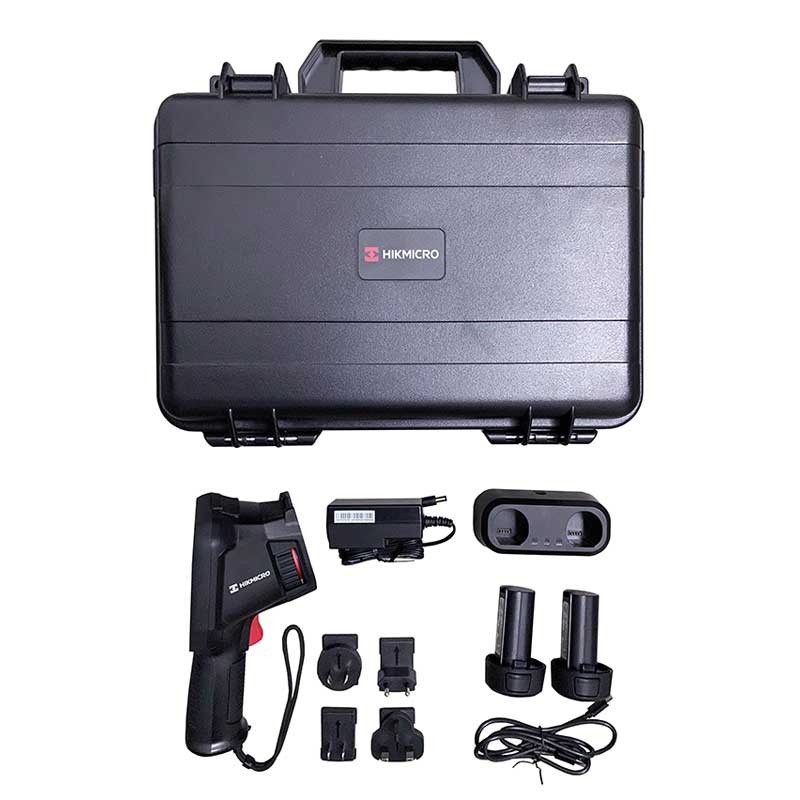

Supplied complete with:

Robust Case
Power charger with 4 adapters
USB cable
2x Li-ion interchangeable battery
Charging station for 2 batteries
wrist strap
Quick start manual
