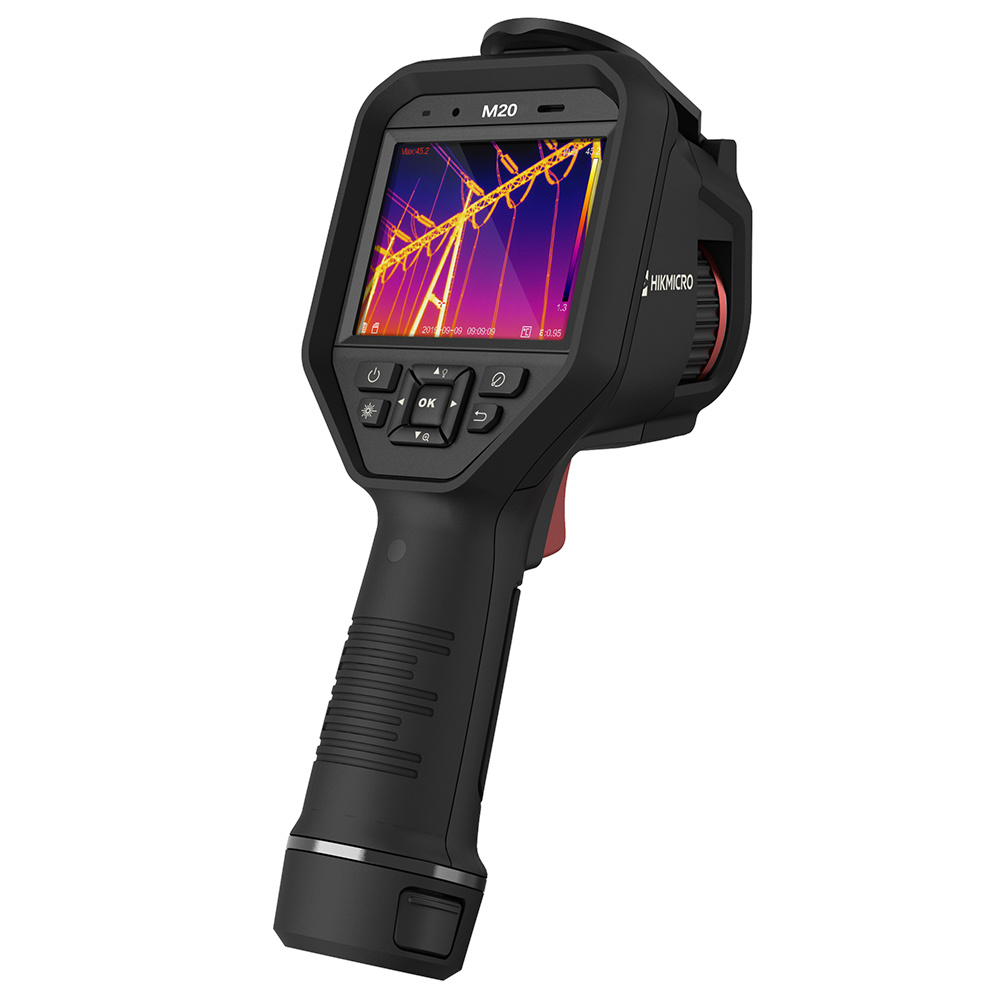

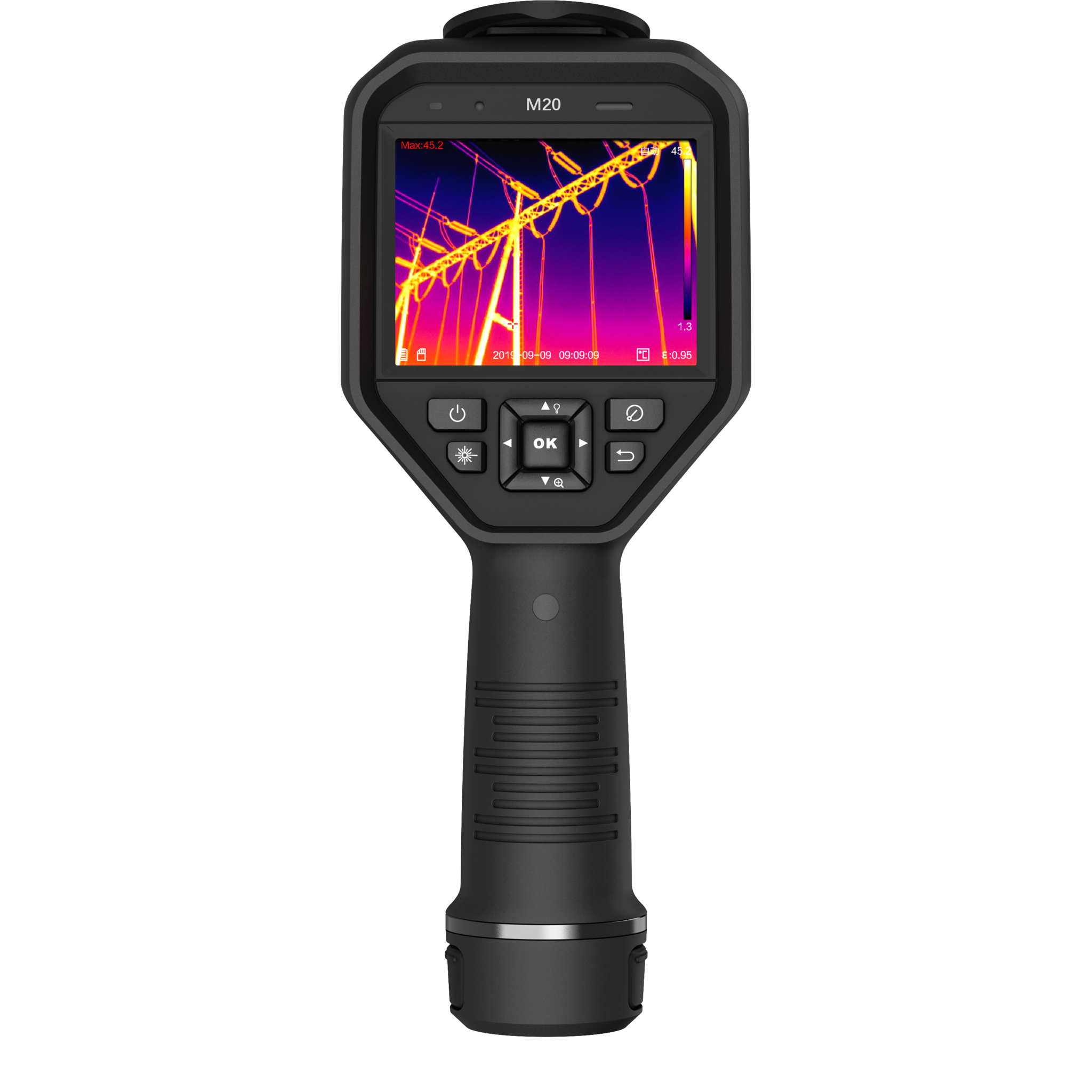

HIKMICRO M20 Focusable thermal imaging camera

with 256x192 Thermal pixels and fixed focus lens

FOV ( Field of View) 25°(H) x18.8°(V)

The Hikmicro M20W thermal imager has a thermal and a normal camera. The built-in highly sensitive IR detector and powerful sensor with a sensitivity of 0.04°C detect the temperature change very accurately and measures the real-time temperature.

The Hikmicro M20W is equipped with a focusble lens. The temperature measurement range is -20°C to 550°C with an absolute accuracy of ± 2°C or 2%. You can connect the instrument to the HIK-Thermal-Client software to view real-time display, pictures and recordings on your phone or tablet.

HIKMICRO Analyzer software available for on PC and T-vision App in the Appstore or Google Play

for Life streaming to a Mobile phone or Tablet.

Specifications:
- Field of view FOV 25°(H) x18.8°(V)
- Digital Zoom 1x / 2x / 4x / 8x
- Picture Mode Thermal, Visual, Fusion, Picture-in-Picture
- Storage Media Removable 16GB Micro SD Card
- Built-in Laser Pointer
- Wi-Fi 2.4 and 5 GHz
- Bluetooth 4.2
- Text comment up to 200 characters
- Voice commentary up to 60 seconds
- Battery life 5 hours
- IP class IP54
- Interface USB TYPE-C
- Weight ± 653 grams
- Dimensions 244mm × 100mm × 104mm

Key features:
- Thermal resolution 256 x 192 (49152 pixels)
- Thermal sensitivity of <0.04°C (NETD <40mK)

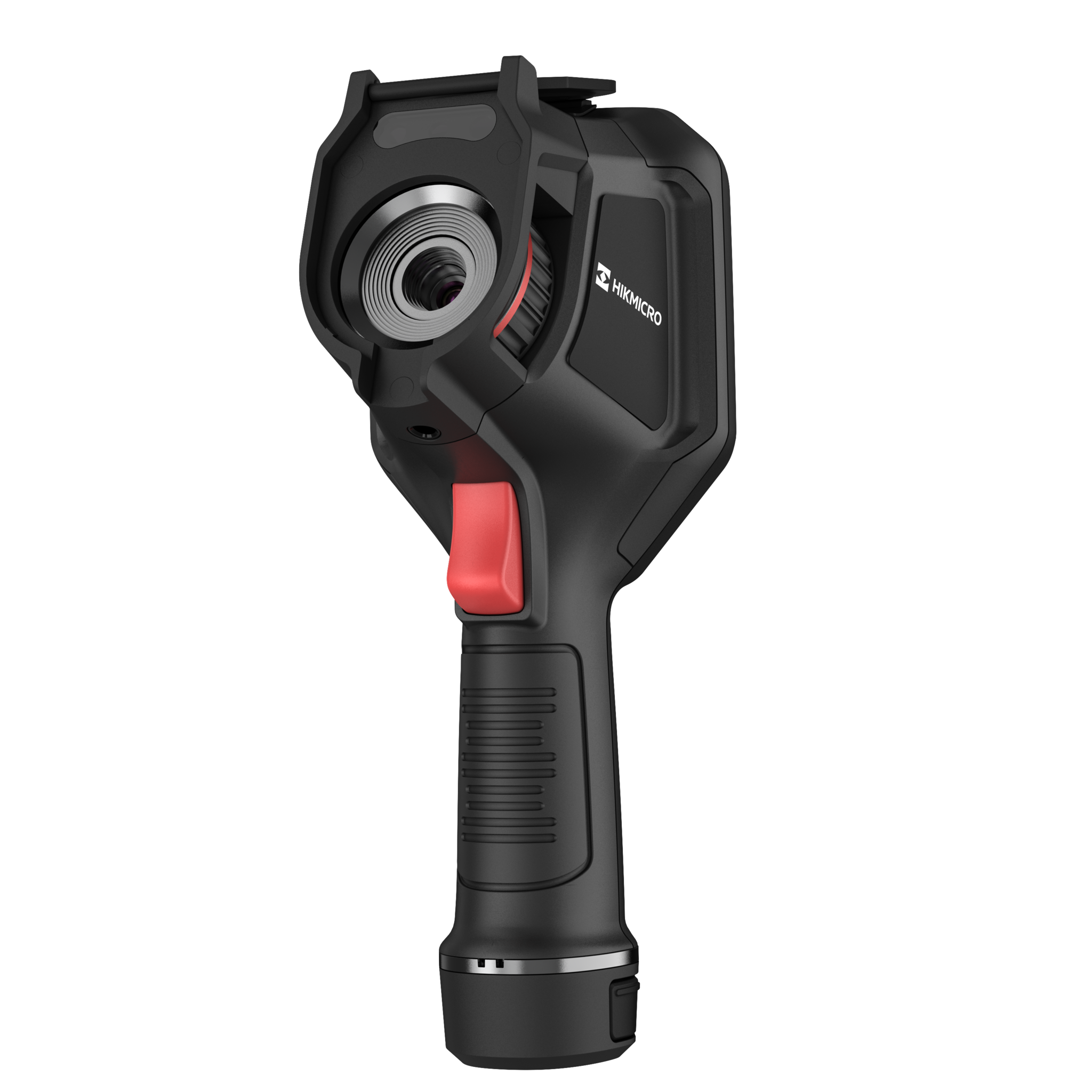

- Manual Focusable Lens
- Temperature measurement range -20°C - 550°C
- Absolute accuracy ±2°C or ±2%
- 8MP Visual camera with Bi-Spectrum Blending
- 25Hz fastframe frame rate
- 3.5' LCD touch screen
- Pre-sets for user-defined measurements
- Centerspot, hotspot, coldspot, line, area, custom point

Storage Media Removable Micro SD Card (64 GB)
Photos Storage Capacity: 120 000 Photos
Photo File Format JPEG including the measured data

Video storage capacity 56 hours
Video File Format MP4

Video Resolution 640x480

Languages, 18 languages are selectable

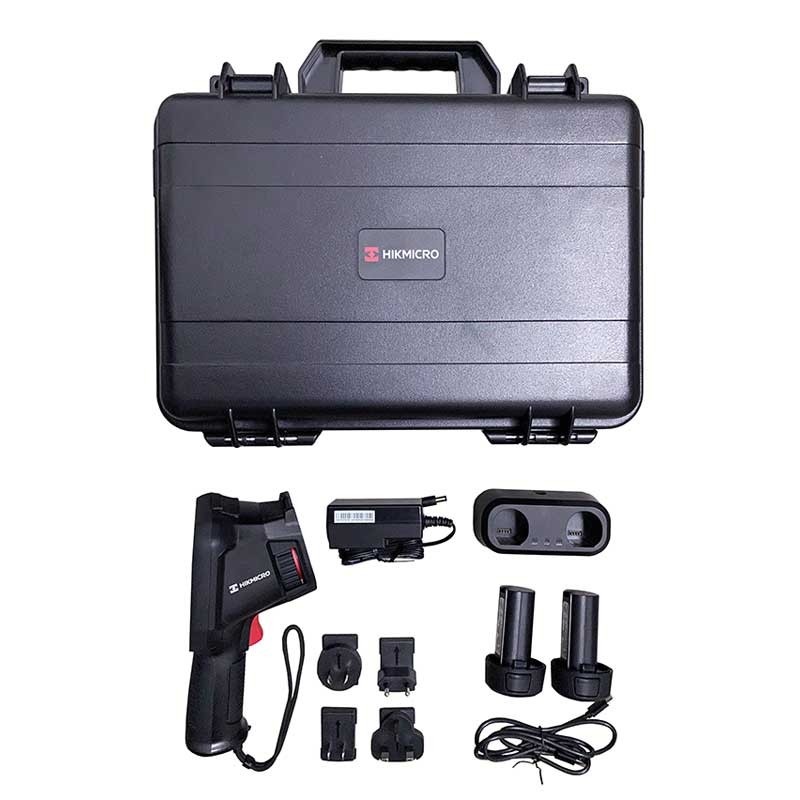

Supplied complete with:

Robust Case
Power charger with 4 adapters
USB cable
2x Li-ion interchangeable battery
Charging station for 2 batteries
wrist strap
Quick start manual
