OMTOOLS LP463 MULTI-CONE 4X 360 ° LINE LASER

Professional

Self-leveling
Thanks to the self-leveling magnetically damped pendulum system,
the laser levels quickly and accurately. This makes the Multi Line Laser easy and fast to use.
Outside the 3.5 ° leveling range, the line laser starts flashing as a warning.
This prevents unexpected measurement errors.

Transport lock
The OMTools LP463 multi-cone line laser is equipped with a transport lock.
This lock is to prevent damage to the pendulum mechanism in the instrument during transport.

The transport lock is also the on / off switch. When the line laser is switched off,
it is automatically locked

Complete set

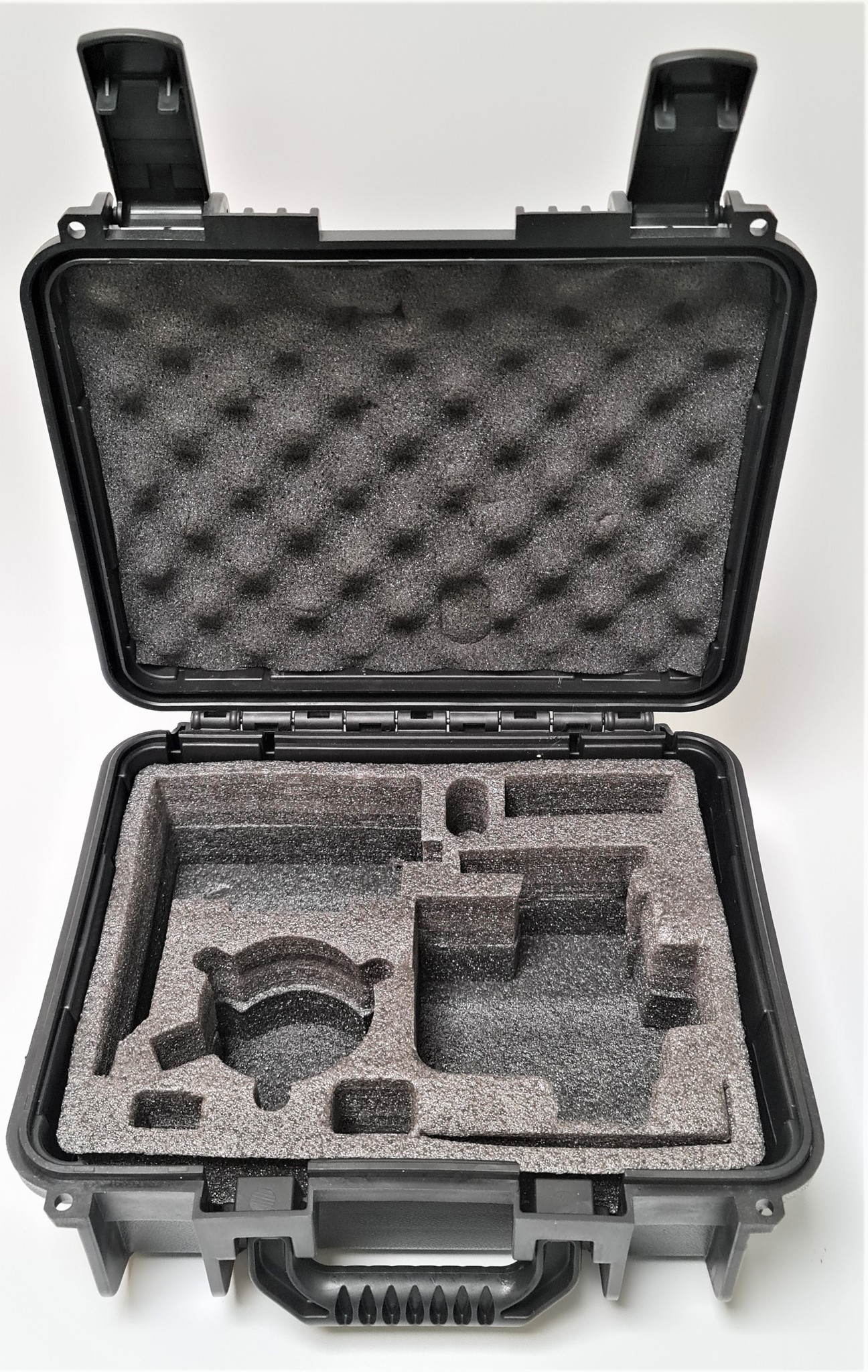

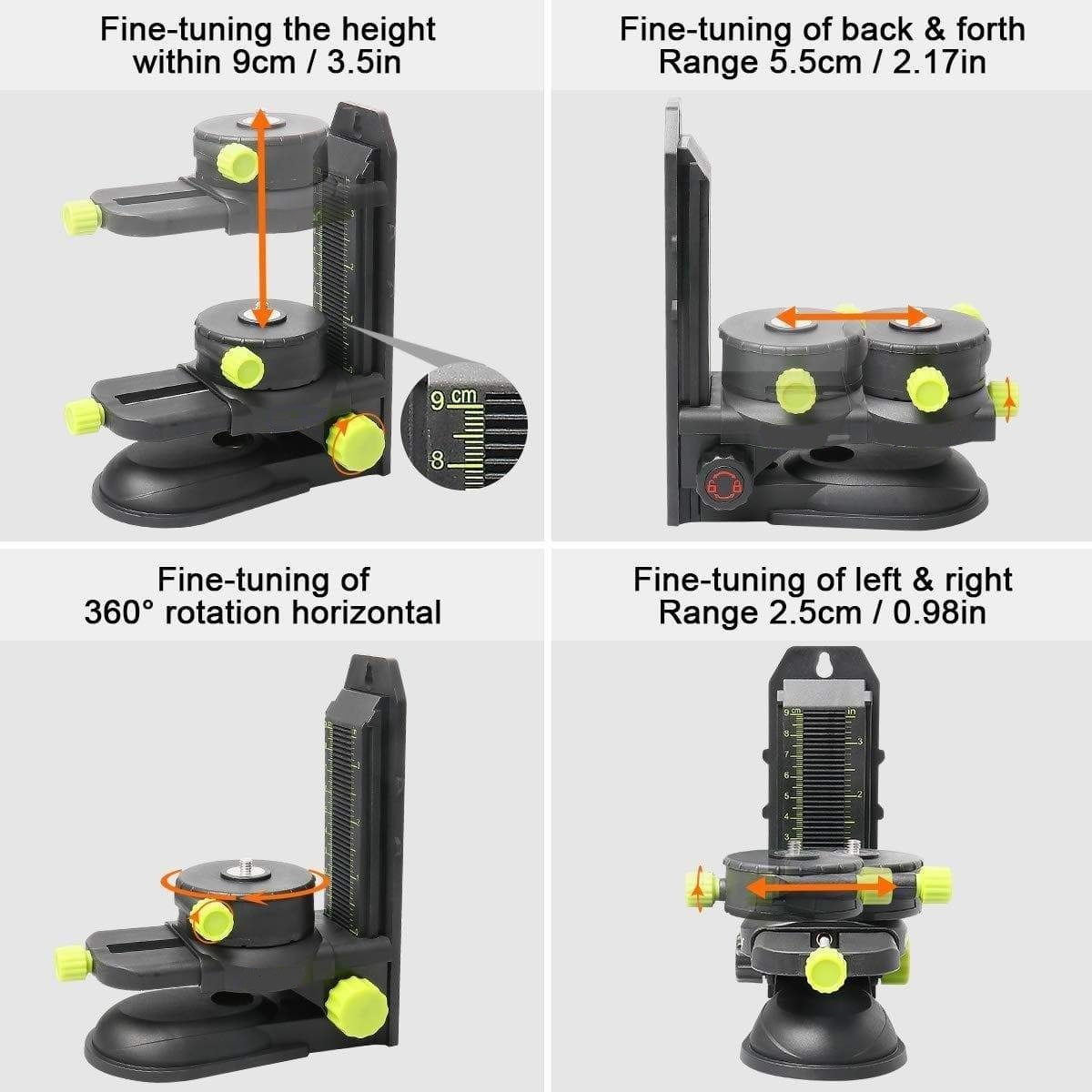

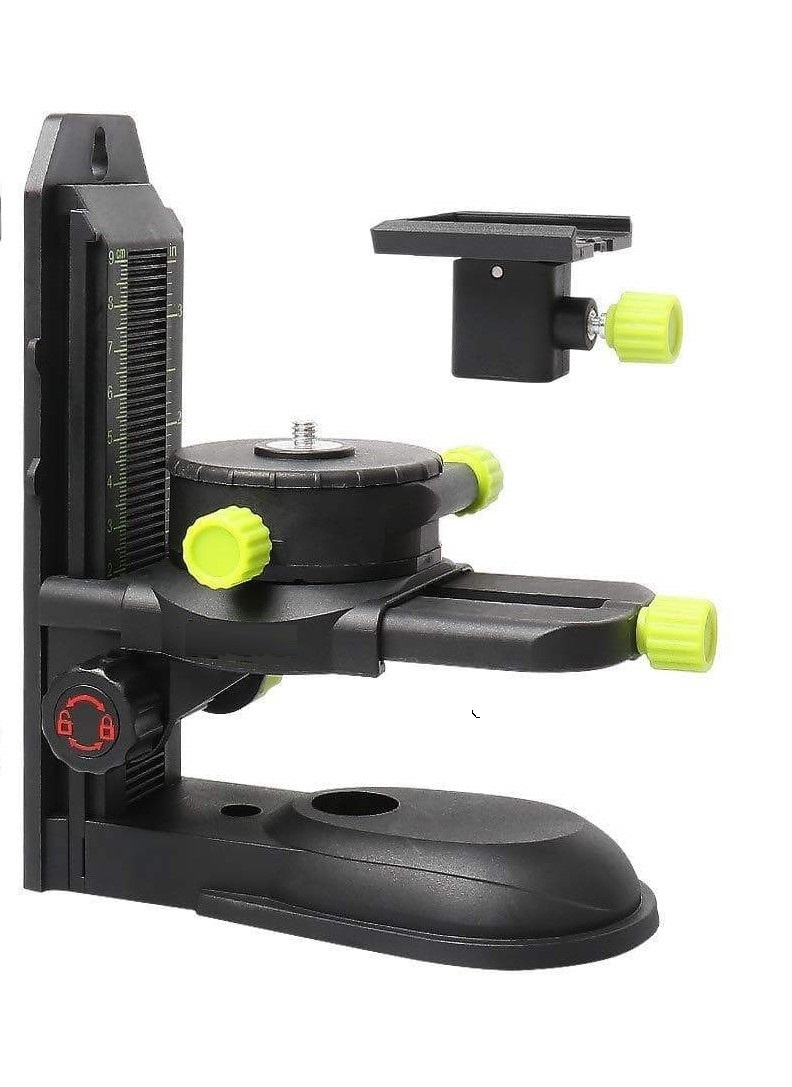

The LP463 green is delivered in a plasic case incl. Wallmount and scan plate

Receiver (optional) +99.00
This multi functional line laser can be used in combination with a receiver.

Ideal for use at great distances up to 50 meters or for outdoor use.

Specifications:

Accuracy:                     2 mm / 10 meters
Range:                        30 meters *
Range with receiver:          50 meters *

Laser lines:                  2x360 ° horizontally, 2x360 ° vertically
Disable lines individually:   Yes
Grade:                        Manual
Laser diode:                  Class 2, 520 nm, 10mW
Leveling range:               4 degrees
Protection:                   IP54
Working time per battery (s): 1 line 15 hours, 2 lines 9 hours, 3 lines 5 hours
Power supply:                 NiMH battery and AA alkaline
Working temperature:          0 ° C to 40 ° C
Weight:                       0.75 kg

Connection:                   5/8 "and 1/4"
Dimensions LxWxH:             128x84x116 mm
Warranty:                     2 years
