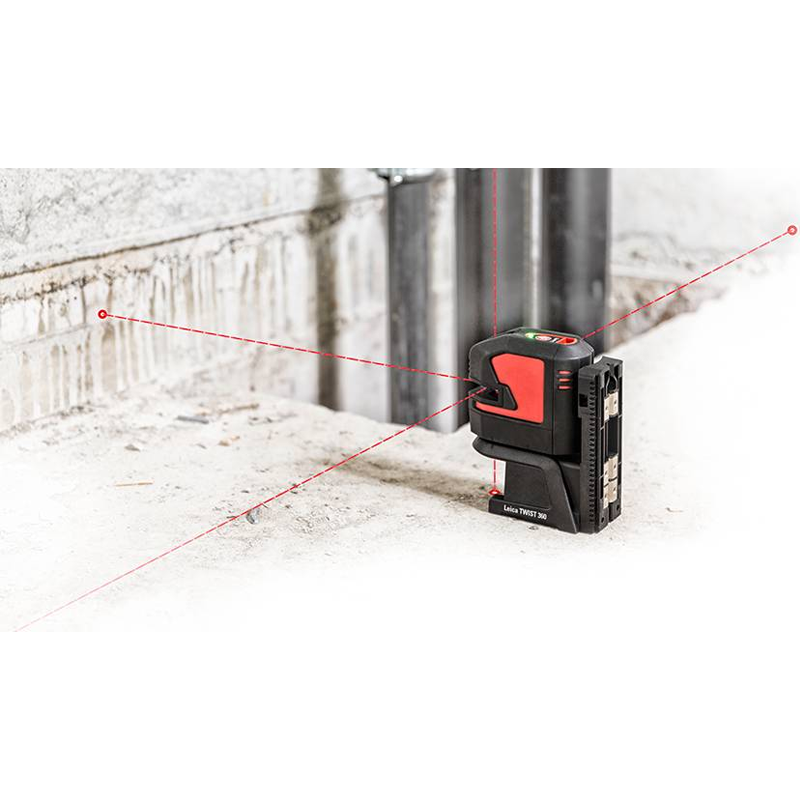

• Beam direction/fan angle Vertical / >170°, Horizontal / >180°

• Point direction Up, down, right, left, front (90°/180°)

• Range*25 m (82 ft) _L2P5G 35 m (115 ft)

• Range* with receiver 80 m (262 ft)

• Levelling accuracy ±0.2 mm/m = ±2.0 mm @ 10m (±0.002 in/ft = ±0.08 in @ 33ft)

• Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)

• Point accuracy ±0.2 mm/m (±0.002 in/ft)

• Self-levelling range ± 4 °

• Self-levelling time < 3 s

• Out-of-level warning Yes - blink lines every 5 s

• Levelling system Automatic pendulum lockable

• Laser type 635 ± 5 nm, Class 2 (acc. IEC 60825-1) L2P5G 525 ± 5 nm, Class 2 (acc. IEC 60825-1)

• Protection class IP 54 (IEC 60529) dust and splash water

• Drop resistant 6 x 0.5 m (1.64 ft)

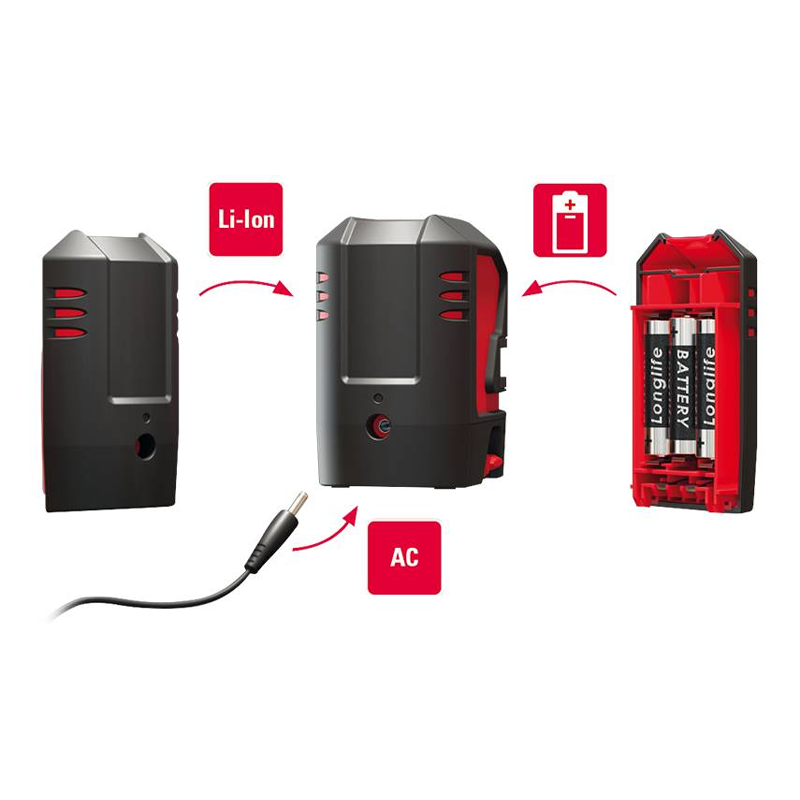

• Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh (3 alkaline AA)

• Operating time with Li-Ion battery

26h (2 beam + 4 point) -
44h (1 beam + 2 point) continuous

15h (2 beam + 4 point) -
28h (1 beam+ 2 point) continuous

• Operating time with alkaline batteries

8h (2 beam + 4 point) -
13h (1 beam + 2 point) continuous

4h (2 beam + 4 point) -
7h (1 beam+ 2 point) continuous

• Automatic shut-off Available

• Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)

• Weight with Li-Ion battery 530 g (1.17 lbs)

• Operating temperature -10…+50 °C (+14…+122 °F)

• Storage temperature -25…+70 °C (-13…+158 °F)

• Laser line width at 5m distance < 2 mm (<0.08 in)

• Tripod thread 1/4’’ (+ 5/8’’ with adapter)

• Pulse power for receiver Yes, auto
