The GeolaserKB-80L Volautomatic Cone laser, till 22% cone inclination + % or – %

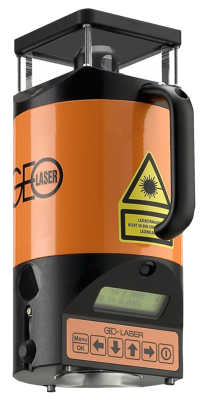

The Geolaser KB-80L Volautomatic Cone laser, till 22% cone inclination

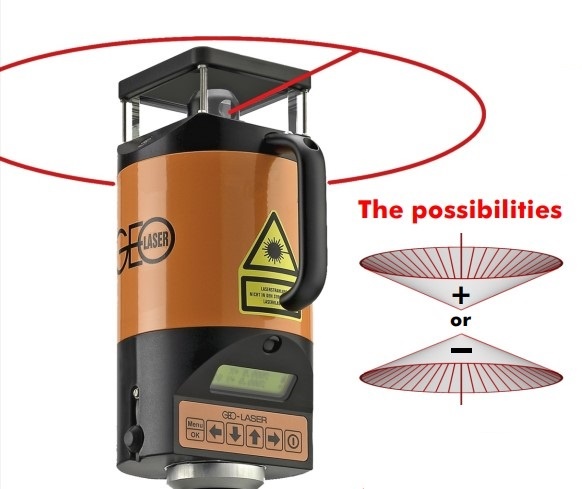

The automatic cone construction laser, type KB-80L is an all-around laser for horizontal use capable of electronic self-levelling over two axes. It emits a laser beam, which turns into a cone light plane as it rotates.

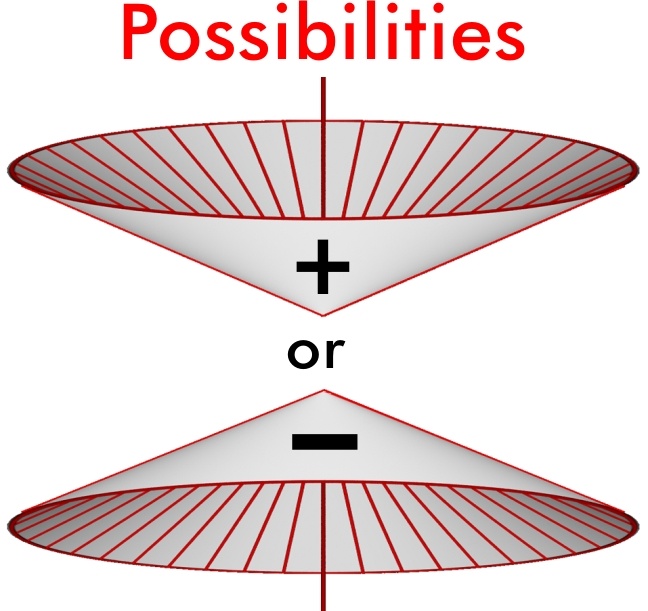

Please not: Indicate the cone inclination + % or – % in your order and the number off % inclination
-
Checking and adjustment
Easily possible at the building site as well. The device does not have to be opened for adjustment. -
Performance features
Laser class 2, output power < 1 mW. No special safety precautions necessary. The easy standard laser class. -
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference is possible. -
Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
Robust metal housing
Plastic coated, swept and filled with nitrogen, 100 % watertight. -
Special laser beam quality
Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery. -
Uncompromisingly easy
All you have to do is switch on/off. The rest is done by the KB-80L automatically.
Specifications:
| Laser class | 2, < 1 mW |
|---|---|
| Laser | diode laser, visible red, 658 nm |
| Laser range | up to 400 m, depending on ambient conditions, laser receiver and rotor speed |
| Beam diameter at laser | at laser 13 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | 10 mm/100 m |
| Operating time | up to 28 hours |
| External power supply | 11 to 14 V DC with cable 0117.02 |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to + 50° C |
| Weight | 3.4 kg |
| Guarantee | 24 month |
| Rotor speed | adjustable in steps of 0 to 800 RPM |
