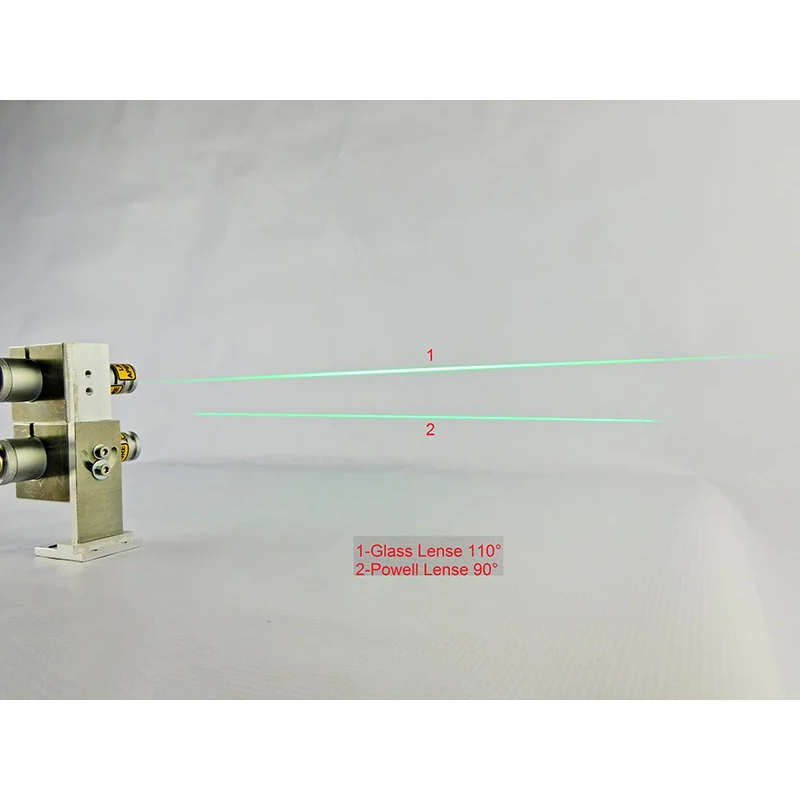

Delta F 170 mW laser Serie with special Powel lens,

the line has everywhere the same thickness.

  Powel lens                         normal lens

The lasers of the Delta F series are intended for the meticulous positioning in applications for part processing.

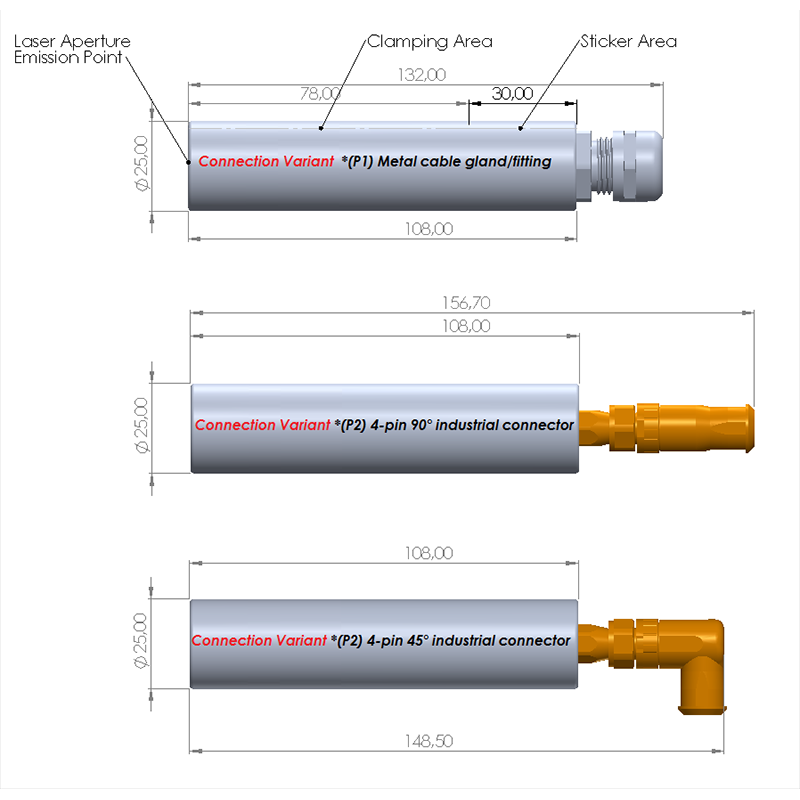

This laser series is equipped with green, red and IR wavelengths and laser head sizes Ø25mm.

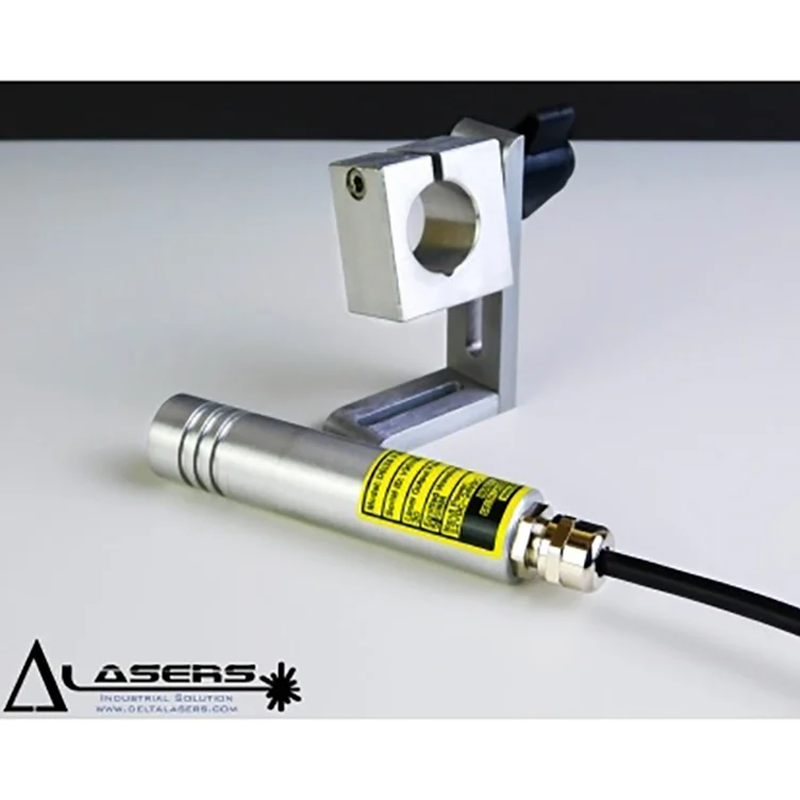

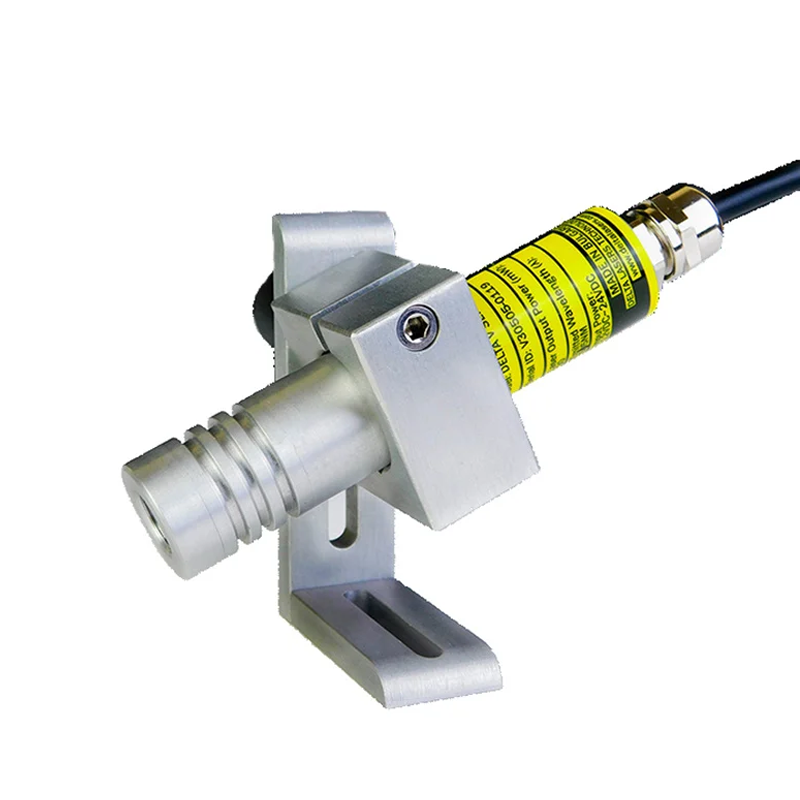

The lasers are housed in a solid enclosure, which is easy to mount and adjust. The laser electronics are
available in different versions depending on the requirements.
The Delta F series is offered with a digital modulation of up to 5 kHz and a temperature protection against overheating. The enclosure is manufactured from anodized aluminum.

This laser series offers optical power in the range: 1mW ~ 200mW with a fixed focus. The power supply voltage of the laser is from 9V DC to 30V DC. The consumption depends on the power of the laser.

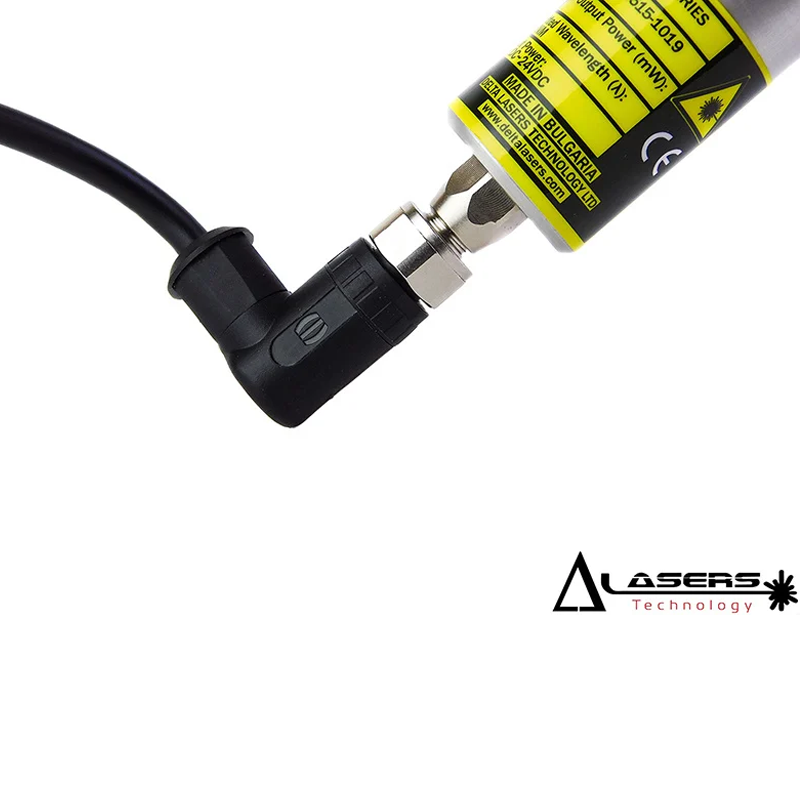

As standard, a 2.5m long cable is attached to the laser but it can be extended to 5m / 10m / 15m.

Laser power: 170mw

Wavelenght: 638nm

Laser Class 3A, IP67

Power Supply 9VDC-30VDC

Overvieuw:

• Solid industrial enclosure
• Degree of protection: IP67
• Wavelength: 505nm - 808nm
• Power: up to 200mW
• Digital Modulation
• Thin & bright line
• Fixed focus
• Precision optics
• Temperature protection

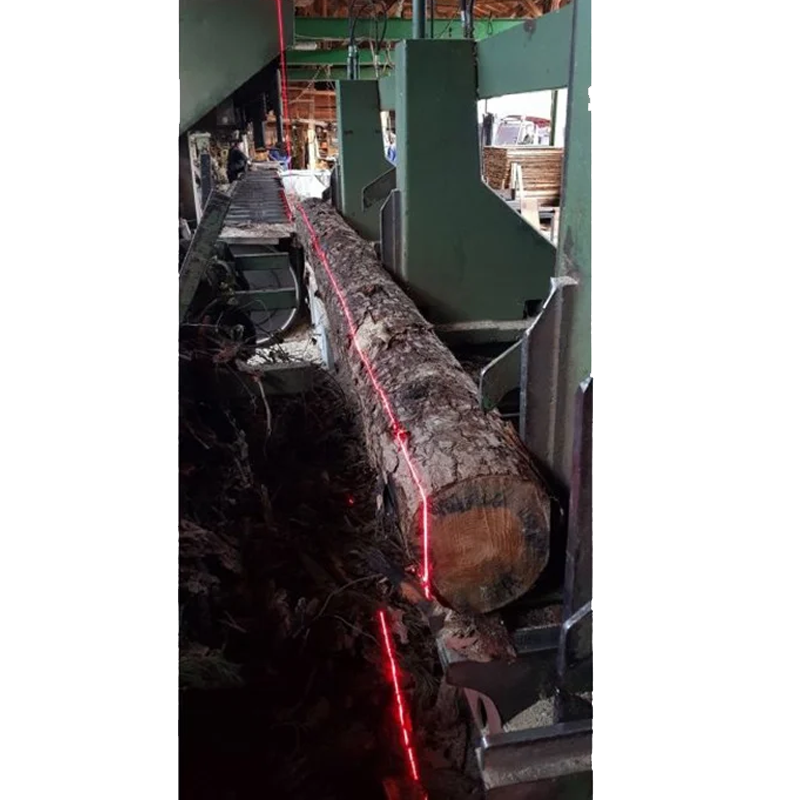

Applications:

• Precise positioning
• Alignment
• Centering
• Machine vision
