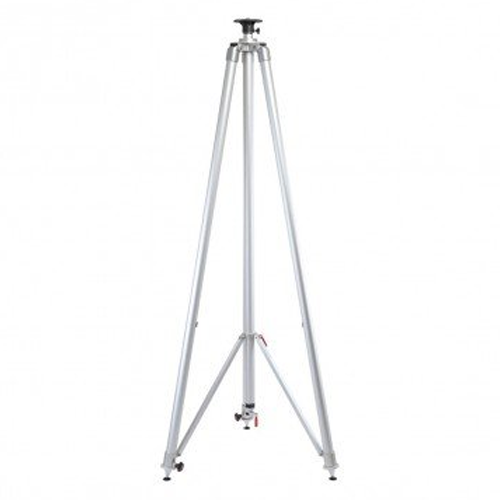

NESTLE Heavy duty tripod NT452

• The tripods guarantee stability for lasers at large heights.
• Rugged aluminium construction with central strut section.
• The crank is easy to operate, even with heaviest laser devices.
• Mounting screw 5/8″ (other threads available on request).
• Detachable top plate Ø 140mm.
• Crank handle undetachable (the screws can´t be removed completely so no parts can get lost on the jobsite).
• Tips made of solid steel, replaceable.
• Including one set of tips with rubber caps to protect damageable surfaces and one set for exterior applications.

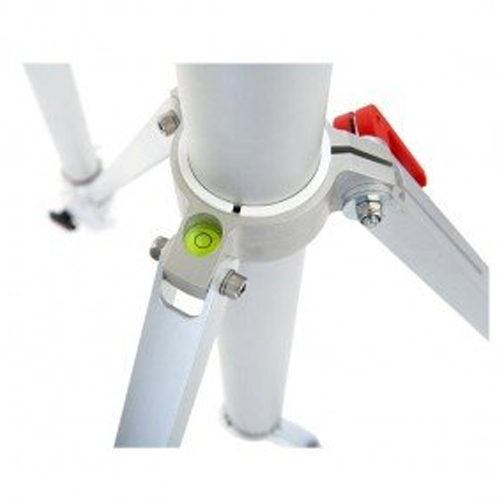

• The circular vial placed besides the central column allows for quick setting up.
• The NESTLE heavy tripod is in accordance with numerical simulation calculation by Ingenieurbüro Dr. Heiser in the virtual-wind-tunnel stable over 90km/h wind speed. The calculation was performed by CFD method (computational fluid dynamic) in full working height and rotary laser on top.

Applications:

• The tripods guarantees stability for lasers at large heights – even under stormy weather conditions. Ideal for machine control applications.
• The crank handle is located directly below the central column and can be operated any time and at any tripod extension height.
• The clamping buttons are placed in the side of the leg and therefore protected from transport damages.
• Ideal balance of weight: The tripod – while being light enough to be operated by one single person - is also solid and heavy enough to withstand wind and stormy weather conditions on the jobsite.

Specifications
