€1.799,00

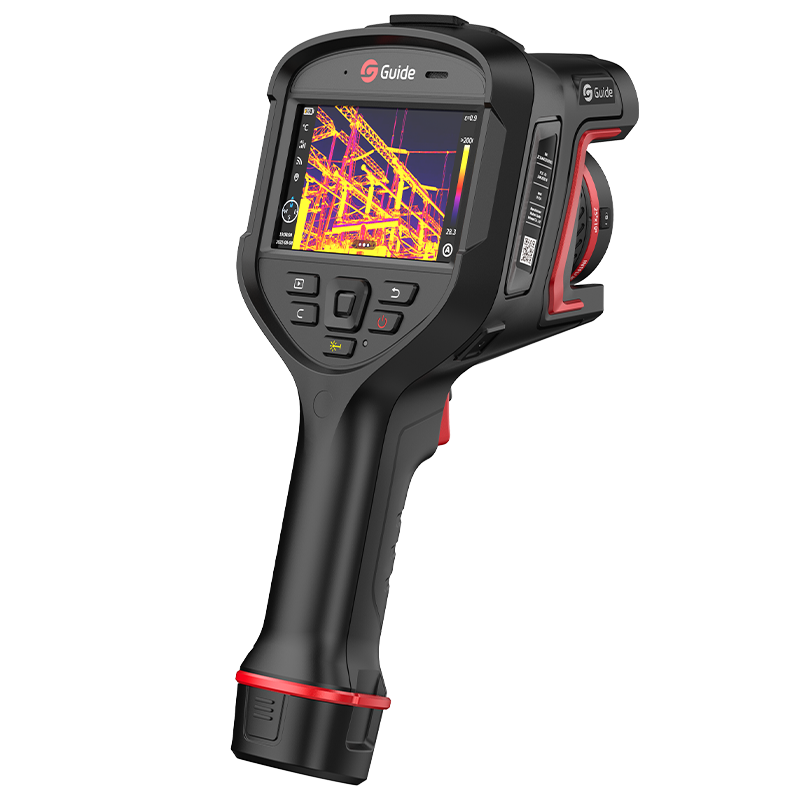

The Hammer H2 Thermal Imaging Camera with -40 to 650 °C temperature range and ±2 °C or ±2% accuracy. The H2 has a thermal resolution of 256x192 12μm and a display screen resolution of 800x480.

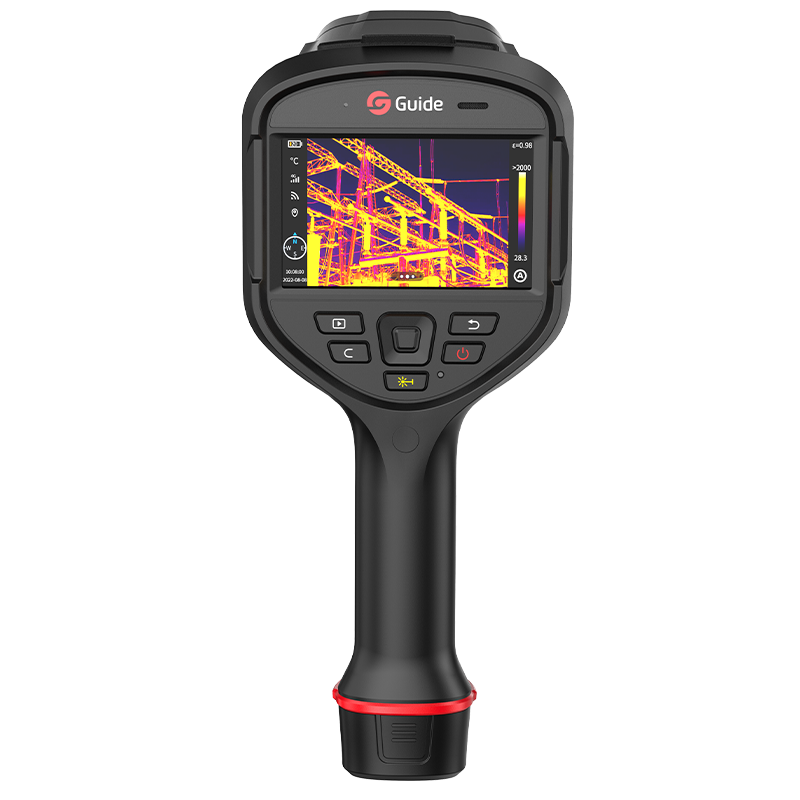

H2
Intelligent Thermal Camera
With a built-in self-developed high-sensitivity IR detector, a 5MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic "hammer" shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.
256x192IR Resolution
5MPVisible Light
30Hz Frame Rate
OTA Upgrade
High-sensitivity IR Detector
A new generation of self-developed infrared focal plane detectors with a resolution of 256x192 coupled with super-resolution reconstruction for high-quality imaging
30Hz IRGD Frame Rate
IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis
Wide-range Measurement with Rich Application Scenarios
Support auto-switching: -40℃ to 150℃, 0℃ to 650℃
Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen
OTA Upgrade for the Latest System Version
The device can be upgraded by connecting to the network.
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 256×192@12μm | |||
| Super resolution | Yes, Upgrade to 512×384 | |||
| NETD | 45mK | |||
| Frame rate | 30Hz | |||
| Focal length | 10.5mm | |||
| Field of view | 25°×19° | |||
| IFOV | 1.70mrad | |||
| Min. object distance | 0.1m | |||
| D:S | 588:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 8x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 5 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance, dew point | |||
| Others | Customized physical button, Intelligent diagnosis, OTA update | |||
| Image display | ||||
|---|---|---|---|---|

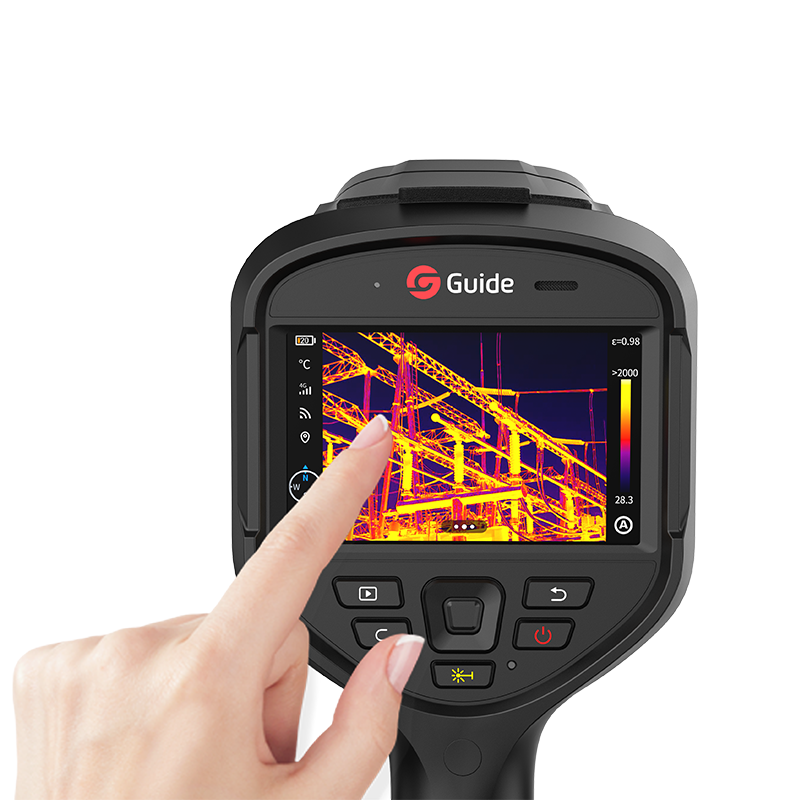

| Display screen | 4.3" LCD, touch screen, 800×480 | |||
| Image mode | IR, VIS, MIF, PIP | |||
| Color palettes | 15: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 5MP | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (64 GB) and external SD card (64 GB and up to 256 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info), up to 30 Hz (optional) for temperature analysis | |||
| External interface | Type-C, SD card slot, UNC ¼"-20 (Tripod mounting) | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) | |||
| Power system | ||||
|---|---|---|---|---|

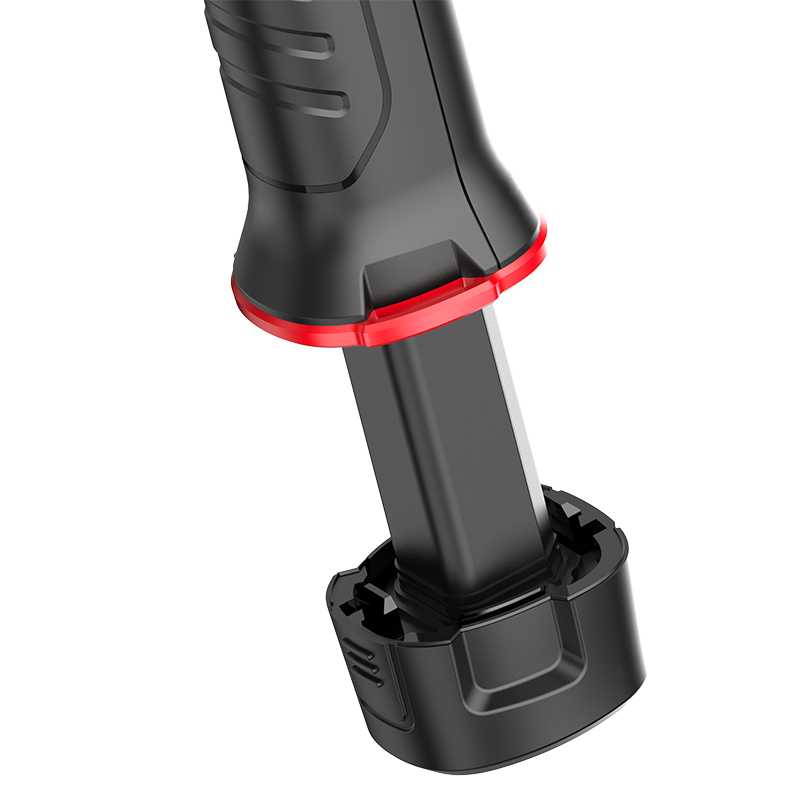

| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 5 hours | |||
| Charging mode | TYPE-C charging; PC/portable charger; Capable of charging while using | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -20°C to 50°C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Certification | CE, FCC, RoHS, KCC, Anatel, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator×2, Microphone, Speaker, Electronic Compass, GPS | |||
| Weight | 1.15kg (with battery) | |||
| Size | 292×125×125mm | |||

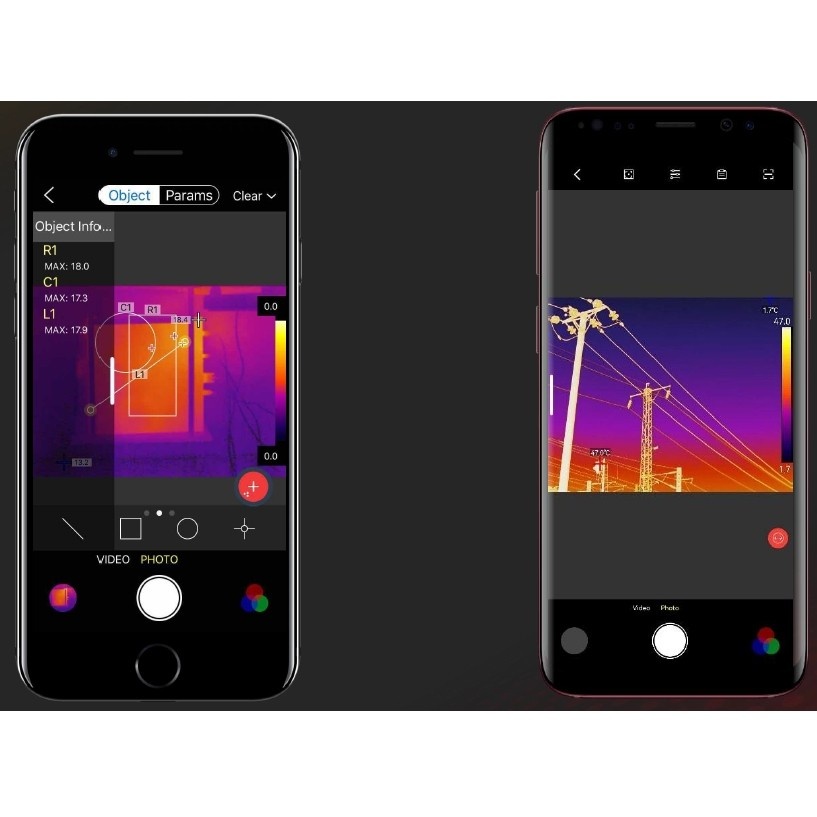

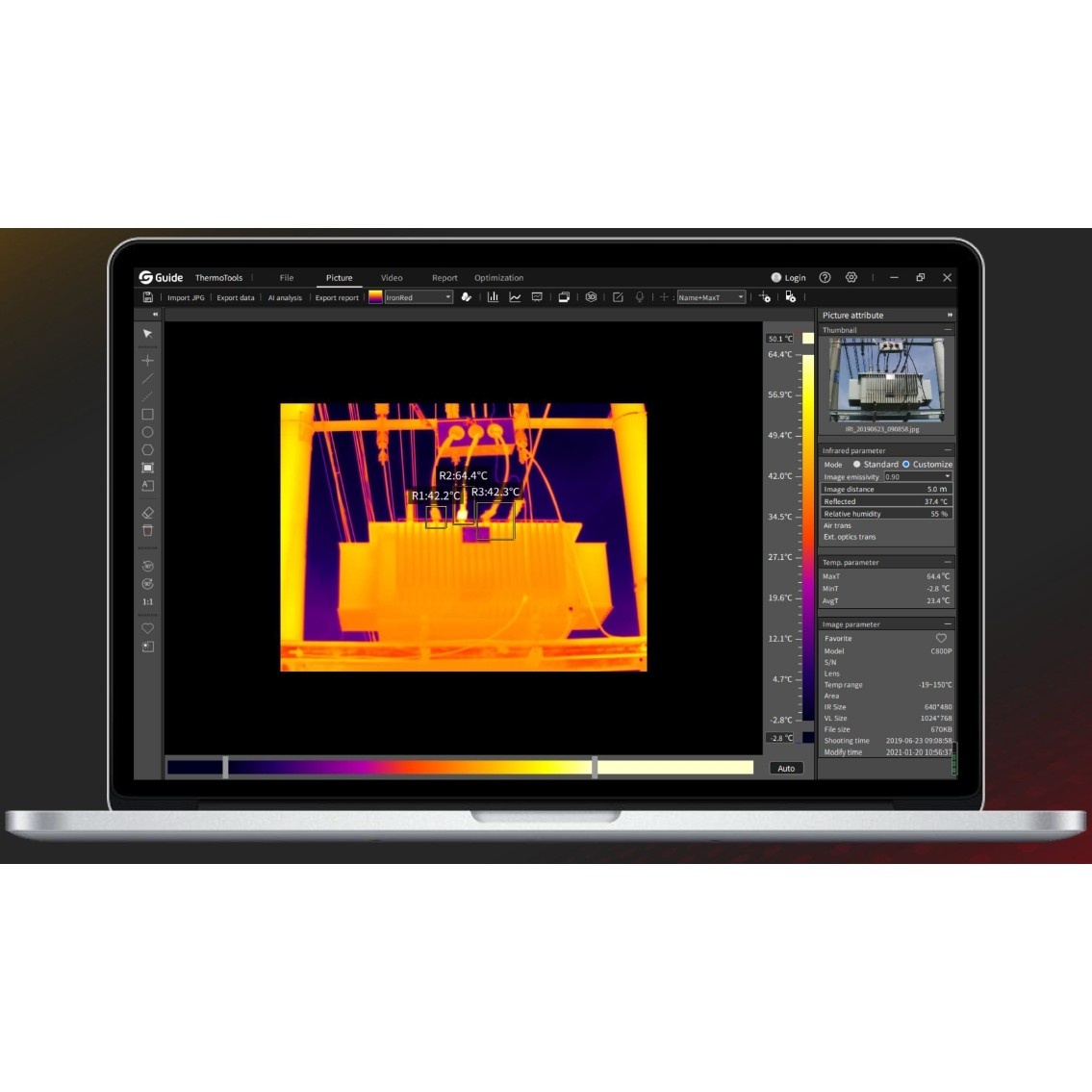

| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||

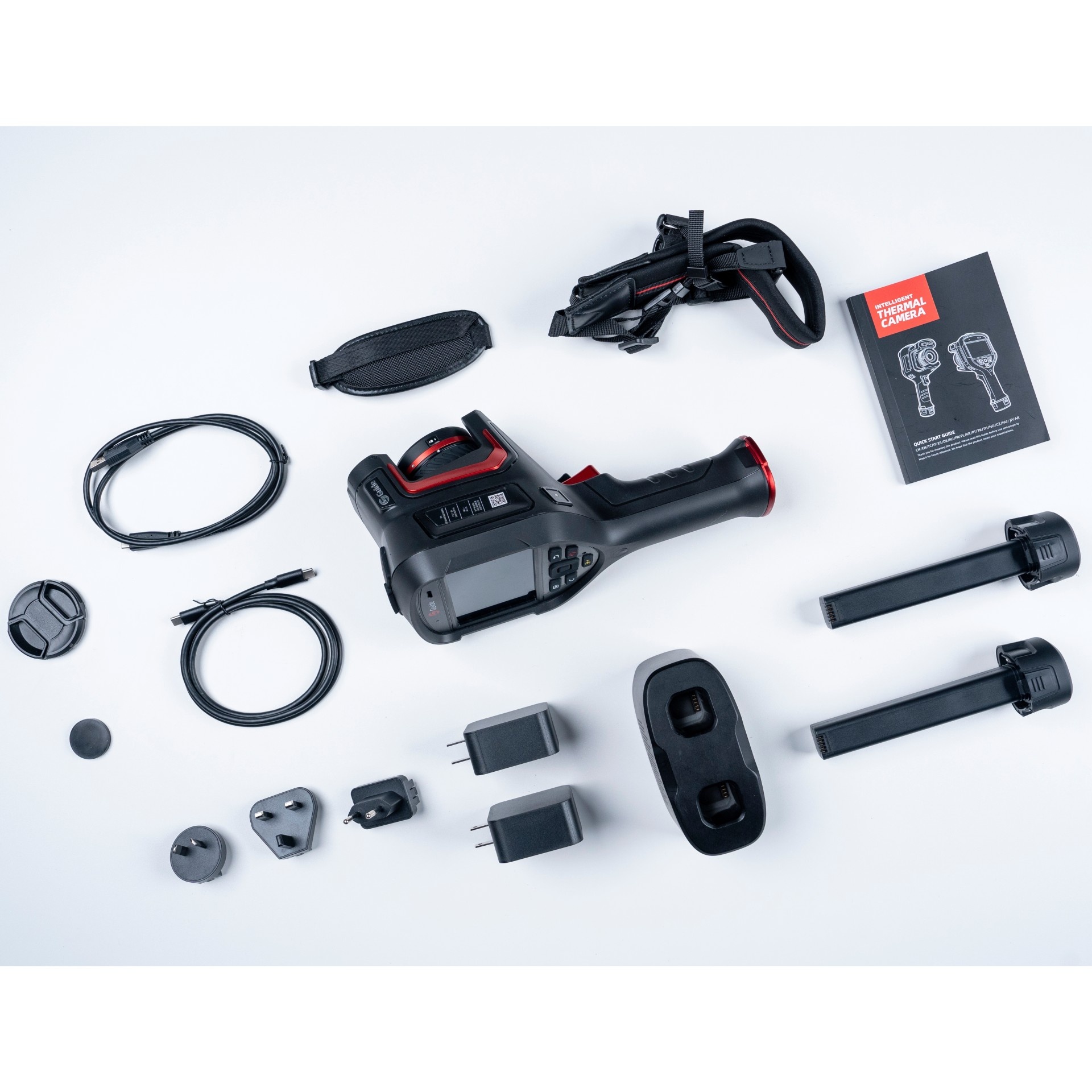

| Standard | A device (with lens), Lens front and back cover, Lithium-ion battery (2 pcs), Power adapter, Adapter plug (for China, US, UK, Australia and Europe), Type C to C Charger Cable, TYPE-C USB cable, Ethernet Cable, TYPE-C to RJ45, SD card (64 GB) , Wrist strap, Shoulder strap, Safety box, Packaging list, Quick Start Guide, Data download card (analysis software & user manual), Certificate of approval, Factory certificate | |||

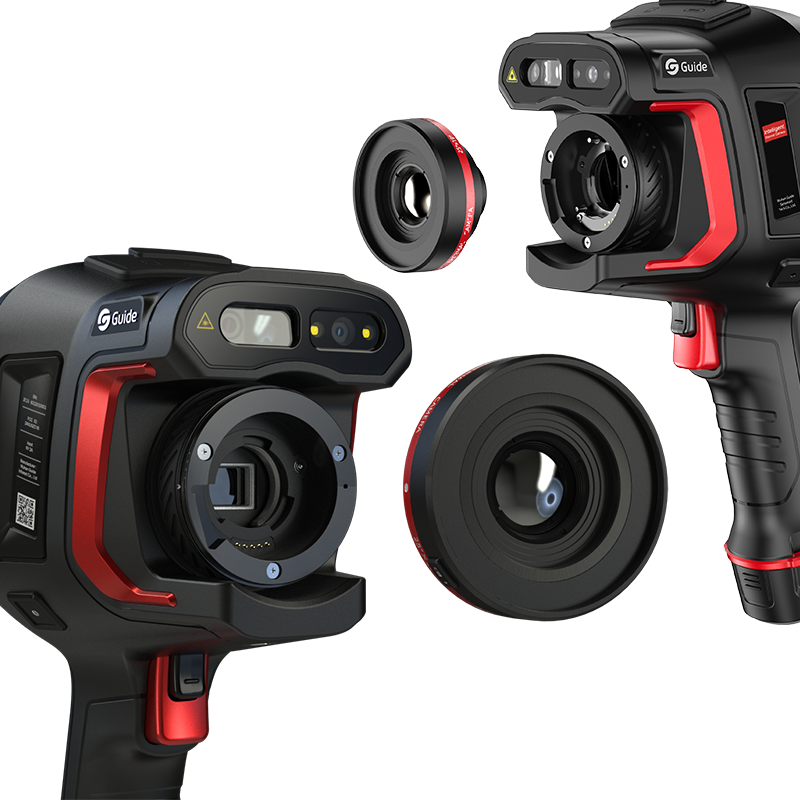

| Options | Desktop charger, Battery, Optional lens (44°, 15°, 7°), Carrying bag, Tripod, Bluetooth earphone, Docking station | |||
