- Brand:
- Delta Laser
- Article number:
- 1650544
- Availability:
- In stock (1)
- Delivery time:
- 1 - 7 Days
€1.450,00

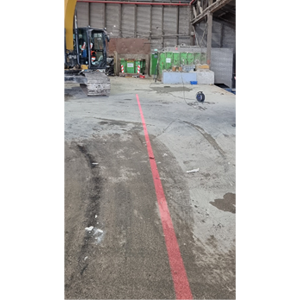

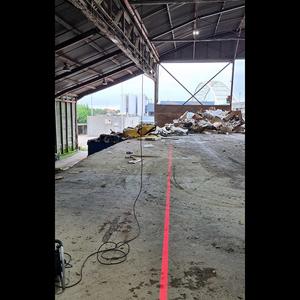

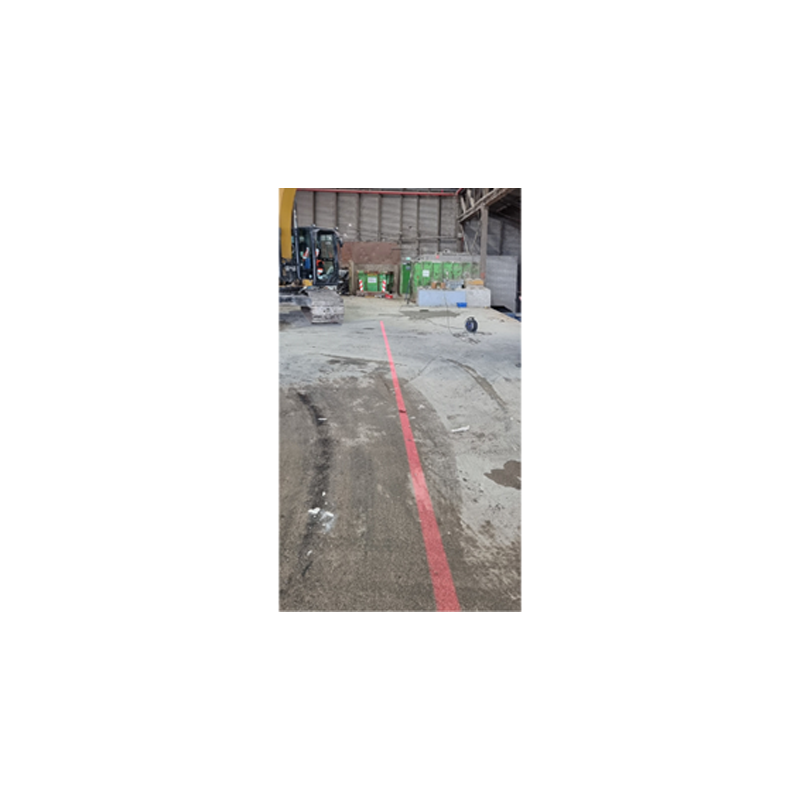

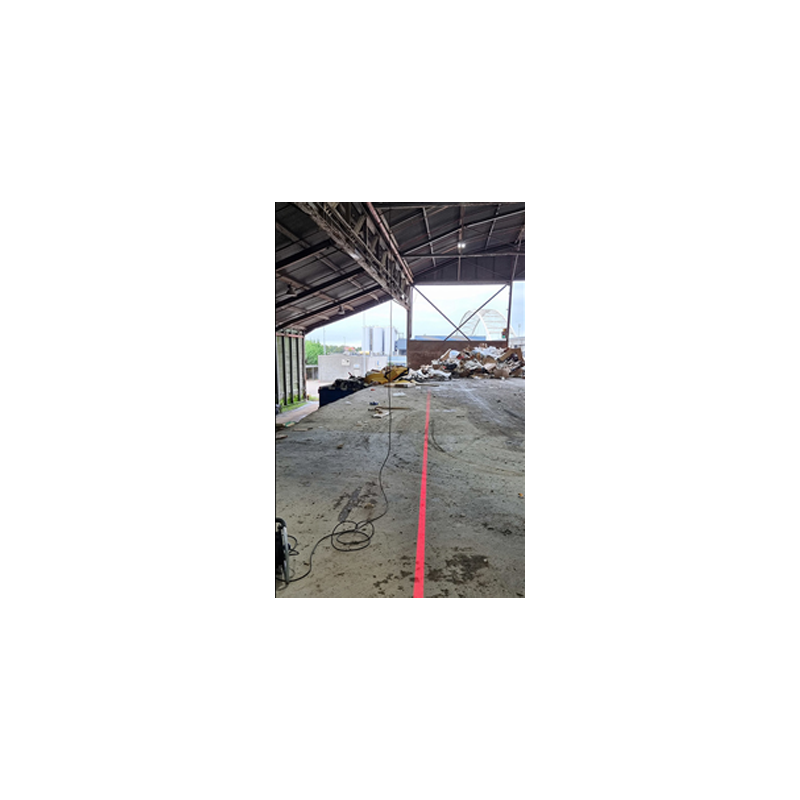

Delta Field Las Industrial projection laser for marking on floors with red beam

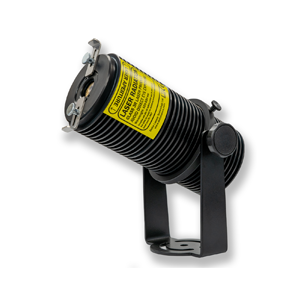

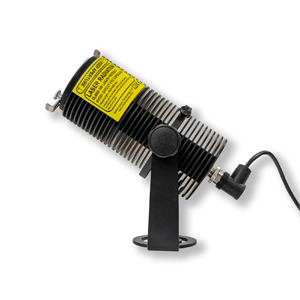

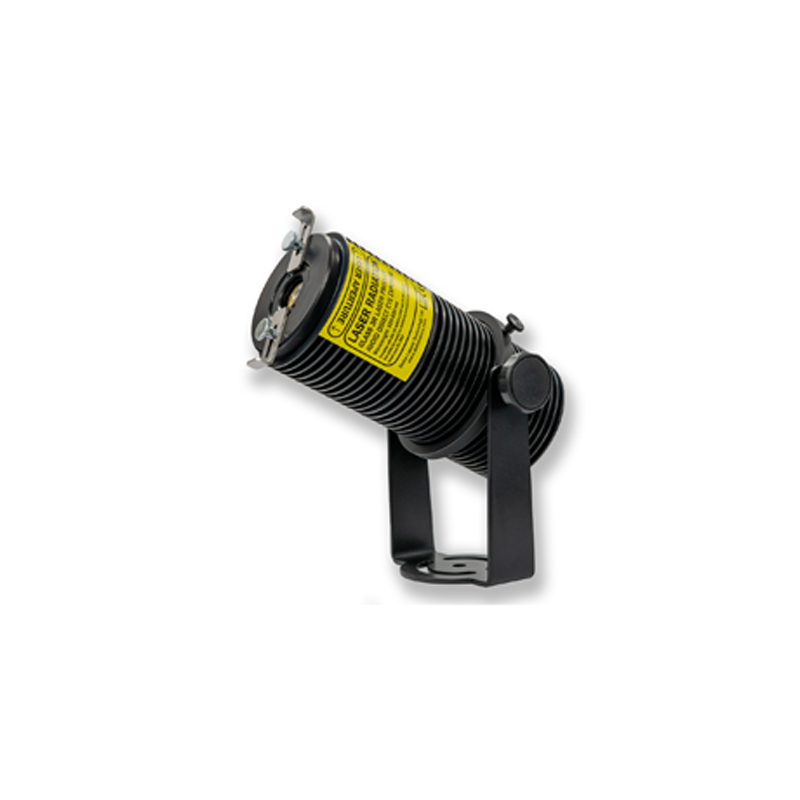

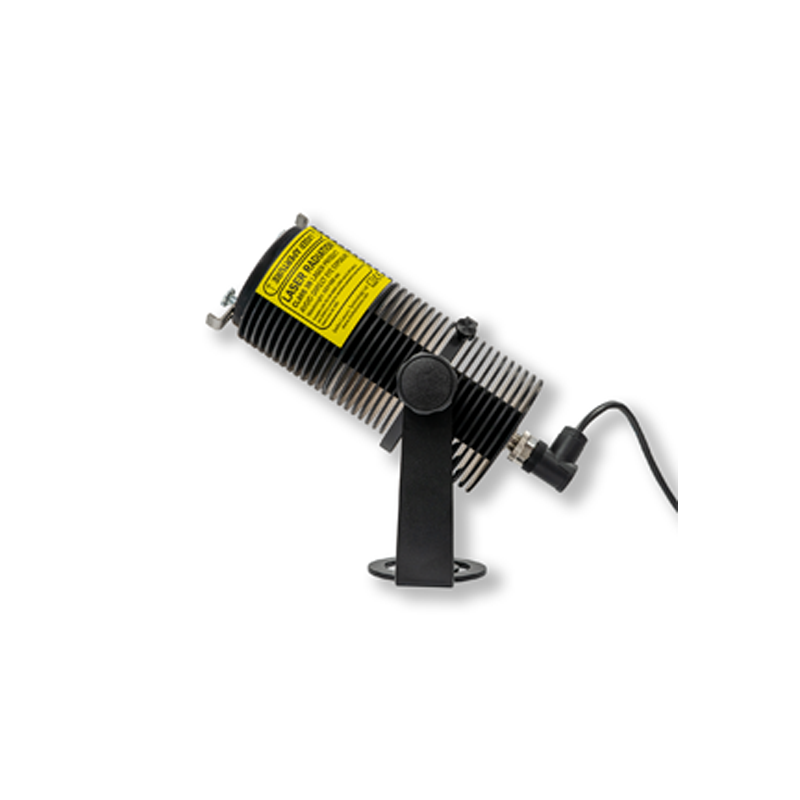

Delta Field Las 1200 mW Red industrial projection laser
Powerful laser projector for the projection of 3 till 7cm thick road markings in the industry.
Delta Field las Series is a laser system for line projection with multifunctional industrial applications.
It is easy to install and adjust, with the capability to adjust the length of the projection line and to adjust the line thickness in advance.
The Delta Field Las Series is classified as a 3R laser class.
It is ideal for industrial applications that require a sufficiently powerful laser to project bright lines over long distances. It is safe enough so special safety goggles are not needed. Delta Field Master Series is available in Green color 520-530nm, Red color 638nm, Blue color 445nm.
Features:
- Protection rating IP67
- Installation in the open or inside buildings
- Solid enclosure
- Bright and saturated line
- Easy to install
- Precise mount, rotatable at 360°
- Temperature regulation ribs
- Microprocessor control
Applications:
- Replacement of traditional zones or painted paths
- Creation of lines in applications where tape or paint do not work (dusty, cold, dirty work areas)

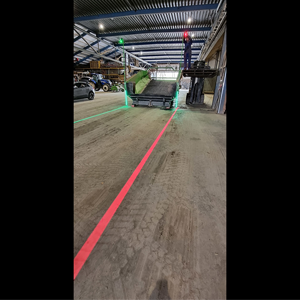

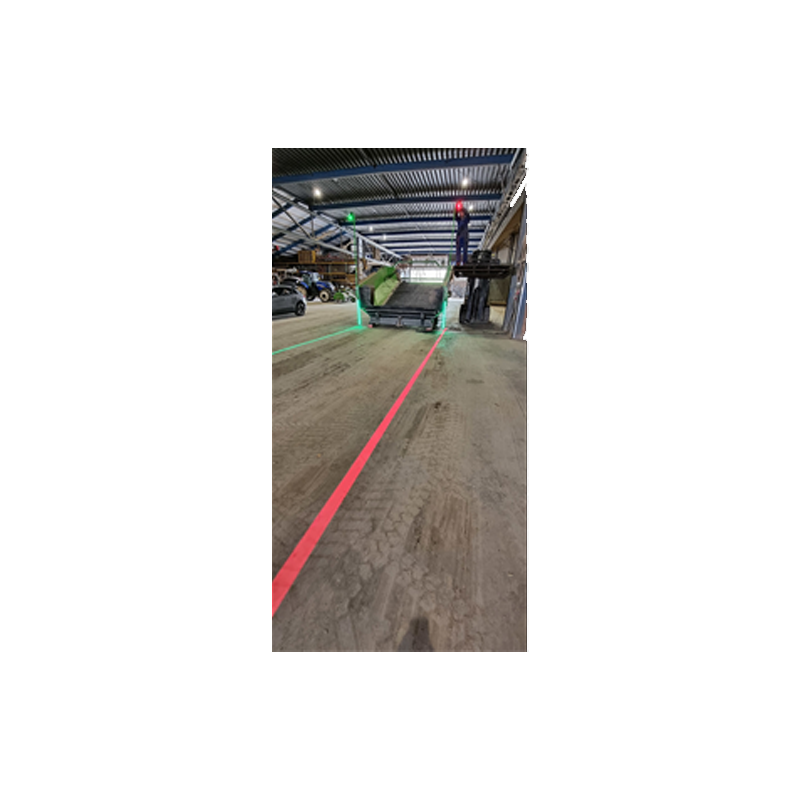

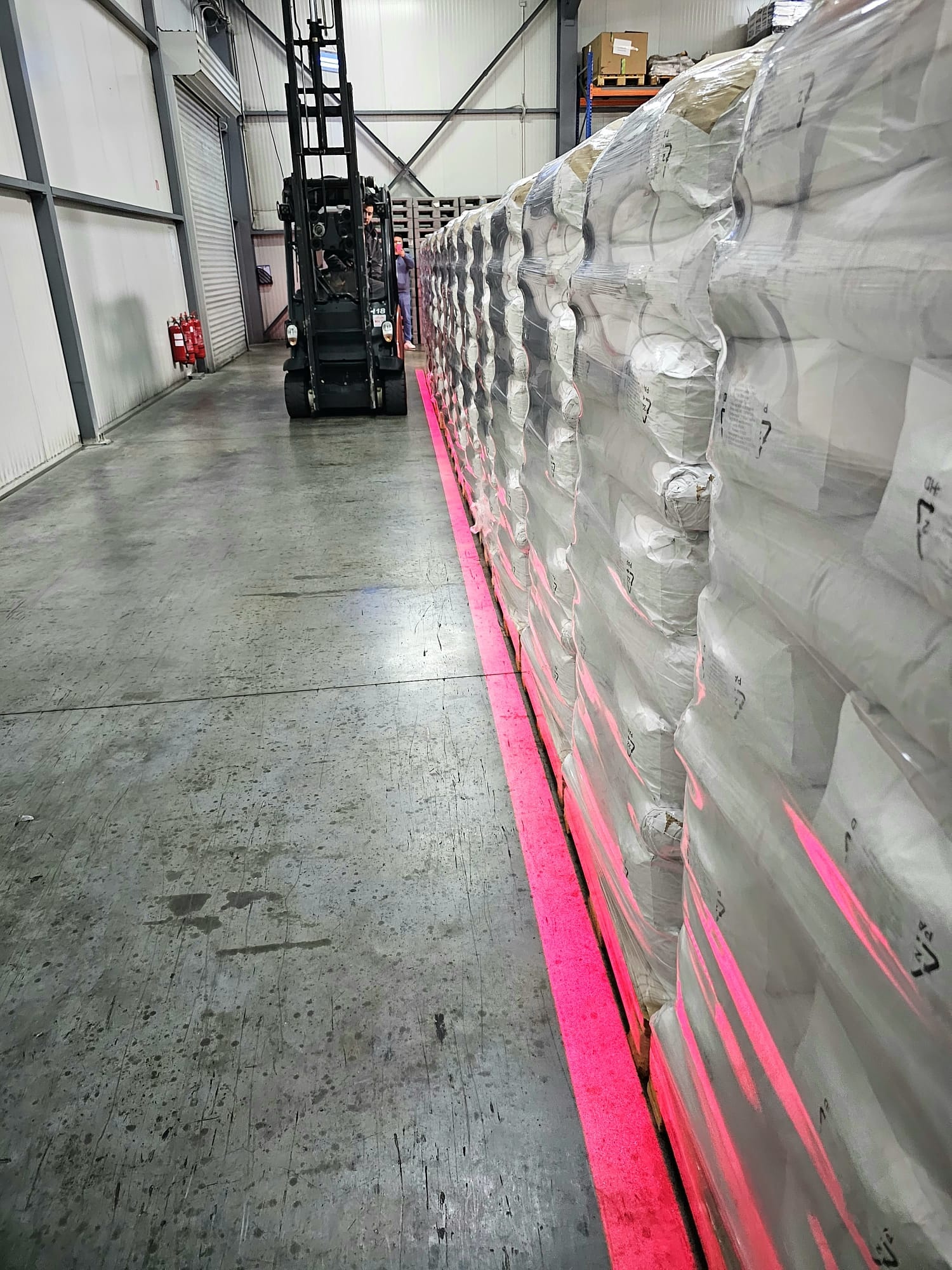

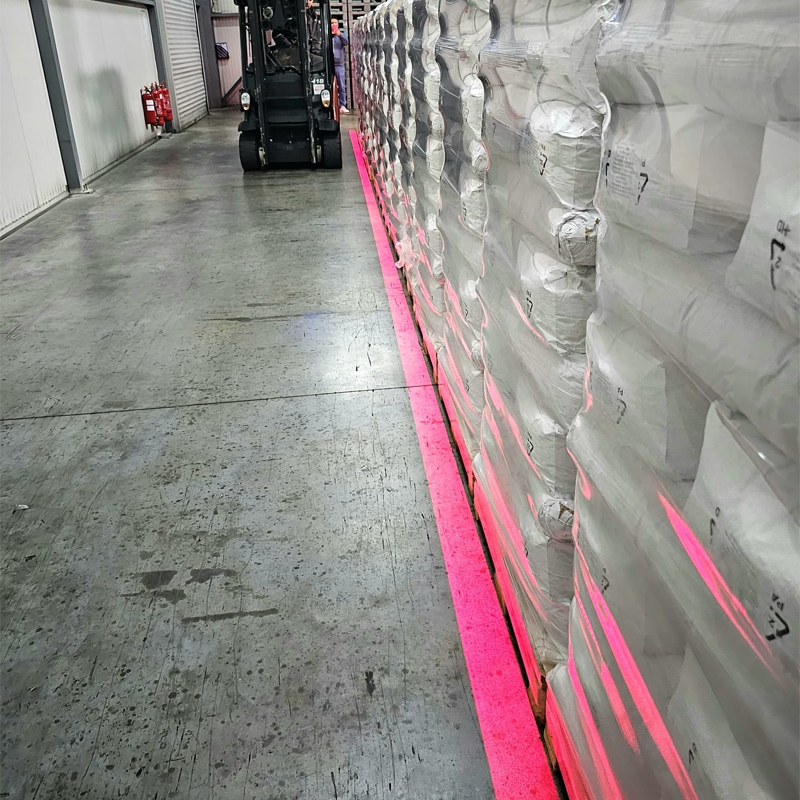

- Definition of pedestrian and forklift areas
- Securing of overhead cranes and zones
- Definition of areas for semi-trailer docks
|
Wavelength (nm) |
530(green), 638 (Red), 445(Blue) |
|
Laser power (mW) |
≤1000-1200 |
|
Laser class |
3R |
|
Technology |
Diode |
|
Operating temperature |
-40°C ~ +45°C |
|
Storage temperature |
-40°C ~ +85°C |
|
Cooling |
ТЕС |
|
Expected lifetime (MTTF) |
>20,000 hour |
Electrical specifications
|
Input voltage |
12 – 24V DC |
|
Input current |
2000 mA |
|
Temperature protection |
Yes |
|
|
|
|
Connection |
M12 4-pin industrial connector |
|
Power cable length |
5m/10m/15m/20m (on request) |
Optical specifications
|
Projection lens |
Angle 30 °, 45 °, 60 °, 90 °, 110 ° (on request) |
|
Focus |
manual (on request) |
|
Line thickness |
10 ~ 70mm |
|
DOE projection |
Circle, Cross, Grating, Square (on request) |
Mechanical specifications
|
Dimensions (mm) |
Ø80 x 175±5 |
|
|
|
|
Weight |
1.7 kg |
|
Protection rating |
IP67 |

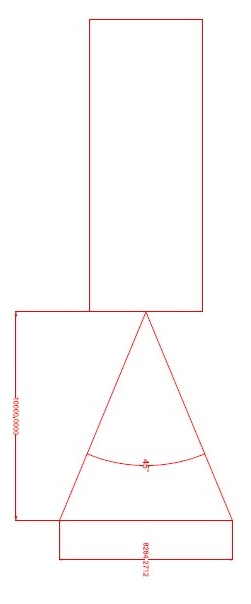

| Angle: | Distance | Line length approx. |
| 45° | 5m | 4.25m |
| 60° | 5m | 5.80m |
| 90° | 5m | 10m |
| 110° | 5m | 15m |
