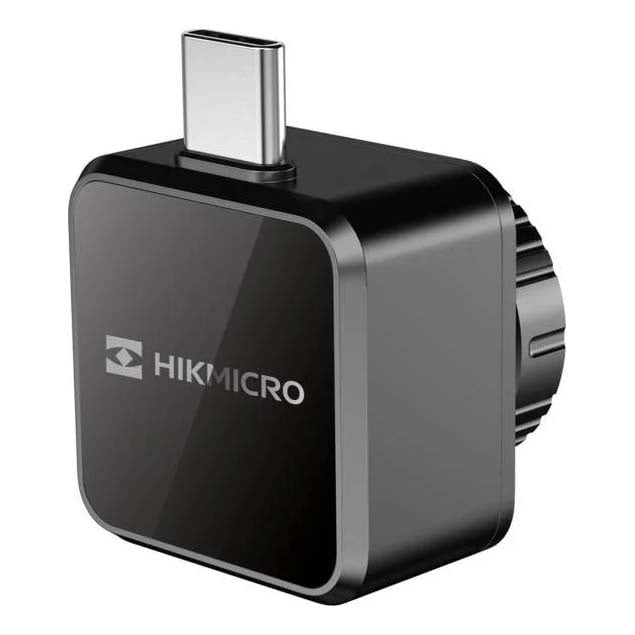

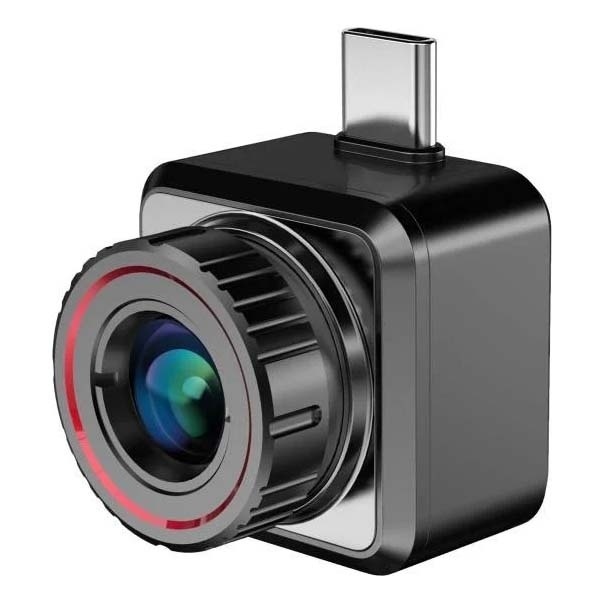

Hikmicro EXPLORER E20PLUS

EXPLORER is perfect to take with you when you go outdoors. Its 256x192, 12Âµm thermal camera, 9.7mm lens and an 18.1° x13.6° / 31.8mx23.8m @100m wide FOV make it a great choice for users to find and identify hidden targets in complex environments, such as birdwatching or nature observation during day or night camping trips.

The thermal imaging camera for the HIKMICRO E20 Plus phone offers the user:

Extremely compact dimensions that allow you to take the camera with you every day
Sensor with 256 x 192 resolution delivering impressive detail for the size of the device
Maximum detection range of up to 970 m for wide functionality
Wide field of view allowing you to cover a large area at close range
High refresh rate for observation comfort
Six observation modes for perfect adaptation to conditions
A dedicated mode designed for maximum effectiveness in bird watching
Compatible with most smartphones on the market thanks to the use of the USB-C port
The ability to capture images and record video in the phone's memory
Dust resistance according to the IP40 standard

Thermal Module
Image Sensor	VOx Uncooled Focal Plane Arrays
Max. Resolution	256 x 192
Frame Rate	50 Hz
Pixel Interval	12 Î¼m
Response waveband	8 Î¼m to 14 Î¼m
NETD	Less than 50 mK (@25° C,F#=1.0)
Lens (focal length)	9.7 mm
Detection Range	970 m
Field of View(H x V), Degrees / m @100m	18.1° 13.6° / 31.8m23.8m
Aperture	F1.0
Magnification	1 x -2x (Digital zoom 2x)
Image Display
Contrast Adjustment	Adjustable contrast from 0 to 100 by slider control
Brightness Adjustment	Adjustable contrast from 0 to 100 by slider control
Image Mode	Birdwatching/Red Hot/ White Hot/Black Hot/Rainbow/Ironbow
General
Power Consumption	360 mW
Protection level	IP40
Weight	26g
Dimension	26.6mm26.6mm27.2mm
Working Temperature	From -10 ° C to 50 ° C
Power Supply	USB Type-C interface
System
Record Video	Yes
Capture Snapshot	Yes
Digital Magnetic Compass	YES
PIP	Yes
Hot Track	Yes
EAN	6974004642402
