Leica Disto X3-1 P2P- Package with DST 360 and TRI120 Tripod

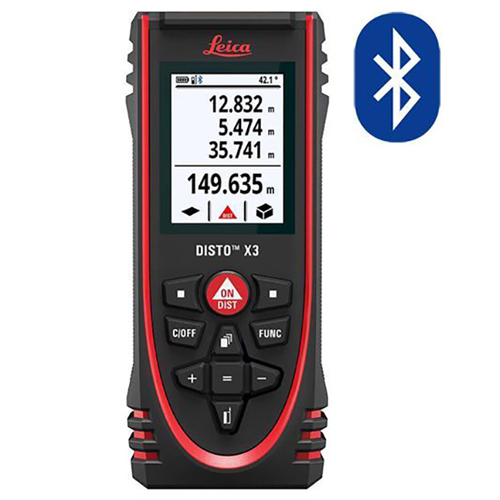

The rugged Leica DISTO™ X3 combines innovative measurement technologies with a constructive design
design and simple user interface. Together with the Leica DST 360, the X3 can be expanded
into a powerful 3D measuring station.

Robust
The precision measurement module is protected by robust rubber. The Leica DISTO™ X3 is therefore particularly
robust. It has been tested against drops from a height of 2 metres.

Protection class IP 65
The housing and keypad are specially sealed
against water jets and dust. Cleaning the Disto X3 under running water is no problem at all.

Tilt sensor and smart room
The combination of distance and inclination measurement allows horizontal distances to be determined simply and absolutely.
with absolute precision.

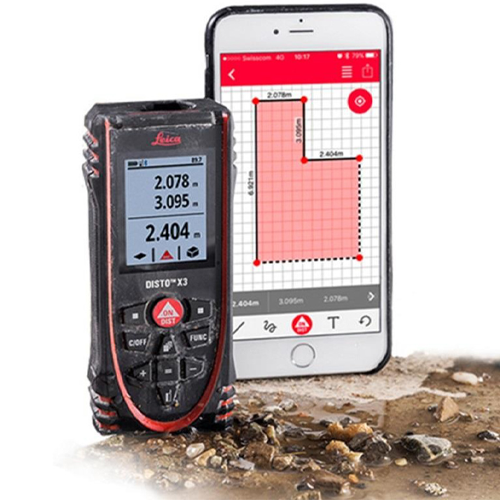

You can even use your measurement data to create realistic, true-to-scale floor plans.

Rotatable display
The display of the Disto X3 rotates automatically with the orientation of the device so that it is easy to read at any angle.

Extension of the Disto X3 with DST 360

Point-to-point measurements (P2P)
The DST 360 is a fantastic extension for your Leica DISTO™ X3 and X4. It transforms your
handheld distance meter into a real measuring station that allows you to measure distances between 2 points. Under
In combination with the Leica DISTO™ Plan App, you can draw true-to-scale maps that can be used in CAD programmes.
which are used in CAD programmes.

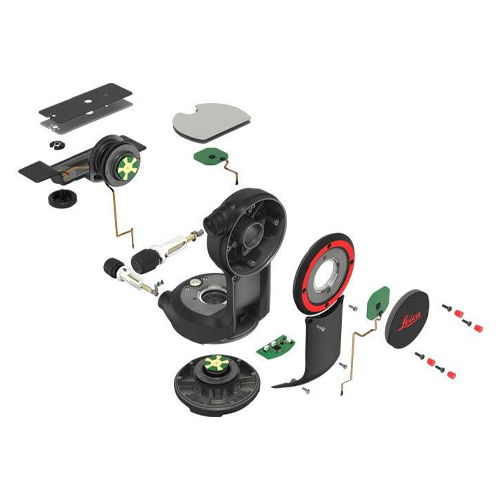

Metal construction
The Leica DST 360 is made entirely of metal.
This ensures maximum robustness and constant precision.

Precise aiming
With the fine adjustments of the Leica DST 360, you can accurately target measuring points in seconds.

Ready for the construction site

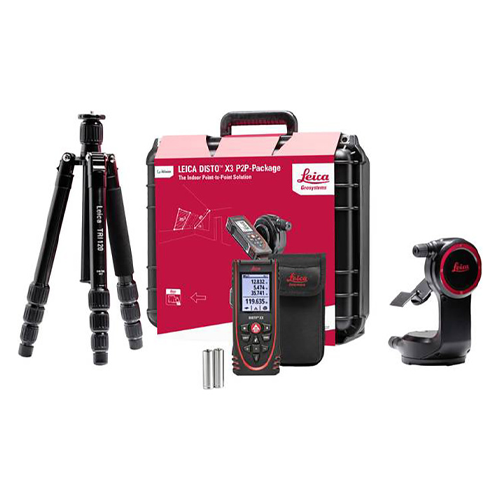

The Leica X3 P2P set is supplied with a DST 360 and a compact and stable TRI 120 tripod. Both are housed in a robust, waterproof case (IP 67) with space for your Leica DISTO™ X3. This means that all your equipment is safely stored in one place.

Leica DISTO™ X3 150m rangefinder with camera, Bluetooth® and IP65 protection

Specifications:

Accuracy (favourable conditions): ± 1 mm
Accuracy (unfavourable conditions): ± 2 mm
Range (favourable conditions): 0.05 to 150 m
Range (unfavourable conditions): 0.05 to 80 m
Smallest display unit: 0.1 mm
Units of measurement: m, ft, inch
Laser dot at distance ø : 6 / 30 / 60 mm | 10 / 50 / 100 m
Inclination tolerance of the laser beam: ± 0.2 °
Tolerance of the housing inclination: ± 0.2°
Inclination measuring range: 360
Display: LCD
Automatic switch-off of the laser: 90 seconds
Automatic switch-off device: 180 seconds
X-Range Power Technology: Yes
Tilt sensor: Yes
Camera zoom: NVT
Data transmission: Bluetooth® Smart v4.0
Bluetooth® power: 0.71 mW
Bluetooth® frequency: 2400 - 2483.5 MHz
Bluetooth® range: <10m
Windows software: Yes, free of charge
App for iOS and Android: Yes, free of charge
Support for smart rooms: Yes
Protection: IP65
Temperature range storage | operation: -25 to 70°C | -10 to 50°C
Memory: Last 30 measurements
Measurements with fully charged battery: up to approx. 4000
Battery life: up to approx. 8 hours
Weight: 184 gr
Laser class: 2
Laser type: 635nm <1 mW
Dimensions: 132 x 56 x 26 mm
Power supply: 2x AA battery
Warranty: 2 years

Specifications in combination with the DST 360 adapter:

Horizontal measuring range: 360
Vertical measuring range: -64° to > 90°.
Point-to-point accuracy: ± 2mm at 2m, 5mm at 5m, 10mm at 10m
