IDS Geo Radar GPR (Ground Penatrating Radar)

Concrete Scanner C-Thrue

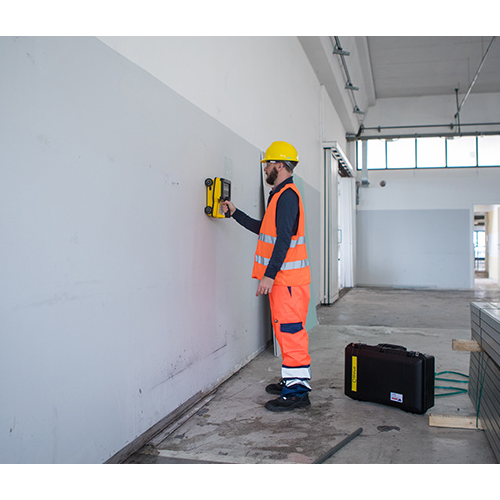

The concrete scanner C-thrue is an easy-to-use and robust solution to see through concrete structures and reveal true data that lead to optimal decision-making. The solution is suited for all construction sites and operations including building renovation, overpasses, monuments, bridges and tunnels surveys, as well as for detailed analysis of the original engineering project and comparison with the as-built structure.

C-thrue offers more flexibility with no limitations for your analysis requirements, thanks to a compact and light telescopic pole and an external controller that can be easily transported on site in challenging locations or conditions (e.g. under a deck, under ceilings, over floors, on walls, etc...).
The C-thrue external controller allows easier and faster data interpretation thanks to real-time data processing and representation of results in Augmented Reality for more efficient decision-making.

Features and Benefits:

• Complete and efficient structural inspection
Detection of both, first and second layer of rebars, PT cables, power cables and voids, thanks to the dual antenna polarisation.
• Safe drill in the surveyed structure
Rebar/void automatic insight capabilities that improve safety before cutting or drilling into the concrete.
• Fully-visible, multi-touch display
Data displayed on the screen are never obscured by the handle or the user’s hand.
• Simplified data interpretation
Optimal decision-making supported by visualisation of acquired data in 3D models.
• Increased data accuracy
Automatic positioning and navigation system.
• Advanced data visualisation
Augmented reality for 3D data visualisation and sharing across operators – in real time or intervals after acquisition.
• Flexibility everywhere
Lightweight, compact and transportable system for every user operations and construction sites.

C-thrue - Advanced GPR software to process data in the field

The C-thrue software makes possible what was a dream until now! With just the press of a button, the system automatically recognises and discriminates rebars and voids in concrete structures.

The software is specifically developed and suitable for in the field analysis:

• Automatic system calibration for an easy and quick set-up and start;
• Automatic recognition of rebars and voids in concrete structures;
• Digital on-site representation of data and targets through Augmented Reality;
• Real time visualisation of 3D radar tomography;
• Real time data sharing enabling double data visualisation and high resolution imaging both on product display and remote desktop connection to external device;
• Capability to mark targets within the software;
• Fully integrated with GRED HD post-processing software;
• Ability to export full survey report.

Antenna center frequency 2.0 GHz

Dimensions (length x width x height) 285mm x 200mm x 160mm
(11,2in x 8,6in x 6,3in)
Antenna polarisation Horizontal and Vertical

Weight 2.4 kg (5 lb) with battery
Number of antennas 4

Display 7.0 inches TFT multi-touch
Number of radar channels 2 (dual-polarised antennas)

Data storage 32 GB
Scan interval Up to 10 scans/cm

Battery Li-ion, 15V, 3.2Ah, 3-hour runtime
Depth range Up to 80 cm (up to 31.5 in.)
Positioning system “Virtual Pad” (based on 3 High safety -
Class 1 laser sensors with reflective bars) Paper Pad

ACCESSORIES SPECIFICATIONS ( Optie)

Remote Desktop kit: ( option) € 5750,-

• panasonic FZ-G1 Windows Tablet ( Toughpad)
• Telescopische verlengstok
• Remote desktop software
• Augmented Reality software

AC Power conduits detection EM sensor integrated (50/60 Hz)

C-thrue External Controller Real time remote control, Data processing and representation
of results in Augmented reality
Connectivity USB, Wi-Fi C-thrue Pole
• Telescopic aluminium pole
• 1, 8 m (6ft)
• Remote control buttons
Environmental rating and IP65 Compliant with mil-std-810g
