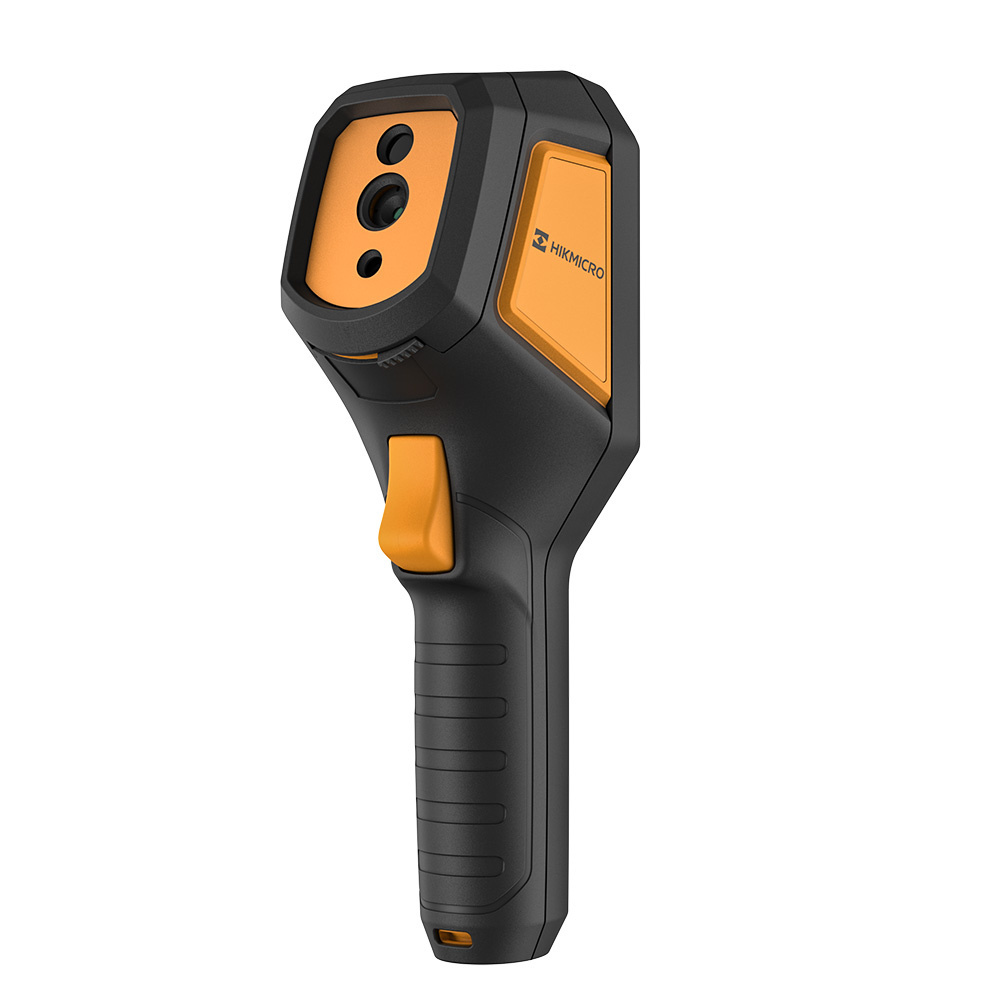

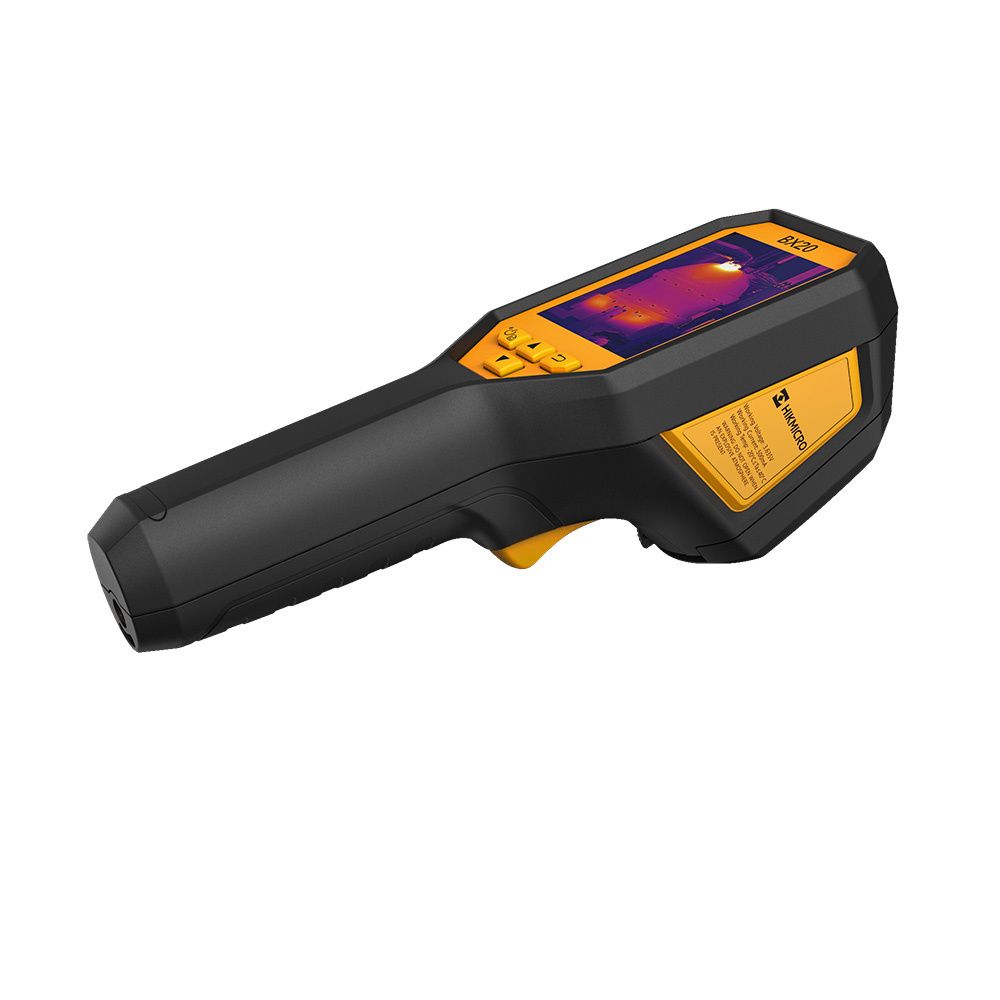

HIKMICRO BX20

Explosion-Proof Thermal Camera

HIKMICRO BX20 is certified to measure temperature in many explosive environments to quickly find invisible faults. It€™s equipped with a 256 x 192 resolution thermal detector and 2 MP visual camera. The temperature ranges from -20°C to 550°C, which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance in the decision and ensures safety.

Key Feature

 ATEX: II 3 G Ex ic IIC T6 Gc
 IECEx: Ex ic IIC T6 Gc
 Thermal resolution: 256 x 192 (49,152 pixels)
 NETD: < 40 mK (@ 25°C, F#=1.0)
 Temperature measurement range : -20°C to 550°C
 Accuracy: Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C and object temperature above 0°C
 Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
 25 Hz image frequency
 3.2'' LCD screen display
 Up to 6 hours continuous running
