ADA BASIS Auto levels magnification 20X
- Brand:
- ADA
- Article number:
- 117
- SKU number:
- BASIS
- Delivery time:
- 1 - 7 Days
€149,00
Excl. tax

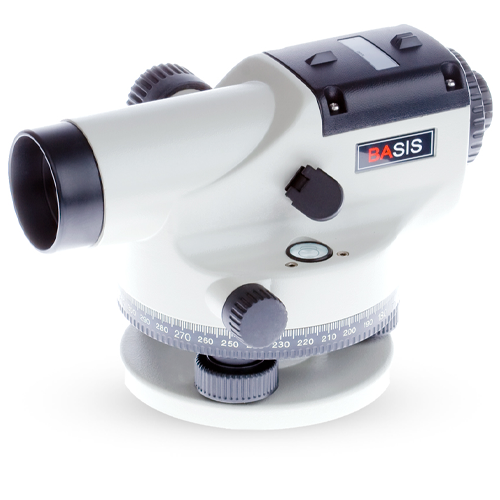

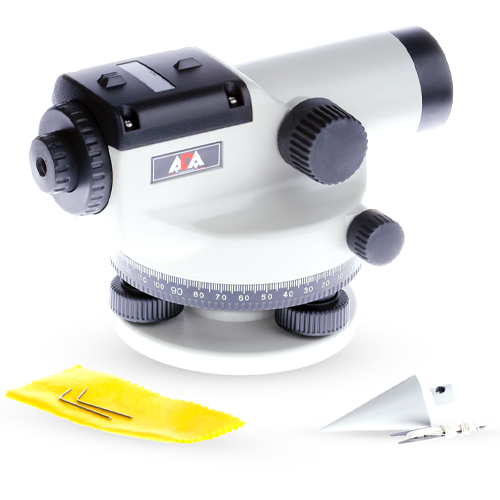

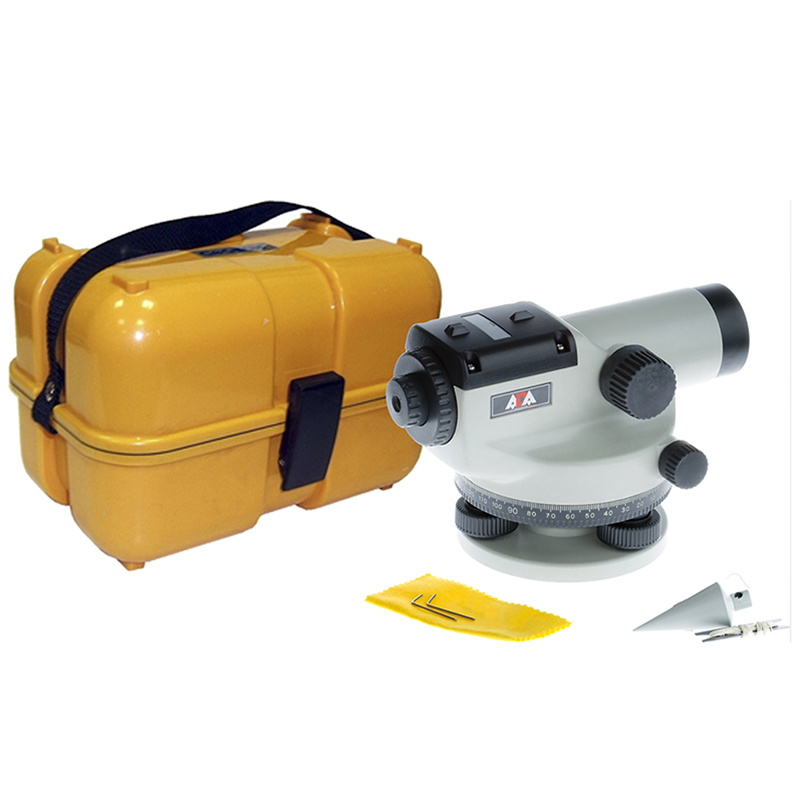

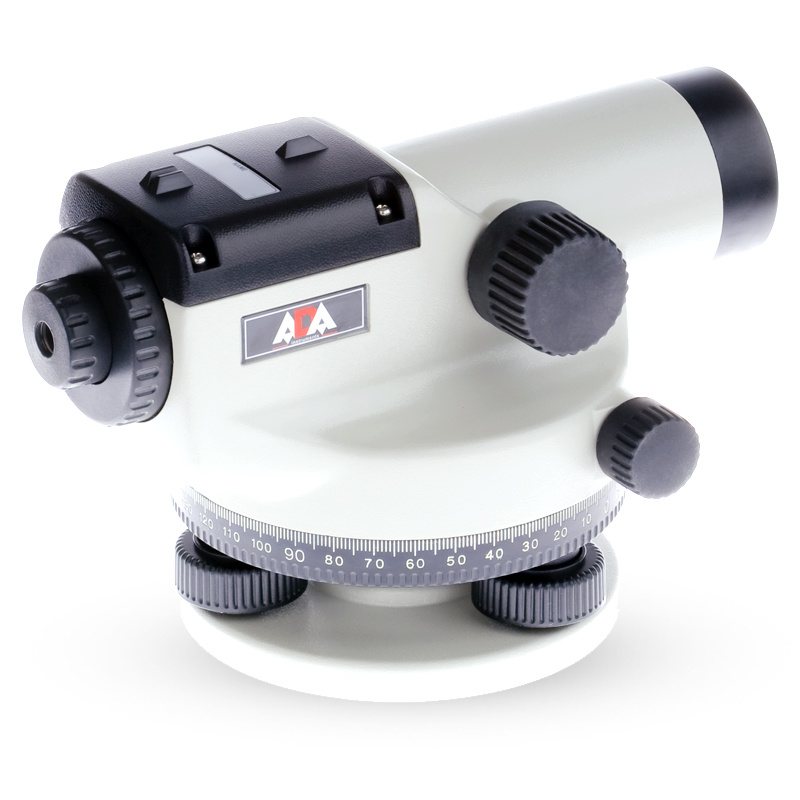

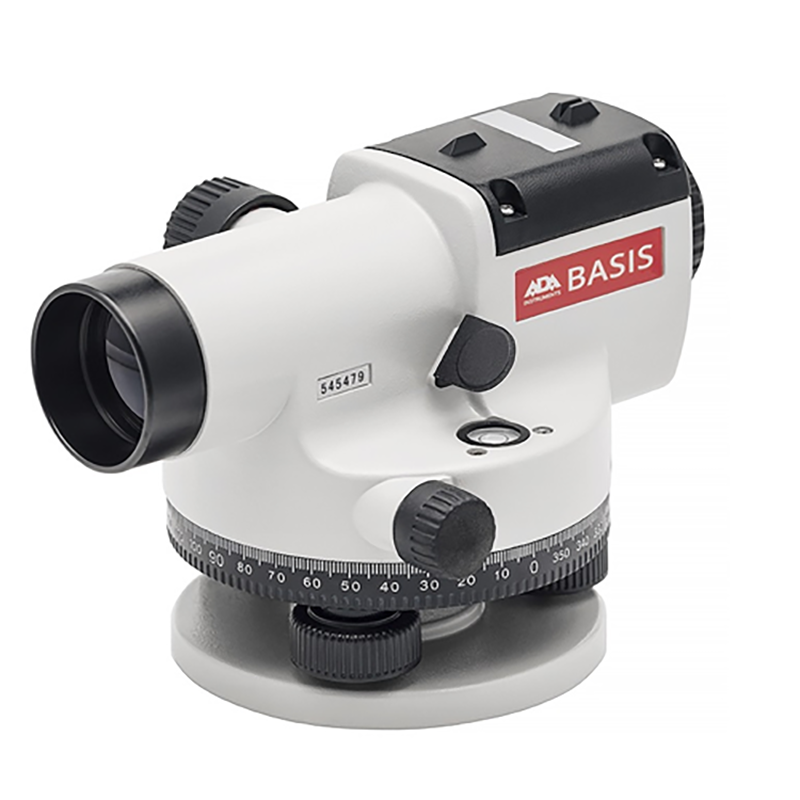

ADA BASIS Auto levels with magnification 20X
Auto level ADA BASIS 20X magnification
Auto level ADA BASIS is equipped with automatic compensator with magnetic damper. When the instrument is adjusted with circular level, mechanism of automatic compensation fixes the line of sight into the horizon.
The instrument is designed to provide stable work notwithstanding environment conditions, such as vibration and large fluctuation of temperature. Optical level has horizontal limb for angle measurement and stadia hairs of reticule can be used for distance measurements.
Auto level ADA BASIS is designed for general surveying, engineering and construction works.
Specifications
| Magnification | 20 х |
| Standard Error | 2,5 mm |
| Objective diameter | 38 mm |
| Min focusing distance | 0.3 m |
| Compensator working range | ± 15 |
| Compensator error | ± 0,3 / 1 |
| Compensator setting accuracy | ± 5 |
| Sensitivity of circular bubble | 8 / 2mm |
| Limb | 360° |
| Scale minimum value | 1° |
| Weight | 1.65 Kg |
| Working temperature °С | -25...+50 |
