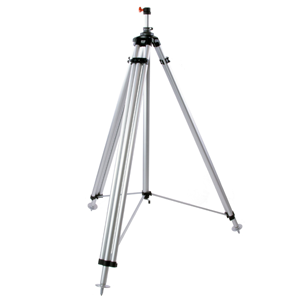

Heavy machine control Tripod MQH315S60-2 up to maximum height of 390 cm.

Heavy duty aluminum tripod with self-locking spindle drive at the bottom of the center column.

By which one can easily turn up the center column and does not need stairs to get to the pivoting center column when the tripod is at height.

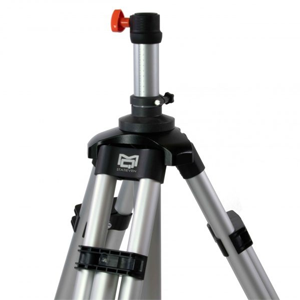

Rotatable central column of Ø 50mm with self-locking spindle drive under the stand.

The center column can be rotated from below by about 60 cm.

MQ Heavy Duty Tripod Spindle
- Type of foot: Pointed foot
- Min. height: 1835 mm
- Max height: 3900 mm
- Stroke: 600 mm
- Weight: 18.1 kg
- Max. load capacity: 15 kg
- Transport dimensions: 1990 x 250 x 250 mm

- The number 1 behind the Type means that this is with a flat leg (+ € 30, -)

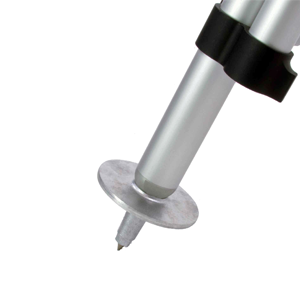

- The number 2 behind the Type means that this is with a point leg.

As an option, the stand is also available with wheels.

The tripod is available with several adapters on which the instrument can be screwed.

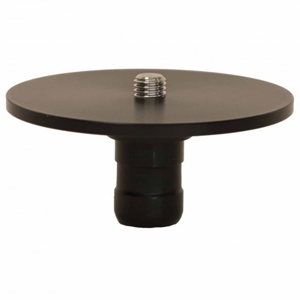

Adapter 206 is shown large (+€42,-) and is included.

This Adapter MQ206-S has a diameter of 140 mm, 5/8" thread.
