- Marke:
- Guide
- Artikelnummer::
- 1350333
- EAN number:
- 6970883551187
- Verfügbarkeit:
- Auf Lager (1)
- Lieferzeit:
- 1 - 4 Tage
€4.459,00
Hammer H3+ Wärmebildkamera mit einem Temperaturbereich von -40 bis 650 °C und einer Genauigkeit von ±2 °C oder ±2%. Die H3+ hat eine thermische Auflösung von388 x 288 pixels12μm und eine Bildschirmauflösung von 800x480.
Guide Hammer H3+
Intelligente Wärmebildkamera mit Autofocus
Mit einem eingebauten, selbst entwickelten, hochempfindlichen IR-Detektor, einer 8-MP-Kamera für sichtbares Licht und 5 Fokussierungsmodi hilft die Hammer-Serie, die hochpräzise Wärmebildkamera, die speziell für den industriellen Bereich entwickelt wurde, dem Benutzer, hochauflösende Bilder und Temperaturdetails des Ziels intuitiv zu betrachten, mit der klassischen „Hammer“-Form. 30Hz Infrarot-Bildrate für schnellen und genauen Zugriff auf mehr Temperaturdaten von bewegten Zielen, weit über das gleiche Niveau der Produkte.
384x288 IR Resolution
768x576 Super resolution
5MPVisible Light
30Hz Frame Rate
OTA Upgrade
High-sensitivity IR Detector
A new generation of self-developed infrared focal plane detectors with a resolution of 320x240 coupled with super-resolution reconstruction for high-quality imaging
30Hz IRGD Frame Rate
IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis
Wide-range Measurement with Rich Application Scenarios
Support auto-switching: -40℃ to 150℃, 0℃ to 650℃
Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen
OTA Upgrade for the Latest System Version
The device can be upgraded by connecting to the network.
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 384x288 @12μm | |||
| Super resolution | Yes, Upgrade to 768x576 | |||
| NETD | 45mK | |||
| Frame rate | 30Hz | |||
| Focal length | 10.5mm | |||
| Field of view | 25°×19° | |||
| IFOV | 1.13mrad | |||
| Min. object distance | 0.1m | |||
| D:S | 885:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 8x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 5 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance, dew point | |||
| Others | Customized physical button, Intelligent diagnosis, OTA update | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 4.3" LCD, touch screen, 800×480 | |||
| Image mode | IR, VIS, MIF, PIP | |||
| Color palettes | 15: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 5MP | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (64 GB) and external SD card (64 GB and up to 256 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info), up to 30 Hz (optional) for temperature analysis | |||
| External interface | Type-C, SD card slot, UNC ¼"-20 (Tripod mounting) | |||

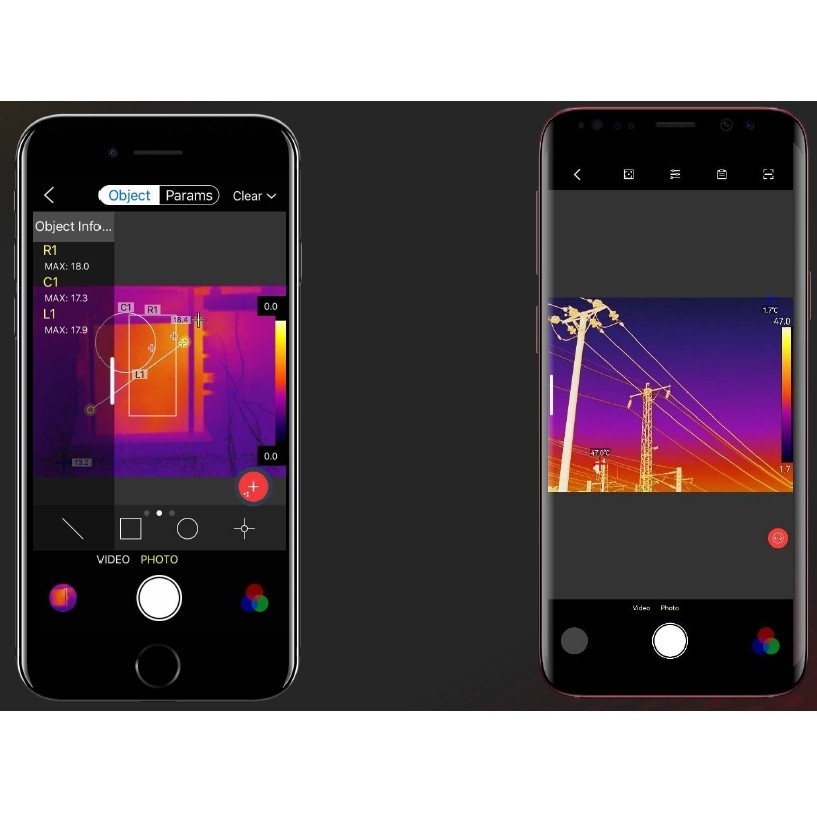

| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 5 hours | |||
| Charging mode | TYPE-C charging; PC/portable charger; Capable of charging while using | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -20°C to 50°C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Certification | CE, FCC, RoHS, KCC, Anatel, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator×2, Microphone, Speaker, Electronic Compass, GPS | |||
| Weight | 1.15kg (with battery) | |||
| Size | 292×125×125mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device (with lens), Lens front and back cover, Lithium-ion battery (2 pcs), Power adapter, Adapter plug (for China, US, UK, Australia and Europe), Type C to C Charger Cable, TYPE-C USB cable, Ethernet Cable, TYPE-C to RJ45, SD card (64 GB) , Wrist strap, Shoulder strap, Safety box, Packaging list, Quick Start Guide, Data download card (analysis software & user manual), Certificate of approval, Factory certificate | |||
| Options | Desktop charger, Battery, Optional lens (44°, 15°, 7°), Carrying bag, Tripod, Bluetooth earphone, Docking station | |||
