- Marke:
- Leica
- Artikelnummer::
- 869073
- Verfügbarkeit:
- Auf Lager (1)
- Lieferzeit:
- 1 - 4 Tage
€4.330,00

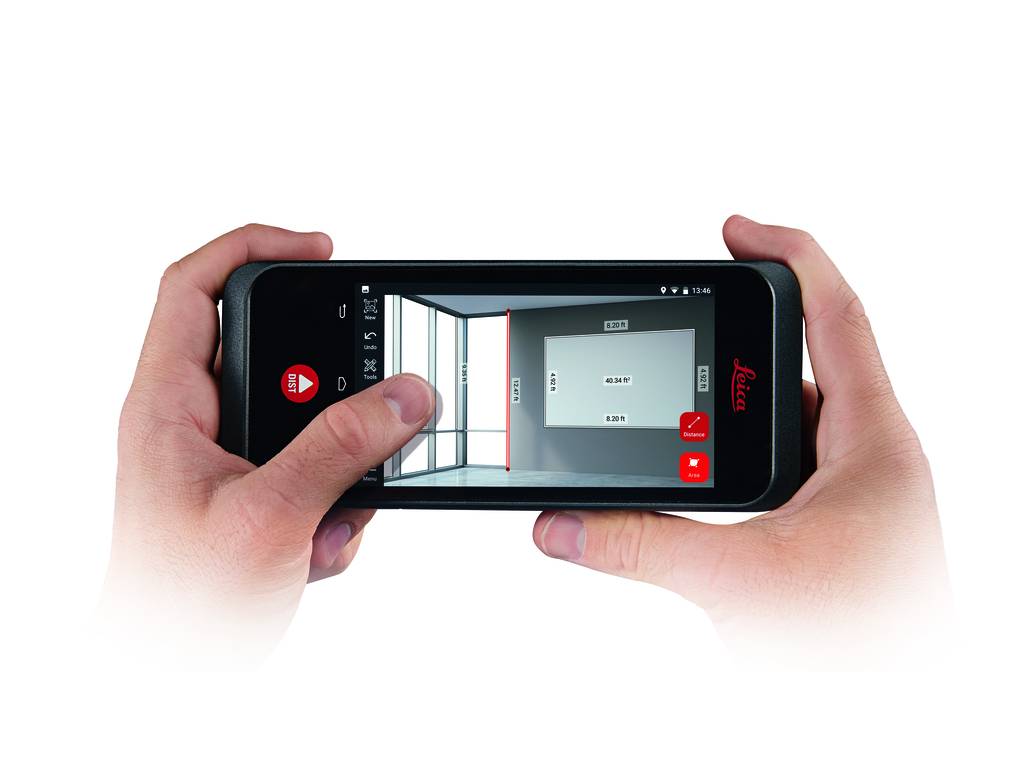

Leica BLK3D, Messung in 3D in einem Foto
BLK3D
Durch die Kombination von Messsensorik, Software und peripherer Datenverarbeitung ist die
BLK3D ermöglicht In-Image-Messungen mit professioneller Genauigkeit.
Jedes mit dem BLK3D aufgenommene Bild ist eine vollständige und genaue 3D-Aufnahme.
Dank der Edge-Funktionen sind keine Netzwerkverbindungen und/oder Cloud-Dienste mehr erforderlich,
damit Fachleute in ihrer täglichen Arbeit schneller Entscheidungen treffen können
Arbeitsabläufe - ob bei der Erstellung von Grundrissen und der Kalkulation von Gebäudeinstallationen
oder die Dokumentation der Konstruktion
Fortschritt und die Erstellung der Bestandsdokumentation der Anlage.
Die Leica BLK3D Mobile App. ist der perfekte Partner für den Leica BLK3D Imager.
Mit seiner intuitiven Benutzeroberfläche, den Echtzeit-Messfunktionen - selbst für Anfänger
Benutzer, leistungsstarke Organisationsfunktionen.
Die BLK3D-Desktop-Software ermöglicht den nahtlosen Import von 3D-Bildern.
Der Datenimport erfolgt als Plug & Play.
Zusätzlich zu den bekannten Messfunktionen im Bild ermöglicht die 3D-Modell-Option die vollständige
3D-Modelle aus einem BLK3D-Bild.
Leica BLK3D Mobile Set bestaande uit:€4877,-
-Leica BLK3D
-1yr BLK3D Mobile SKETCH & Doc.Subscr.
-1yr.BLK3D Mobile Publisher Subscr.
-BLK3D rugged Case
-BLK3D screen protector glass foil
-BLK3D LED Lamp
-BLK3D battery and Battery charger
-USB Power adapter with micro-USB cable
Leica BLK3D DST360 Mobile Set bestaande uit:€5825,-
-Leica BLK3D
-1yr BLK3D Mobile SKETCH & Doc.Subscr.
-1yr.BLK3D Mobile Publisher Subscr.
-BLK3D rugged Case
-BLK3D screen protector glass foil
-BLK3D LED Lamp
-BLK3D battery and Battery charger
-USB Power adapter with micro-USB cable
-Leica DST360 for BLK3D
-Leica Tripod TRI120
Specifications
| Dimensions (H x W x D) | 180.6 x 77.6 x 27.1 mm (7.11 x 3.06 x 1.07 in) |
| Weight (with rechargeable battery) | 480 g (17 oz) |
| Temperature range | Storage: -25 to 60 °C (-13 to 140 °F), Operation: -10 to 50 °C (14 to 122 °F) Charging: 0 to 40 °C (32 to 104 °F) |
| Tripod adapter | Supports 1/4-20 UNC screw adapters |
Technology |
|
| Operating system | Android 7.1.2 (Nougat) |
| Processor (with integrated GPU) | Snapdragon 820E QuadCore (2.35 GHz) |
| RAM Memory | 4 GB |
| Real-time Processor | STM32F446 |
| Screen | 5.0” IPS, HD 720x1280 LCD capacitive multi-touch screen, chemically strengthened, brightness: 450 cd/m2 |
| Stereo camera | Pixels: 2 x 10 MP (15.8 cm diagonal base line), Field of view: 80°, Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1), Aperture: F3.0 |
| EDM camera | Pixels: 2 MP, Field of view: 14° |
| I/O | USB Type-C 1.0 for data transfer and charging (waterresistant), integrated speaker and microphone |
| Keyboard | Three physical buttons (Power, Laser/Photo capture, Photo capture), four touch buttons (Back, Home, Recents, Laser/Photo capture) |
| Additional sensors | Compass, 3D accelerometer and 3D gyroscope |
| Laser class | 2 |
| Laser type | 655 nm, 0.95 mW |
|
Storage |
|
| Internal storage | 64 GB (equals 14000 single-shot or 5000 multi-shot 3D images) |
|
Communication |
|
| Bluetooth® Smart | Bluetooth v4.1 and v2.1, Radiated power: 1.78 mW (BLE) Radiated power: 10.00 mW (BT classic), Frequency: 2402-2480 MHz |
| Wireless LAN | Standard: 802.11 b/g/n, Radiated power: 6.31 mW Frequency: 2412-2472 to 2412-2462 MHz |
| GPS | A-GPS and GLONASS |
|
Power Management |
|
| Battery | Rechargable battery pack Li-ion, (3.80 V, 3880 mAh, 14.7 Wh)F |
| Power management | AC adapter (input: 100-240 V AC), External charger (input: 100-240 V AC) (optional) |
| Charge time | < 3.5 h (with AC adaptor), < 5h (with optional external charger) |
| Operating time | Typical capture: 4h / 220 multi-shot captures 1 Continuous capture: 2.5 h /1000 single-shot captures1 Laser measurements: 6.5 h / 9500 laser measurements Auto power off after 3 h in sleep mode |
|
3D Image Distance Measurement |
|
| 2D in-picture accuracy 2/3 | ± 3 mm (0.12 in) |
| 3D in-picture accuracy 2/3 | ± 6 mm (0.24 in) |
|
Laser Distance Measurement |
|
| Accuracy with favourable conditions4 | ± 1.0 mm (0.04 in)6 |
| Accuracy with unfavourable conditions5 | ± 2.0 mm (0.08 in)6 |
| Range with favourable conditions4 | 250 m (820 ft) |
| Range with unfavourable conditions5 | 120 m (394 ft) |
| Smallest unit displayed | 0.1 mm (1/32 in) |
| X-Range Power Technology™ | yes |
| Ø laser point at distances | 6 / 30 / 60 mm (10 / 50 / 100 m) |
|
Tilt Measurement |
|
| Measuring tolerance to laser beam7 | ± 0.2° |
| Measuring tolerance to housing7 | ± 0.2° |
| Range | 360° |
|
P2P Measurement with DST 360 (Optional) |
|
| Working range vertical sensor | -64° to > 90° |
| Accuracy vertical sensor up to | ± 0.1° |
| Working range horizontal sensor | 360° |
| Accuracy horizontal sensor up to | ± 0.1° |
| Tolerance P2P function at distances (combination of sensors and distance measuring) approx. | ± 2 mm / 2 m, ± 5 mm / 5 m, ± 10 mm /10 m° |
| Levelling range | ± 5° |
|
Software Options Overview |
|
| BLK3D Mobile (included) | Reality Capture, Laser, Organiser, 3D Image export to pdf and jpg |
| Sketch & Document Option (optional) | Sketch Plan , P2P Measure, Smart Room, Plan export to pdf, jpg, DXF and DWG (2D/3D/raw) |
| BLK3D Desktop Base (optional) | Organiser, Measure, working with plans |
| 3D Model Option (optional) | 3D Modelling on 3D Images |
| Minimum system requirements | Windows 7, 8.1, 10 with 64-bit; 6 GB RAM |
De BLK3D wordt geleverd met:
- Lithium-ion Accu
- Lader met UBC aansluiting
- Quick Guide
- Microfiber cloth
- nek koord
- calibratie certificaat
